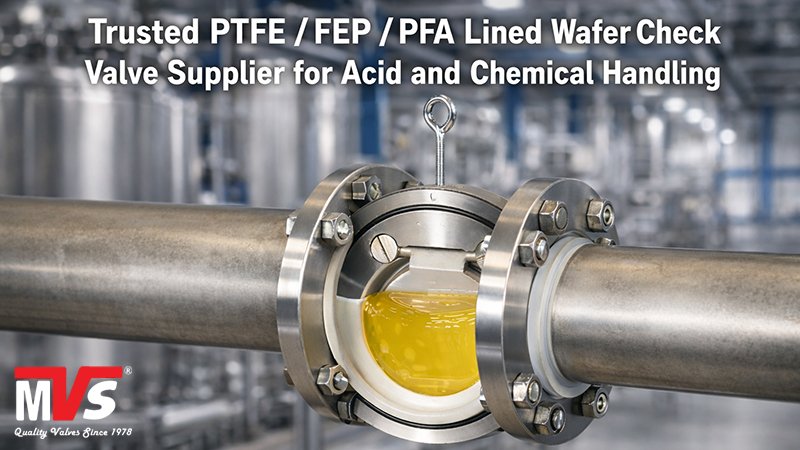

Trusted PTFE / FEP / PFA Lined Wafer Check Valve Supplier for Acid and Chemical Handling

March 10, 2026

Key Takeaways

Wafer check valves with PTFE, FEP, or PFA linings excel in acid resistance and compact installations.
Single plate wafer type check valve designs minimize pressure loss for efficient pump protection.
Choose SS 316 single door wafer check valve for chloride environments or carbon steel for cost-effective strength.
Spring-loaded options in wafer swing check valves help prevent water hammer in dynamic flow conditions.
Mayur (Valves) System Private Limited provides API 6D-compliant valves with custom linings for diverse chemical processes.

In chemical processing plants across India, a single backflow incident can halt production, corrode pipelines, and cost thousands in downtime. Wafer Check Valves with PTFE, FEP, or PFA linings stand as the critical barrier, preventing reverse flow in acid and chemical lines while resisting the harshest corrosives. Mayur (Valves) System Private Limited leads as a trusted supplier, delivering these compact, high-performance valves that protect your operations.

Understanding Wafer Check Valves in Corrosive Environments

Wafer Check Valves fit neatly between flanges in a sandwich-style configuration, saving space and simplifying installation in tight pipeline setups. Their thin profile makes them ideal for high-pressure systems where traditional valves would add bulk. Mayur (Valves) System Private Limited specializes in PTFE / FEP / PFA Lined Wafer Check Valve models, where the lining shields the valve body from aggressive acids, alkalis, and solvents that degrade unprotected metals.

These valves operate on a simple principle: a disc or plate swings open under forward flow and closes tightly against a seat to block backflow. In acid handling, the lining—PTFE for broad chemical resistance, FEP for flexibility in varying temperatures, or PFA for superior purity—prevents leaks and extends service life. Engineers in chemical plants value this reliability, as it minimizes maintenance calls and supports continuous operation.

Key Design Features of Lined Single Plate Wafer Type Check Valve

The single plate wafer type check valve from Mayur (Valves) System Private Limited features an eccentric-mounted hinge pin and precision-engineered disc seat for positive sealing. This wafer style single disc swing type design allows minimal pressure drop, vital for pump discharge duties where efficiency matters. Available in swing short wafer carbon steel check valve and swing short wafer stainless steel check valve variants, they conform to API 6D and ASME B16.10 face-to-face standards.

SS 316 single door wafer check valve options provide enhanced corrosion resistance for chloride-heavy environments, while the carbon steel wafer body thin type single plate wafer check valve offers strength at a practical cost. The PTFE / FEP / PFA lining coats critical surfaces, blocking permeation even under vacuum conditions common in chemical transfer lines.

Advantages of Wafer Swing Check Valve for Chemical Applications

A Wafer Swing Check Valve excels in horizontal or vertical pipelines, with optional spring-loaded mechanisms for rapid closure that combats water hammer. This proves essential in Wafer Check Valves used for acid circulation, where sudden flow reversals could damage pumps. Mayur (Valves) System Private Limited crafts the Stainless-Steel Wafer Body-Thin Type Single Plate Wafer Check Valve to handle temperatures up to 200°C and pressures to 16 bar, matching petrochemical demands.

Compactness reduces weight by up to 70% compared to flanged alternatives, easing handling in shipbuilding or fertilizer plants. The wafer style single disc short pattern API 6D check valve integrates seamlessly into existing systems, requiring no special gaskets thanks to the lining’s self-sealing properties.

Single Disc Wafer Check Valves Across Industries

Single Disc Wafer Check Valves from Mayur (Valves) System Private Limited serve diverse sectors. In the chemical and petrochemical industry, they manage aggressive media like sulfuric acid without degradation. The crude oil and natural gas sector rely on their low-leakage performance for compressor outlets.

Food and beverage plants use them for hygienic CIP lines, while marine and shipbuilding applications benefit from saltwater resistance. Steel and metal processing, pharmaceutical and biotechnology, HVAC and building services, fertilizer plants, polymer production, water and wastewater treatment, pulp and paper, automotive and paint chemical manufacturing, cosmetics and personal care, thermal power generation, mining and mineral processing, environmental biogas renewable energy, and cement and construction all leverage these Wafer Check Valves for reliable non-return flow control.

Material Selection: PTFE, FEP, and PFA Linings Explained

PTFE lining delivers unmatched chemical inertness, ideal for hydrofluoric acid handling where other materials fail. FEP offers similar resistance with better crack propagation tolerance, suiting cyclic thermal loads in polymer production. PFA combines PTFE’s purity with FEP’s processability, perfect for pharmaceutical flows needing FDA compliance.

Mayur (Valves) System Private Limited selects these linings based on media compatibility, molding them directly onto swing short wafer carbon steel check valve or SS 316 single door wafer check valve bodies for a monolithic seal. This approach avoids delamination risks, outperforming spray-coated alternatives.

Installation and Maintenance of Wafer Check Valves

Proper orientation—disc swinging downward in horizontal lines—maximizes single plate wafer type check valve performance.Torque-free bolting between ANSI 150# flanges is advised by Mayur (Valves) System Private Limited, with the lining compressing to create a bubble-tight seal. No field adjustments needed, the design self-centres.

Maintenance involves periodic disc inspection via quick-release covers. In Wafer Style Single Disc Short Pattern API 6D Check Valve models, replaceable seats extend usability. Clean with compatible solvents to preserve PTFE / FEP / PFA integrity, avoiding abrasives that could scratch the lining.

Performance Standards and Testing Protocols

All Wafer Check Valves from Mayur (Valves) System Private Limited undergo hydrostatic shell and seat tests per API 598, plus lining thickness verification via ultrasonic gauging. Compliance with ASME, BS, and DIN ensures global interchangeability. For chemical duty, vacuum resistance testing simulates real-world suction conditions.

Spring-loaded Wafer Swing Check Valve variants crack open at low differentials (0.05 bar), preventing slam in pulsating flows. This rigorous validation builds confidence for critical installations.

Major Valve Body Materials, Compositions & Applications

Valve body materials form the backbone of any Wafer Check Valve‘s durability, especially in corrosive acid and chemical handling where Mayur (Valves) System Private Limited excels as a supplier. Common options like ASTM A351 gr. CF8M 316 Stainless Steel offer molybdenum-enhanced resistance to pitting from chlorides and halides, alongside superior tensile strength at elevated temperatures, making it ideal for the SS 316 single door wafer check valve in petrochemical and pharmaceutical lines. ASTM A216 gr. WCB Carbon Steel, often paired with CR13SS or 316SS trim and external weatherproof coatings, suits standard services in swing short wafer carbon steel check valve setups for fertilizer plants and water treatment, balancing cost and robustness.

For colder conditions down to -46°C, ASTM A216 gr. LCB mirrors WCB’s properties while enabling low-temperature ratings in single plate wafer type check valve applications like LNG handling. Low-carbon variants such as ASTM A351 gr. CF3M 316L and ASTM A351 gr. CF3 304L prevent carbide precipitation during welding, supporting as-welded installations in Wafer Swing Check Valve models for field-heavy industries like pulp and paper or marine shipbuilding. General-purpose ASTM A351 gr. CF8 304 Stainless Steel provides non-magnetic corrosion resistance, though caution applies in high-chloride environments prone to stress cracking, while advanced alloys like ASTM A351 gr. CN7M Alloy 20 deliver exceptional sulfuric acid tolerance and fabricability for chemical processing Wafer Check Valves. High-performance choices including ASTM A296 gr. CW-12M Hastelloy C resist oxidizing media and pitting in welds, and ASTM A296 gr. M-35 Monel excels against saltwater and chemicals in mining or thermal power setups. Mayur (Valves) System Private Limited sources from broader categories—Carbon Steel, Low Temperature Carbon Steel, Low Alloys, 13%Cr Stainless Steel, Austenitic Stainless Steel, Precipitation Hardening Stainless Steel, Duplex & Super Duplex Stainless Steel, Bronze, Ni Alloys (825, 625, 718), and Titanium—ensuring PTFE / FEP / PFA Lined Wafer Check Valve bodies match exact process demands across crude oil, food beverage, steel metal, and more, with linings augmenting base material resilience for long-term reliability.

Global Reach of Indian-Made Wafer Check Valves

Wafer Check Valves manufactured in India by trusted suppliers like Mayur (Valves) System Private Limited demonstrate exceptional versatility, serving a vast global market across diverse industries and standards. These PTFE / FEP / PFA Lined Wafer Check Valve solutions reach Australia, the United States, Canada, Mexico, and throughout the European Union including Belgium, Germany, the Netherlands, Spain, France, the UK, Denmark, Sweden, Finland, Poland, Austria, the Czech Republic, Romania, and Italy.

In the Middle East, they support critical operations in the United Arab Emirates, Qatar, Saudi Arabia, Oman, Bahrain, and Kuwait, where single plate wafer type check valve designs handle high-temperature petrochemical flows reliably. African nations such as Egypt, Nigeria, Kenya, South Africa, Morocco, Tunisia, Ethiopia, Uganda, and Tanzania rely on these compact wafer style single disc swing type valves for water treatment and mining applications, proving their adaptability to varied plant conditions.

Why Choose Mayur (Valves) System Private Limited

Mayur (Valves) System Private Limited stands out through decades of specialized manufacturing in Mumbai, focusing solely on lined valves for corrosive services. Their in-house moulding and CNC machining deliver linings 3mm thick—thicker than competitors—for zero permeation in acid lines. Clients choose them for on-time delivery, custom port sizes from DN50 to DN300, and responsive support that resolves field issues within 24 hours. Unlike generic suppliers, Mayur (Valves) System Private Limited tailors PTFE / FEP / PFA Lined Wafer Check Valve to exact process data, backed by material certificates and performance warranties. This partnership approach has earned loyalty from India’s top chemical processors, proving their commitment to durability over volume sales.

Conclusion

Lined Wafer Check Valves provide essential backflow protection in acid and chemical systems, with compact designs and robust materials like PTFE, FEP, and PFA that withstand corrosion. Mayur (Valves) System Private Limited offers proven solutions across industries, from petrochemicals to wastewater, ensuring minimal downtime and optimal flow control. Their single plate wafer type check valve and variants deliver API-compliant reliability in demanding setups.

For deeper insights into Wafer Check Valves or tailored quotes on PTFE / FEP / PFA Lined Wafer Check Valve, call us at +91 9998920298 or email mayurvalves@gmail.com.
