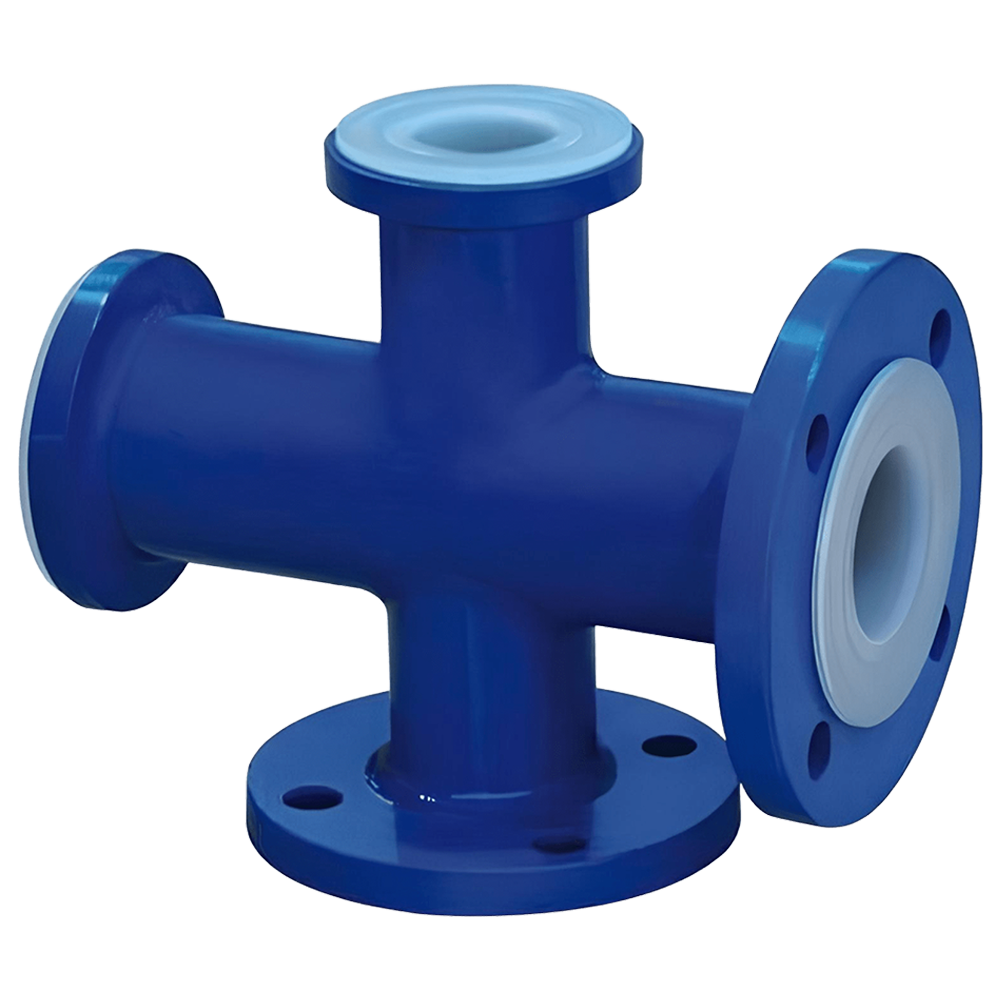

PTFE Lined Unequal Cross
PTFE Lined Unequal Cross Manufacturer
PTFE Lined Unequal Cross fittings by MVS Valves are specifically engineered to handle aggressive chemicals and high-purity fluids with unmatched reliability and structural strength. These fittings offer a dependable solution for multi-directional flow control where the outlet dimensions differ from the main line, making them ideal for complex piping systems. Designed to ensure leak-free service, each unit features a high-performance PTFE or PFA lining that resists corrosive attack while maintaining high mechanical stability across varying pressures and temperatures. These unequal crosses are available in sizes ranging from ½″ to 24″ (DN 15–600) and are pressure-rated to ANSI Class 150/300 or PN 10–25. Capable of operating between –40 °C and +230 °C, they are fully vacuum-rated and meet all relevant global standards including ASTM F1545, ASME B16.9, and ISO specifications.
Mayur (Valves) System Private Limited, an ISO 9001:2015-certified company, has been a trusted PTFE Lined Unequal Cross manufacturer and exporter since 1978. We export to 40+ countries worldwide, focusing on consistent quality, timely delivery, and a smooth customer experience. Our PTFE Lined Unequal Cross products are designed for dependable flow distribution and reliable performance in demanding industrial applications. We serve clients across Europe, North America, the Middle East, Southeast Asia, Russia, and other international markets with practical solutions and technical expertise.
MVS Valves produces the PTFE Lined Unequal Cross in robust materials such as ductile iron, cast steel, and stainless steel castings up to 150 NB. For larger sizes, fabricated versions are provided to ensure dimensional integrity and customized compatibility. Customers can request versions with one or two reduced bore branches depending on the application’s flow requirement. We also offer PFA lined reducing crosses with either virgin liner for ultra-clean environments or anti-static liners to prevent static buildup, especially in volatile process lines. As a trusted PTFE Lined Unequal Cross Manufacturer, MVS Valves ensures every component is built with precision and durability to withstand the toughest industrial environments.
Specification
| Specification | Details |
|---|---|
| Size Range | 25 mm to 300 mm |
| Type | Unequal Reducing Cross (with one or two reduced bore branches) |
| End Connection | Both Sides Fixed Flanges – Rotating – Fixed On/Off Centres |
| Flange Dimensions | DIN PN10/16, BS 10, ASME 150 / 300, Mixed |
| Flange Standard | As per ANSI B16.5 / B16.42 |
| Face-to-Face | As per ANSI B16.5 Class 150 |
| Lining Material | Moulded FEP, PFA |
| Lining Options | PVDF, PP, HDPE |
| Lining Thickness | Minimum 3.5 mm / 6.0 mm overall (±1.0 mm Tolerance) |
| Lining Spark Test | 20 KVDC After Lining |
| Hydraulic Test | 29 Kg/cm² After Lining |
| Special Geometry | Non-standard dimensions; sizes above 6″ fabricated from pipe |
| Optional Flange Drilling | DIN 2632 / 2633, BS 10 Table D, E, F (on request) |
Material of Construction
| Body Materials | Steel Fabrication – ASTM A234 Gr.WPB Ductile Iron GGG40.3 / ASTM A395 Cast Steel ASTM A216 Gr. WCB Stainless Steel ASTM A312 TP 304 / 316 (SCH-40) |
| Flange Materials | IS 2062 Plates ASTM A105 Stainless Steel CF8 (SS 304) / CF8M (SS 316) |
| Liner Types | Virgin PTFE or Anti-Static (Static Dissipating) PTFE |
| Design Features | Cast up to 150 NB size; above that fabricated Available with one or two reduced branches Rotating flanges optional |
| Extras | Earthing Studs / Lugs, Vent Extensions |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
PTFE Lined Unequal Cross
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a PTFE lined unequal cross?
A four-way fitting with one or two branches of reduced bore, lined throughout with moulded FEP or PFA. It lets a smaller take-off and a full-bore run share a single intersection, instead of building the same arrangement from a tee plus a reducer plus extra flange joints. Up to 150 NB it is cast; above that it is fabricated from pipe.
Which body, flange and liner materials are available?
Body in steel fabrication to ASTM A234 Gr. WPB, Ductile Iron GGG40.3 / ASTM A395 or cast steel. Flanges from IS 2062 plate, ASTM A105, CF8 (SS 304) or CF8M (SS 316). Lining in moulded FEP or PFA, with PVDF, PP and HDPE options, at a minimum 3.5 mm, 6.0 mm overall. Liner types are virgin PTFE or anti-static (static dissipating) PTFE.
What sizes and test standards apply?
25 mm to 300 mm, available with one or two reduced bore branches. Flange standard ANSI B16.5 / B16.42 with face-to-face per ANSI B16.5 Class 150, and DIN PN10/16, BS 10, ASME 150/300 or mixed dimensions; DIN 2632/2633 and BS 10 Table D, E, F drilling on request. Spark tested at 20 KVDC and hydraulically tested at 29 kg/cm² after lining.
How should I specify an unequal cross so it is made correctly?
Give the run size first, then each branch size and which side it sits on, and say whether you need one or two reduced branches. Because these are made to the drawing rather than off a standard chart, also state the flange standard and drilling for each face — a cross can legitimately have different standards on different faces, and mixed arrangements are supplied. A marked sketch removes all ambiguity.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS manufactures at its own works — since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. Anti-static liners, non-standard dimensions, rotating and off-centre flanges, earthing studs and vent extensions are built to order.
