PVDF Ball Valve
PVDF Ball Valve Manufacturer
MVS Valves PVDF Ball Valve is designed to handle the toughest industrial demands where chemical compatibility and long-lasting performance are non-negotiable. This two-way valve features a robust three-piece full bore construction, offering unrestricted flow and low-pressure drop — ideal for process-critical applications. Constructed using corrosion-resistant materials such as isotactic Polypropylene (PP), PPH, PVDF, and HDPE, it is suitable for handling aggressive chemicals like sulphuric acid, hydrochloric acid, chlorine, bromine, and chlorinated paraffin wax.

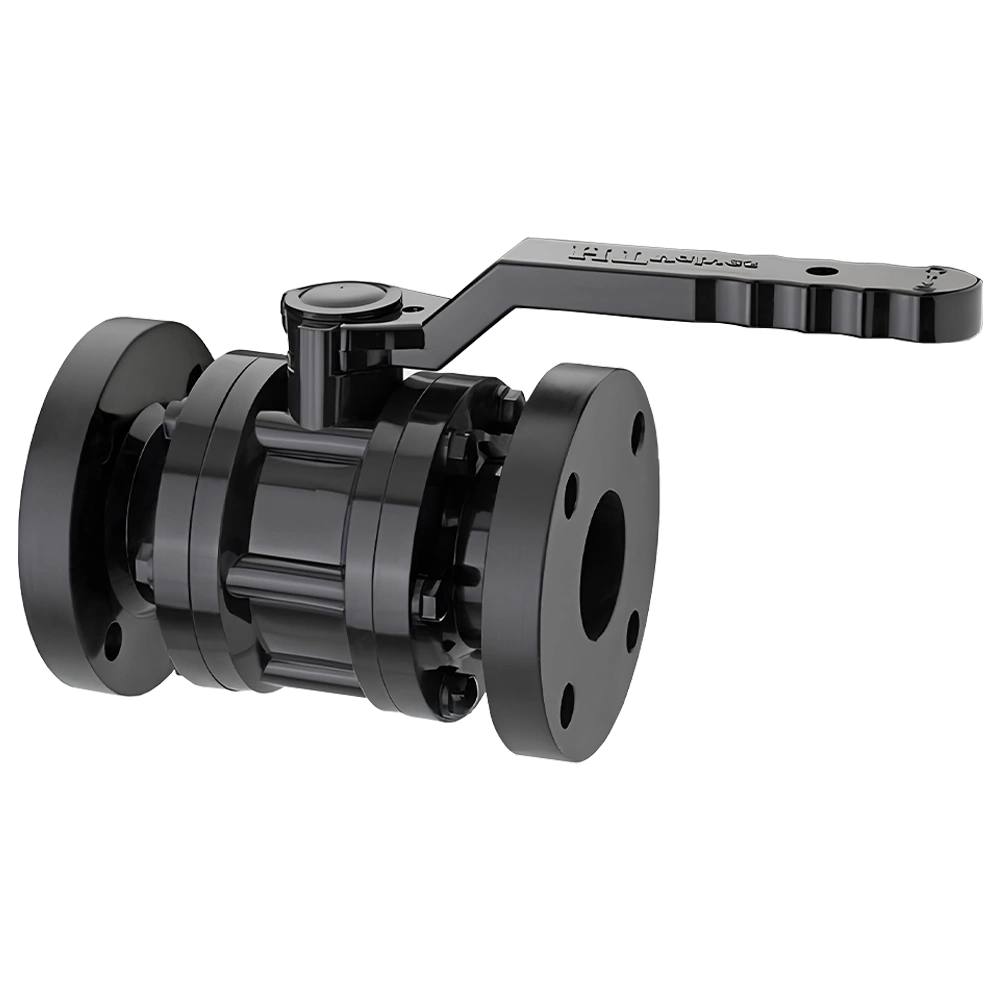

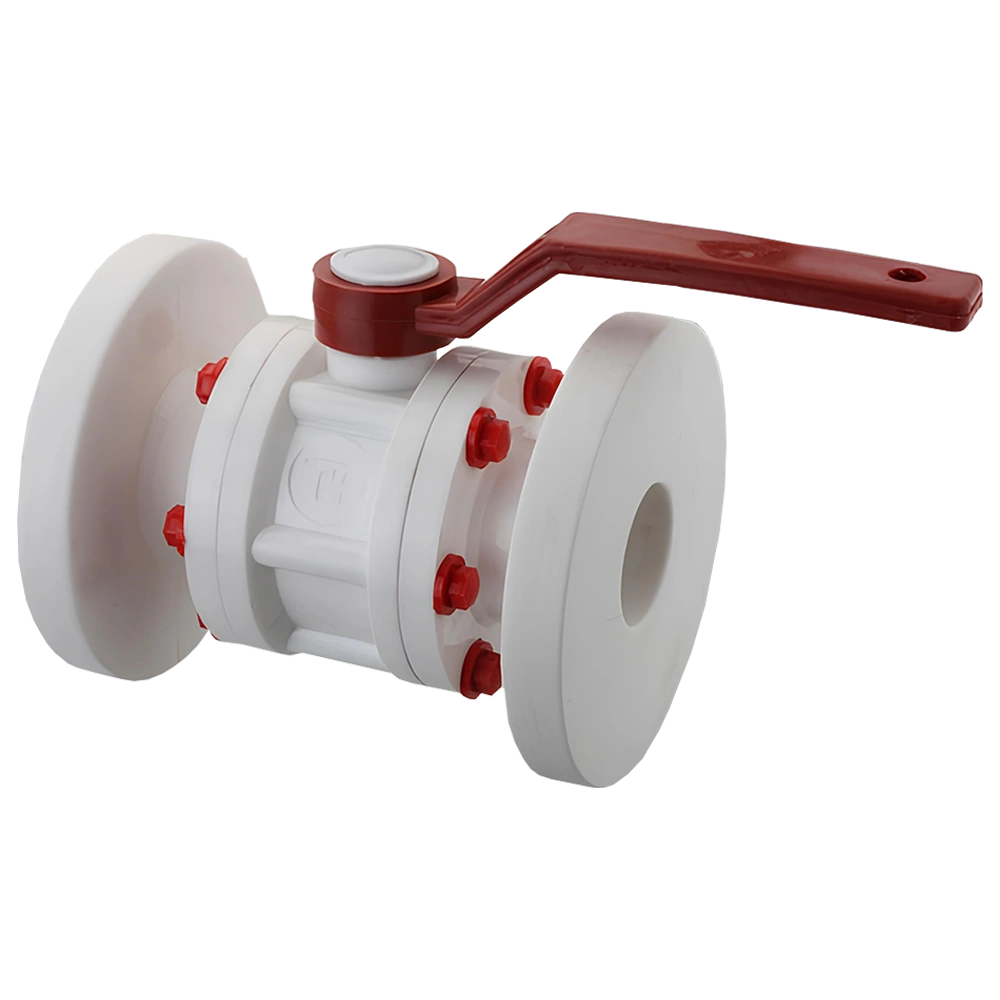

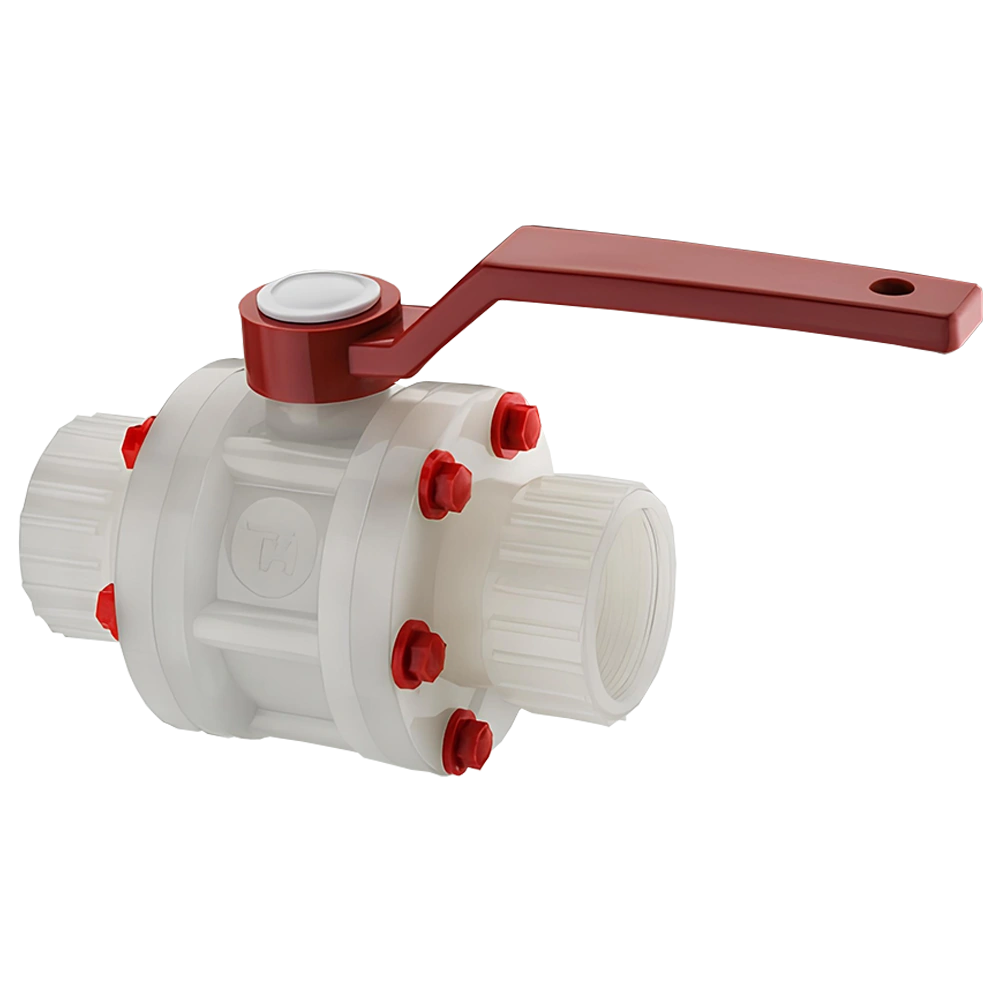

Available with flanged, screwed, or threaded end connections, the PVDF Ball Valve ensures easy integration into new or existing pipeline systems. The PVDF Ball Valve with flanged ends is widely preferred for fixed installations, while the screwed or threaded end options provide flexibility in compact or modular systems. MVS also offers corrosion resistant plastic manual ball valves and corrosion resistant plastic pneumatic ball valves, giving customers the choice between manual and automated flow control based on their process needs.
For automation, the Automatic PVDF Ball Valve with pneumatic actuator delivers efficient and precise control in continuous operation environments. The internal ball, fully encapsulated in PVDF, ensures excellent chemical resistance, making it an ideal solution for chlor alkali industries and for handling Sodium Hypochlorite or Sulphuric Acid with safety and reliability.
We are a trusted PPH Body PVDF Lined Ball Valve manufacturer, offering products that combine structural strength with chemical durability. Our Isotactic PP Ball Valve with PVDF ball is widely used in industries where purity and resistance to harsh chemicals are essential, such as pharmaceuticals, food processing, and chemical manufacturing. Whether you’re operating in the chlor-alkali sector or managing highly reactive chemical processes, MVS PVDF Ball Valves deliver unmatched reliability, leak-free sealing, and extended service life even in the most corrosive environments.
Specification
| Specification | Details |
|---|---|
| Construction | 3 Piece Design, Single Piece Stem, Reinforced Ball, PTFE Seated, Full Bore |
| Design Standard | As per Manufacturer’s Standard |
| Size Range | 15 mm to 150 mm (Flanged), 15 mm to 100 mm (Threaded) |
| End Connections | Flanged (ANSI B 16.5 - 150#, BS 10 Table D/E/F, DIN STD), Screwed BSP |
| Hydrostatic Test | 10 kg/cm² for Body and Seat |

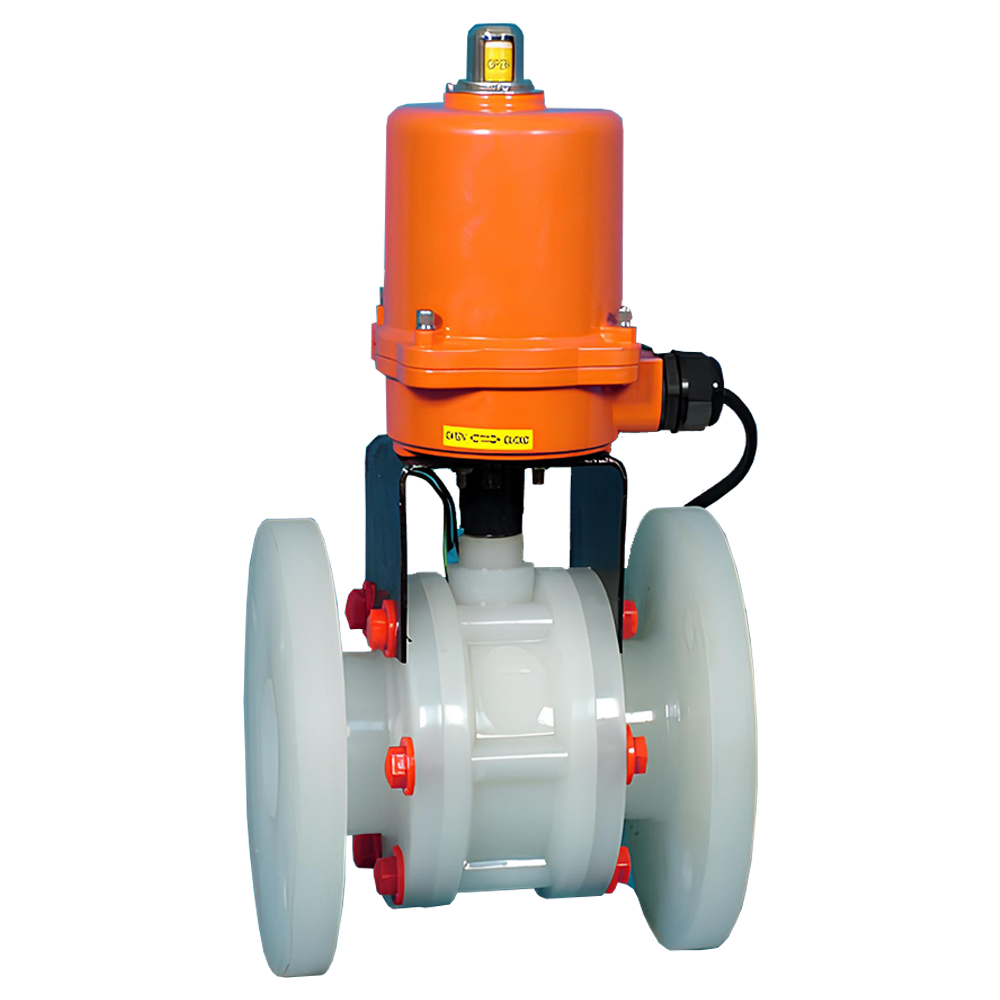

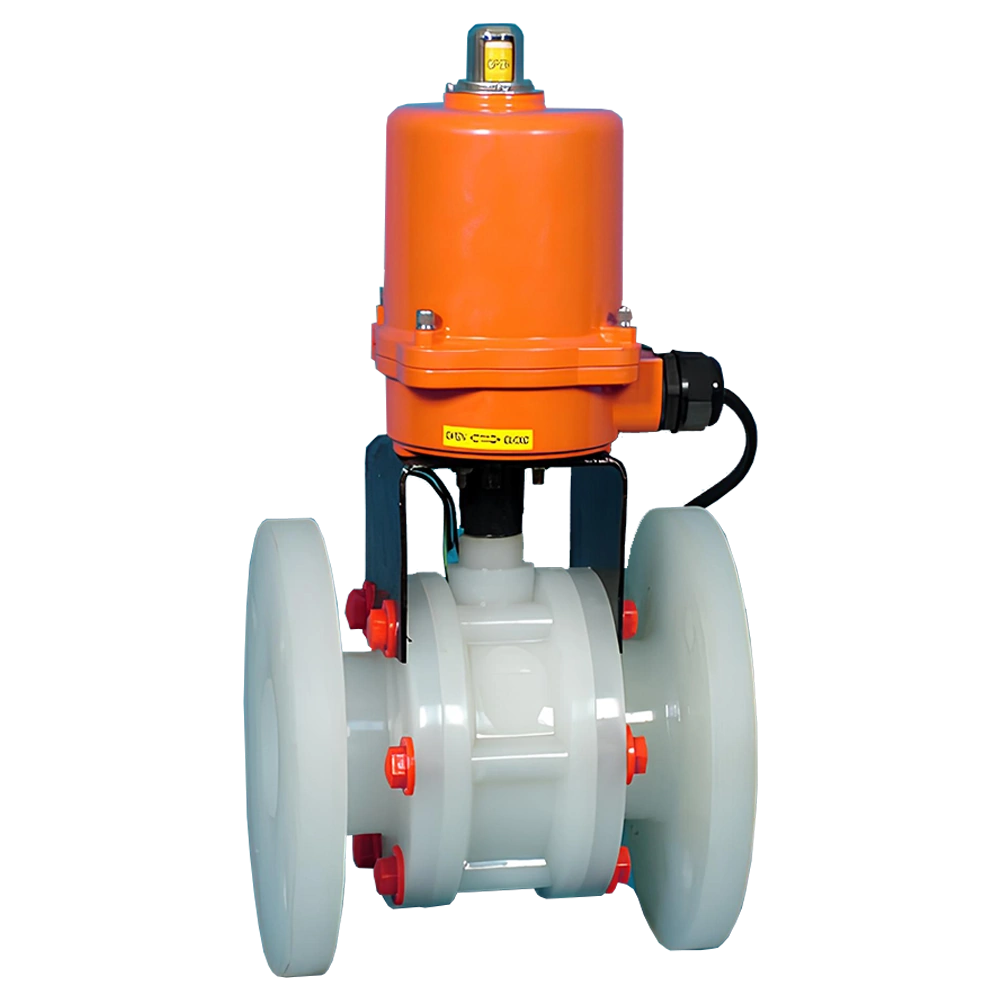

| Operation Options | Manual Lever, Electro-Pneumatic Positioner, Pneumatic Actuator, Electrical Actuator, Solenoid Valve, Limit Switch, Gear Box, Air Filter Regulator |
Material of Construction
| Component | Material |
|---|---|
| Body Material Options | PP, HDPE, ISOTACTIC PP, PPH, PVDF |
| Optional Parts | PVDF Ball, MS PVDF Coated Stem, SS 304 / SS 316 Parts & Fasteners |
| Seal Materials | EPDM, Neoprene, Hypalon, Butyl, Viton, PTFE (with Steel Ring Inserts) |
| Design Features | Three-piece body with six metallic studs/nuts for strength Full Bore – 100% flow Steel inserts in stem and handle for durability Carbon Black for UV resistance in PP Available in screwed end configuration |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Related products
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
PVDF Ball Valve
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a PVDF ball valve and how does it work?
A quarter-turn ball valve moulded from solid thermoplastic rather than lined metal, in a three-piece body with a single piece stem, a reinforced ball and PTFE seats. A 90° turn of the lever opens or closes the full bore. Because the body itself is the corrosion-resistant material, the valve is immune to attack from outside as well as inside — which matters in fume-laden plant rooms where a metal-bodied valve corrodes on its exterior.
Which body, ball and seal materials are available?
Body in PP, HDPE, isotactic PP, PPH or PVDF. Optional PVDF ball, PVDF-coated mild steel stem, and SS 304 or SS 316 parts and fasteners. Seals in EPDM, Neoprene, Hypalon, Butyl, Viton or PTFE with steel ring inserts. The three-piece body uses six metallic studs and nuts for strength — the reason it holds pressure better than a plain moulded thermoplastic valve.
What size, end connections and test pressures apply?
15 mm to 150 mm flanged, or 15 mm to 100 mm threaded. End connections flanged to ANSI B16.5 150#, BS 10 Table D/E/F or DIN standard, or screwed BSP. Hydrostatic test 10 kg/cm² on body and seat. Full bore — 100% of nominal diameter. Operation by manual lever, pneumatic actuator, electrical actuator or electro-pneumatic positioner.
Solid PVDF or PTFE lined — which should I choose?
Solid PVDF is lighter, fully corrosion-proof inside and out, and economical in smaller bores — ideal where the atmosphere is as corrosive as the contents. But the thermoplastic itself carries the pressure and the bolt load, which limits size, rating and tolerance of mechanical abuse. A PTFE lined ball valve puts the same chemical resistance inside a cast metal body that takes the load — the right answer for larger bores, higher duty and anywhere the valve may be knocked.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS manufactures at its own works — since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. PVDF balls, PVDF-coated stems, stainless fasteners and pneumatic or electric actuated assemblies with positioners are built to order.
