PTFE Lined 90 Degree Elbow
PTFE Lined 90 Degree Elbow Manufacturer
Mayur (Valves) System Private Limited, an ISO 9001:2015-certified company, has been a trusted PTFE Lined 90 Degree Elbow manufacturer and exporter since 1978. We export to 40+ countries worldwide, delivering reliable piping solutions with consistent quality, timely delivery, and a smooth customer experience. Our PTFE Lined 90 Degree Elbows are designed for handling corrosive and demanding process media while providing dependable flow direction changes. We serve clients across Europe, North America, the Middle East, Southeast Asia, Russia, and other international markets with practical, durable, and industry-focused solutions.

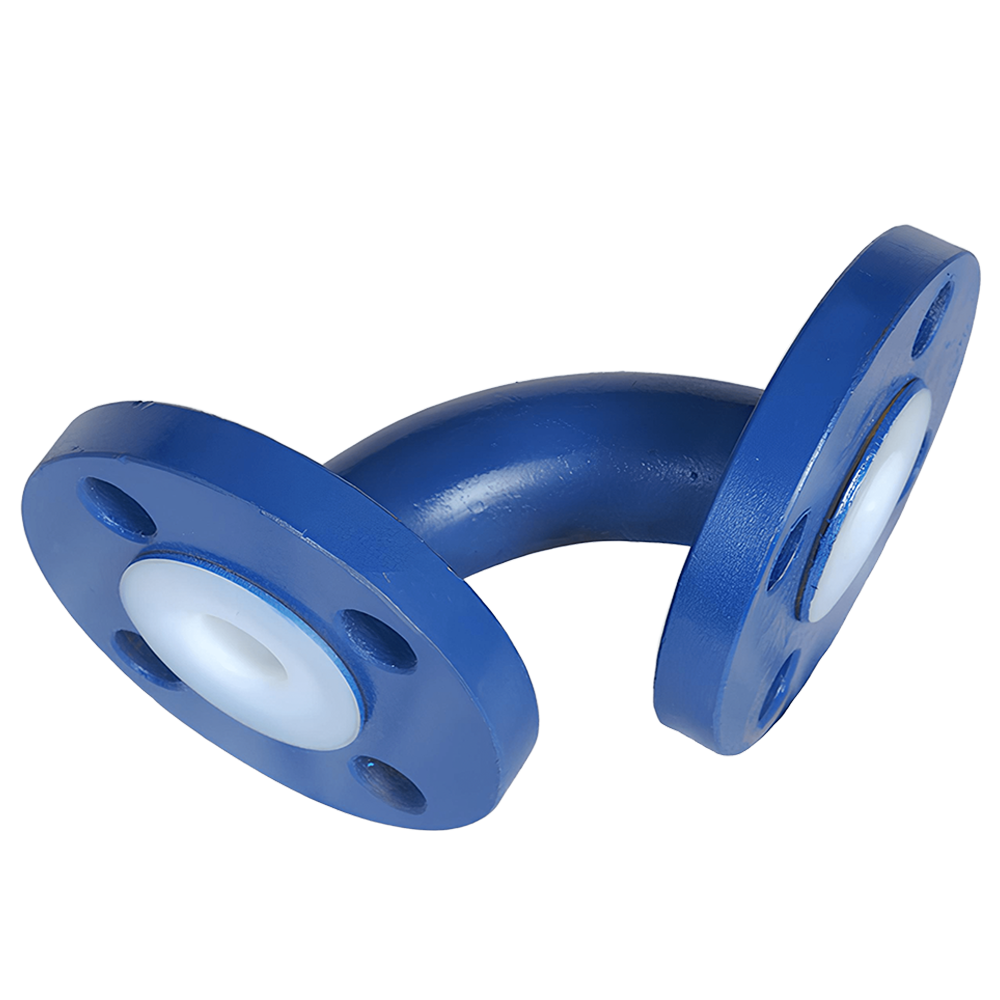

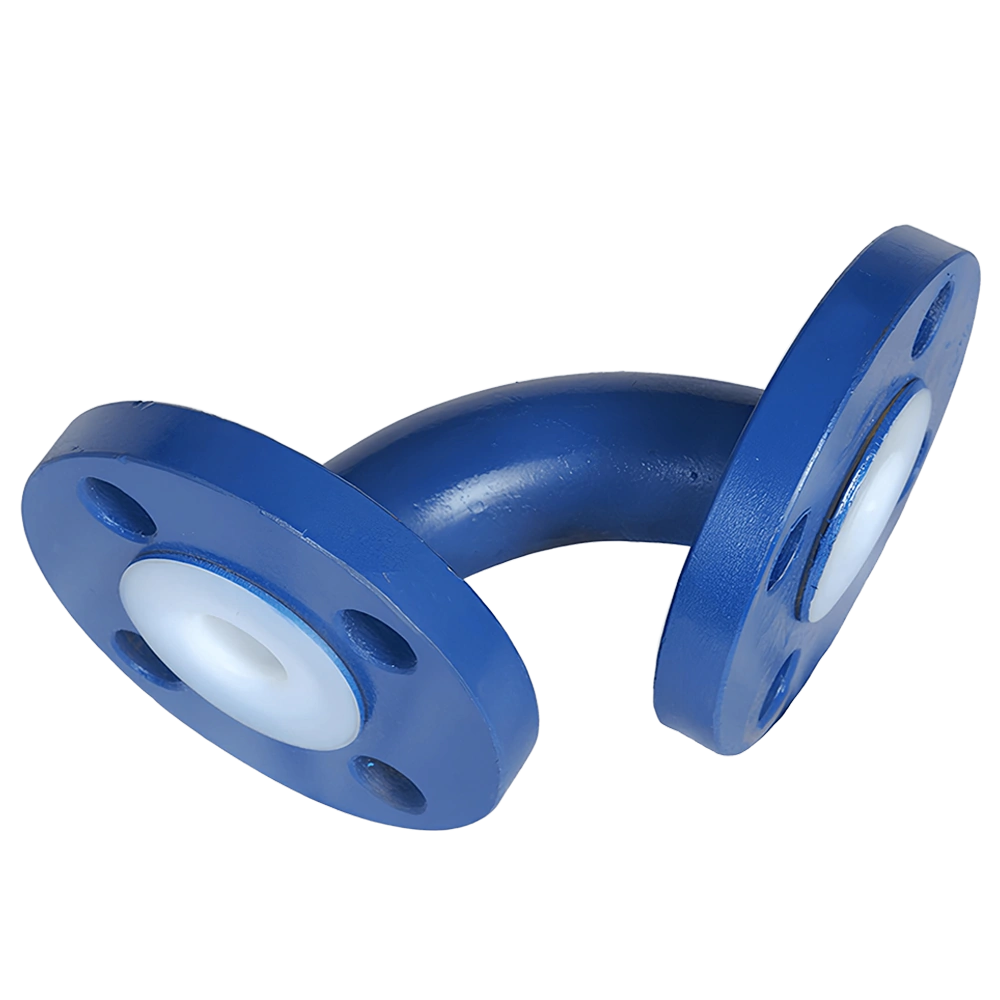

MVS Valves PTFE Lined 90° Elbow is a precision-engineered solution for smooth directional change in highly corrosive process pipelines. Manufactured with a seamless virgin PTFE or PFA liner and housed in a robust ductile iron or carbon steel body, this elbow ensures long-lasting protection against chemical attack, permeation, and corrosion fatigue. It is available in sizes ranging from ½″ to 24″ (DN 15–600), designed to ANSI Class 150/300 or PN 10–25 pressure ratings, and operates efficiently within a broad temperature range of –40 °C to +230 °C.
Our PTFE Lined 90 Degree Elbow features raised face flanges and is fully compliant with global piping standards such as ASTM F1545, ASME B16.9, and ISO. All elbows up to 150 mm are provided as cast fittings, while larger sizes are fabricated. The lining is done using paste-extruded PTFE liners that are flared over the flange face to ensure leak-proof sealing. Additionally, FEP and PFA mouldings are standardized for cast elbows to maximize chemical resistance and durability. For sensitive applications, these elbows are also available in anti-static PTFE liners, preventing the build-up of static charges in volatile media handling.
Applications of PTFE Lined 90 Degree Elbow
This fitting is ideal for use in:
- Chemical and petrochemical process pipelines
- Chlorine and bromine handling systems
- Pharmaceutical and food-grade applications
- Semiconductor and high-purity chemical plants
- Fertilizer and pesticide manufacturing industries
Specification
| Specification | Details |
|---|---|
| Size Range | 25 mm to 200 mm |
| Standard Degrees | 90º (Long Radius / Other Angles on request) |
| End Connection | Both Sides fixed flanges – Rotating – Fixed On / Off Centres |
| Material | Steel Fabrication – ASTM A234 Gr.WPB with Flanges as per ASTM A105, IS 2062, Ductile Iron GGG40.3, ASTM A395, Cast Steel ASTM A216 Gr. WCB, ASTM A312 TP 304 / 316 : SCH.-40. |
| Flanges | Made IS 2062 Plate, ASTM A105, CF8 (SS304), CF8M (SS316) |
| Flange Dimensions | DIN PN10 / 16, BS 10, ASME 150 / 300, Mixed |
| Lining | PTFE Liner Extruded from PTFE Resin as per ASTM F1545-97 (2003) |
| Lining Options | PTFE, FEP, PFA, PVDF, ETFE, PP, HDPE |
| Lining Thickness | Minimum 3.5 mm / 6.0 overall (±1.0 Lining Tolerance) |
| Lining Spark Test | 20 KVDC After lining |
| Hydraulic Test | 29 Kg/Cm2 After Lining |
Material of Construction
| Jacketed Elbow | Jacketed 90° Elbow bend on request |
| Flanges | Rotating Flange is also available on request, Fixed On/Off Center DIN PN 10/16, BS 10, ASME 300 Mixed |
| Extras | Earthing Studs/Lugs, Vent Extensions |
| Material | Stainless Steel |
| Liner | HDPE / PP |
| Geometry | Long Radius, Other Angles or as per customers requirement |
| Special Feature | 90° Degree Elbows with Rotating Flanges |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
PTFE Lined 90 Degree Elbow
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a PTFE lined 90° elbow and how is it made?
A long radius 90° bend with a PTFE liner extruded to ASTM F1545-97 and flared over the flange faces at both ends. The long radius keeps the flow turning gently, which matters more in a lined line than a bare one — a tight bend concentrates erosion at the outside of the turn, and in a lined system that is exactly where the liner is thinnest.
Which body, flange and lining materials are available?

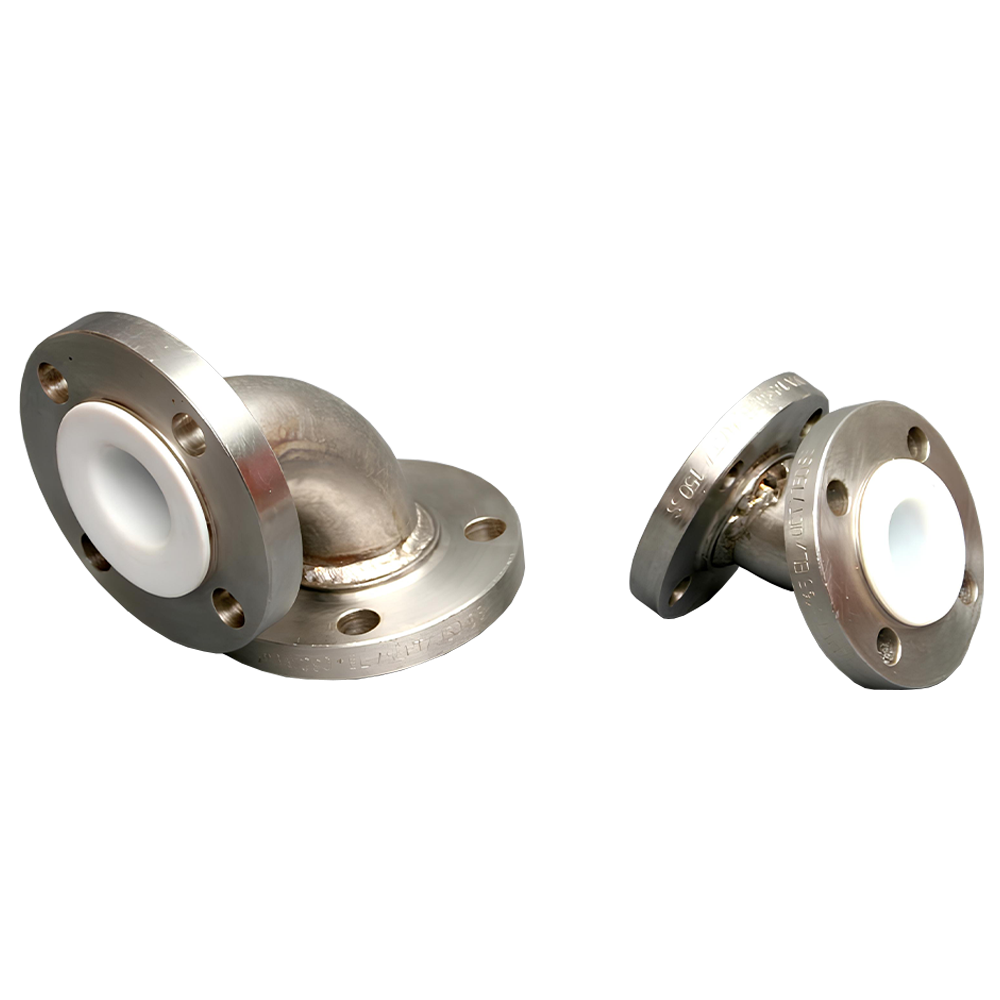

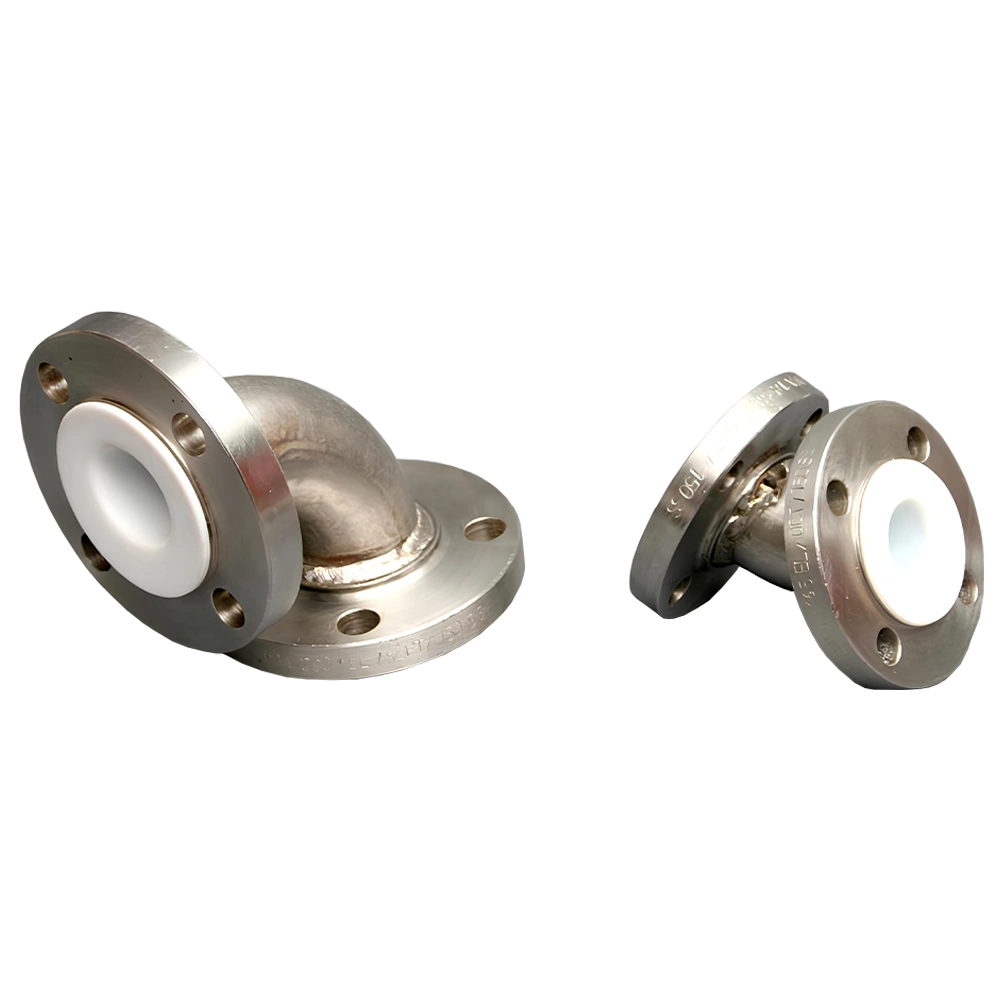

Body in stainless steel or steel fabrication, with flanges available as rotating or fixed on/off centres. Lining options PTFE, FEP, PFA, PVDF, ETFE, PP and HDPE, at a minimum 3.5 mm, 6.0 mm overall (±1.0 mm tolerance). Flange dimensions DIN PN10/16, BS 10, ASME 150/300 or mixed. Jacketed 90° elbow bends are available on request for heated or cooled service.
What sizes and test standards apply?
25 mm to 200 mm, 90° long radius as standard with other angles on request. Every elbow is spark tested at 20 KVDC after lining and hydraulically tested at 29 kg/cm². Earthing studs or lugs and vent extensions are available as extras.
What are rotating flanges and earthing lugs for?
A rotating flange turns freely on the fitting, so you can align the bolt holes with the mating flange on site instead of forcing the pipework round — invaluable on a lined system, where twisting a spool to line up holes is exactly what cracks a liner flare. Earthing studs or lugs give the steel shell a bonding point: fluoropolymer is an insulator, and flowing solvent can build a static charge, so bonding and an anti-static liner are specified where that is a hazard.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS manufactures at its own works — since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. Rotating flanges, jacketed bends, non-standard angles, earthing studs and vent extensions are built to order.
