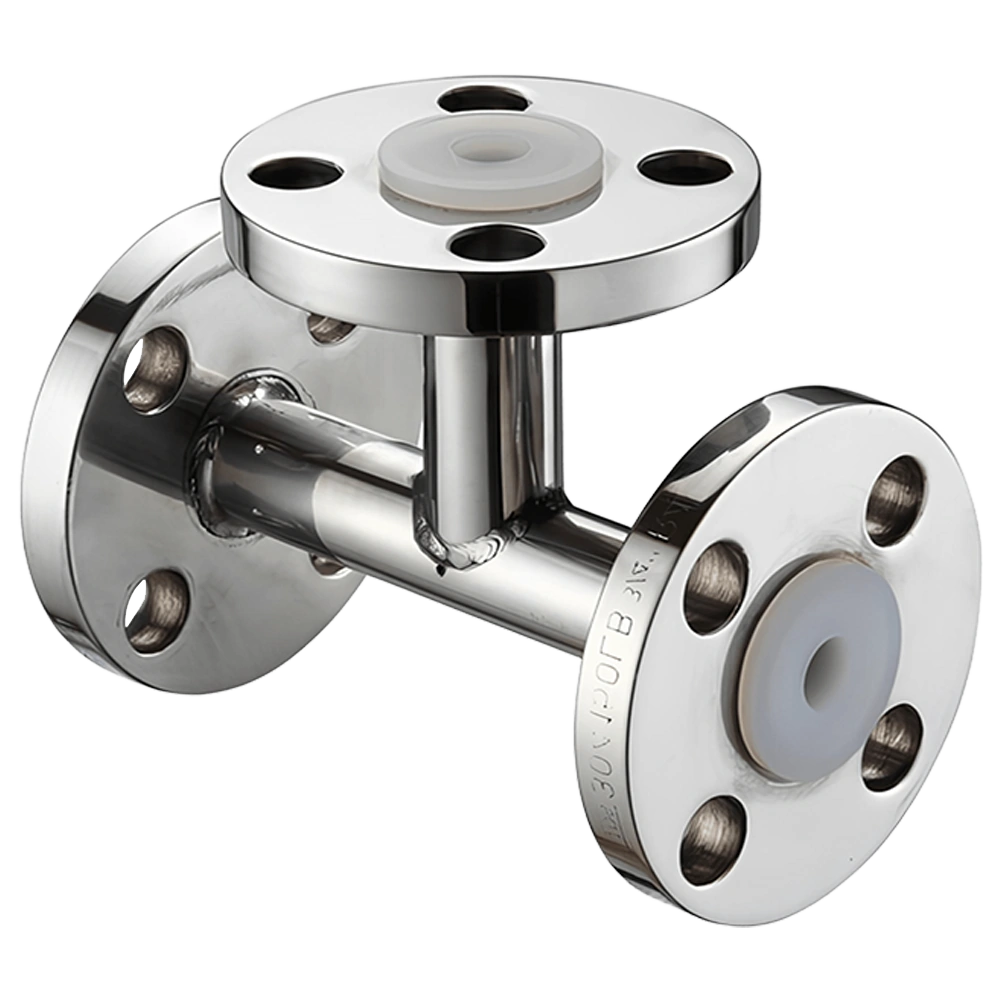

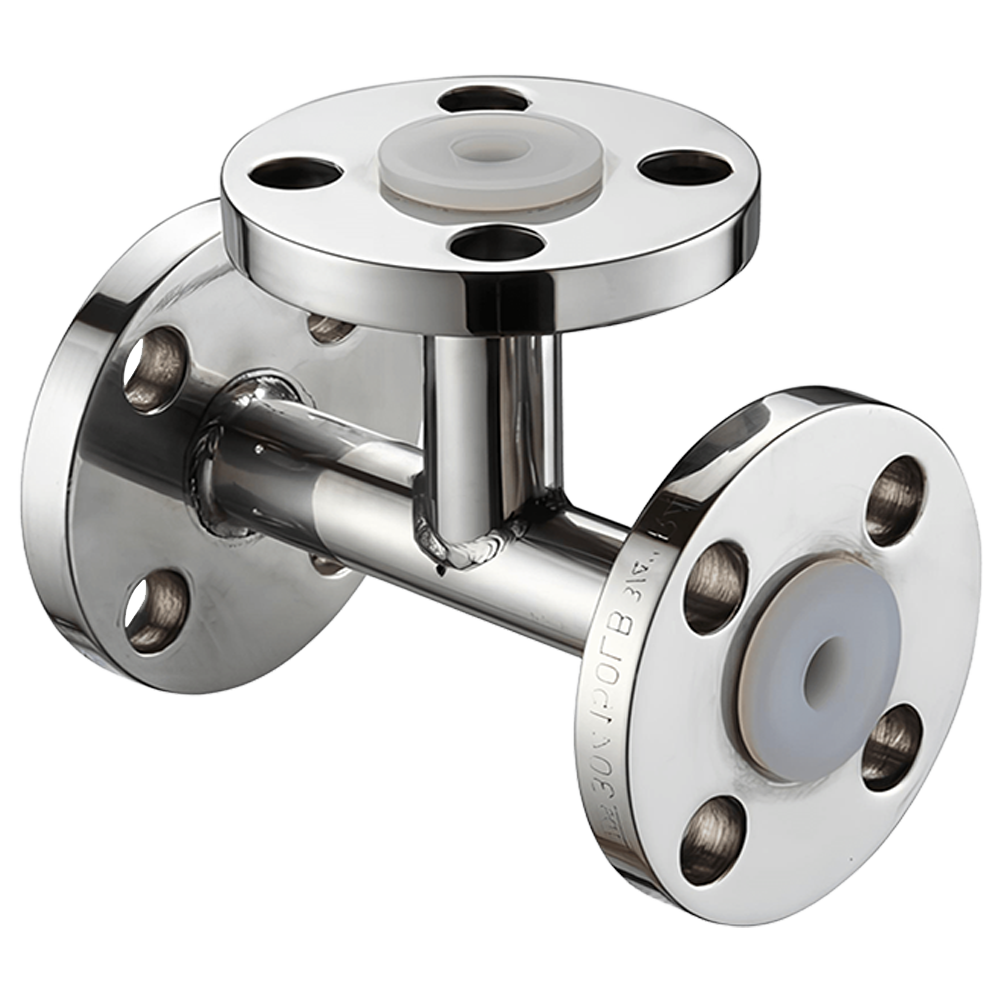

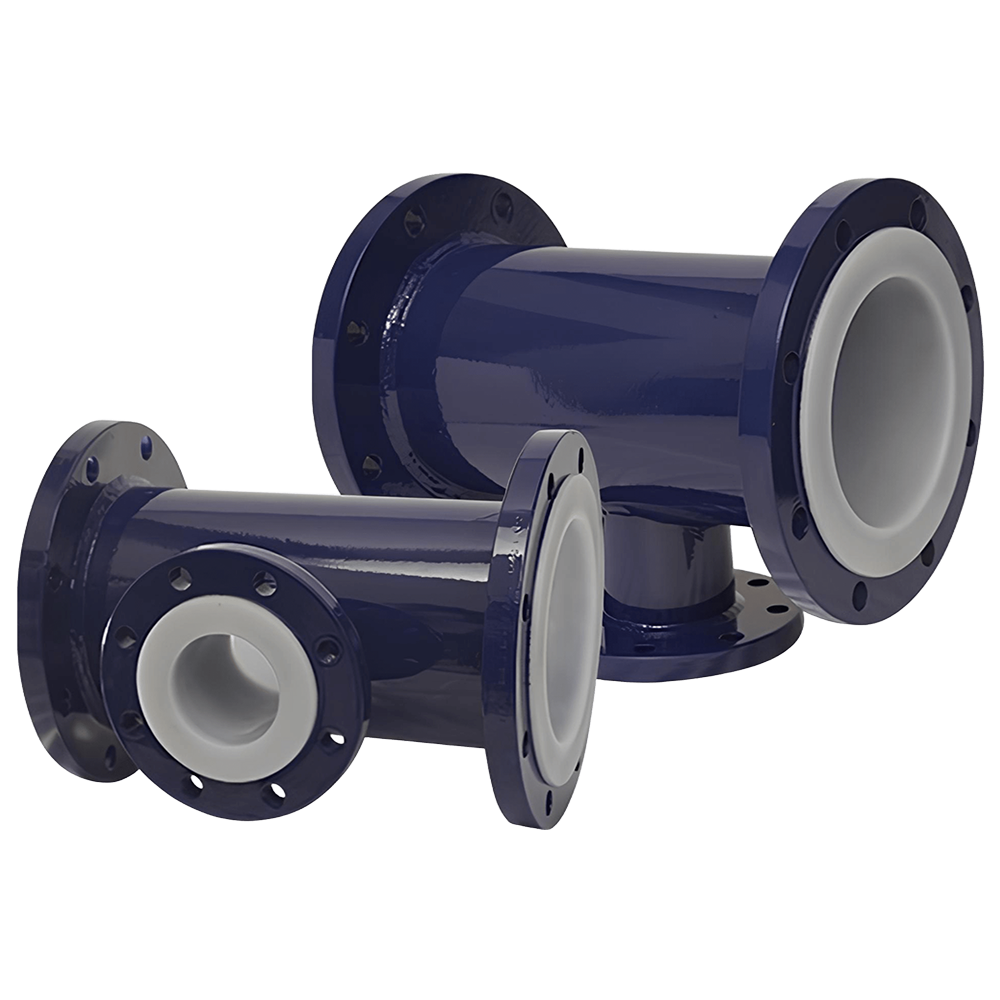

PTFE Lined Equal Tee
PTFE Lined Equal Tee Manufacturer
Mayur (Valves) System Private Limited, an ISO 9001:2015-certified company, has been a trusted PTFE Lined Equal Tee manufacturer and exporter since 1978. We export to 40+ countries worldwide, focusing on consistent quality, timely delivery, and a smooth customer experience. Our PTFE Lined Equal Tees are designed for reliable flow distribution and dependable performance in demanding industrial applications. We serve clients across Europe, North America, the Middle East, Southeast Asia, Russia, and other international markets with practical solutions and technical expertise. We offer high-integrity three-way fittings specially engineered for handling corrosive, toxic, or high-purity media. These tees are internally lined with PTFE or PFA, offering superior chemical resistance and long-term reliability in demanding flow applications. Whether installed in pharmaceutical, petrochemical, or acid transfer systems, our equal tees provide a secure and leak-proof flow path with minimal maintenance.
Available in standard sizes ranging from ½″ to 24″ (DN 15–600), our PTFE Lined Equal Tees are vacuum-rated and pressure-tested for ANSI Class 150/300 or PN 10–25 operations. With a working temperature range of –40 °C to +230 °C, they perform reliably even under thermal stress and vacuum conditions. Each tee is manufactured in accordance with ASTM F1545, ASME B16.9, and ISO standards, making sure dimensional accuracy and mechanical durability.
To suit varying industrial requirements, we offer PTFE Lined Equal Tee bodies in cast steel and stainless steel, fully lined with FEP, PFA, PVDF, or PTFE. While most standard sizes are produced with cast bodies and rotating flanges, larger sizes or custom configurations are fabricated to meet unique pipeline demands. We also provide static-dissipating (anti-static) liners for explosive or volatile fluid systems, and unpigmented liners for ultra-pure chemical flows.
These tees are commonly used in chemical processing plants, chlor-alkali units, acid manufacturing, pharma-grade fluid systems, and semiconductor fluid handling, where cleanliness, compatibility, and corrosion resistance are essential. If you’re seeking a reliable and high-quality PTFE Lined Equal Tee Manufacturer, MVS Valves offers the precise combination of engineering expertise and material excellence your process demands.
Specification
| Specification | Details |
|---|---|
| Size Range | 25 mm to 300 mm |
| Types | Equal Tee |
| End Connection | Both Sides fixed flanges – Rotating – Fixed On / Off Centres |
| Material | Steel Fabrication – ASTM A234 Gr. WPB, Flanges as per ASTM A105, IS 2062, Ductile Iron GGG40.3, ASTM A395, Cast Steel ASTM A216 Gr. WCB, ASTM A312 TP 304 / 316 : SCH.-40 |
| Flanges | Made from IS 2062 Plates, ASTM A105, CF8 (SS304), CF8M (SS316) |
| Flange Dimensions | DIN PN10/16, BS 10, ASME 150 / 300, Mixed |
| Lining | Moulded FEP, PFA |
| Lining Options | PVDF, PP, HDPE |
| Lining Thickness | Minimum 3.5 mm / 6.0 overall (±1.0 Lining Tolerance) |
| Lining Spark Test | 20 KVDC After lining |
| Hydraulic Test | 29 Kg/Cm2 After Lining |
| Flange Options | Three fixed flanges; three loose flanges; two fixed or two loose flanges available on request |
Material of Construction
| Flange | Rotating, Fixed On / Off center DIN PN 10 / 16, BS 10, ASME 300, Mixed |
| Extras | Earthing Studs / Lugs, Vent Extensions |
| Material | Stainless Steel |
| Lining | PFA / HDPE / PP |
| Geometry | Non-Standard Dimensions |
| Other Flange Drilling | DIN 2632 / 2633, BS 10 Table D, E, F available on request |
| Fabricated Sizes | Sizes above 6″ are fabricated from pipe |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
PTFE Lined Equal Tee
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a PTFE lined equal tee and how is it made?
A three-way fitting in which the branch is the same nominal bore as the run, lined throughout with moulded FEP or PFA. Up to 150 NB it is made as a casting or moulding; above 6″ it is fabricated from pipe. The lining is carried continuously around the junction, which is the hardest part of a tee to line well — a poorly lined branch root is where lined tees fail.
Which body, flange and lining materials are available?
Body in steel fabrication to ASTM A234 Gr. WPB, with flanges per ASTM A105 or IS 2062 plate, CF8 (SS 304) or CF8M (SS 316). Lining in moulded FEP or PFA, with PVDF, PP and HDPE options, at a minimum 3.5 mm, 6.0 mm overall (±1.0 mm tolerance). Flange dimensions DIN PN10/16, BS 10, ASME 150/300 or mixed, with DIN 2632/2633 and BS 10 Table D, E, F drilling on request.
What sizes, flange configurations and tests apply?
25 mm to 300 mm. Flange configurations include three fixed flanges, three loose flanges, or two fixed with one loose — and rotating or fixed on/off centre arrangements. Every tee is spark tested at 20 KVDC after lining and hydraulically tested at 29 kg/cm². Earthing studs or lugs and vent extensions are available.
Equal or reducing tee — which should I order?
Order an equal tee where the branch carries the same duty as the run. Where the branch is smaller, a reducing tee saves you a separate reducer and one more pair of lined flange joints — and on a lined system every flange joint you remove is one less place a liner flare can be crushed during assembly. Specify the run size first, then the branch.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS manufactures at its own works — since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. Non-standard dimensions, loose and rotating flange combinations, alternative drilling standards and PVDF, PP or HDPE liners are built to order.
