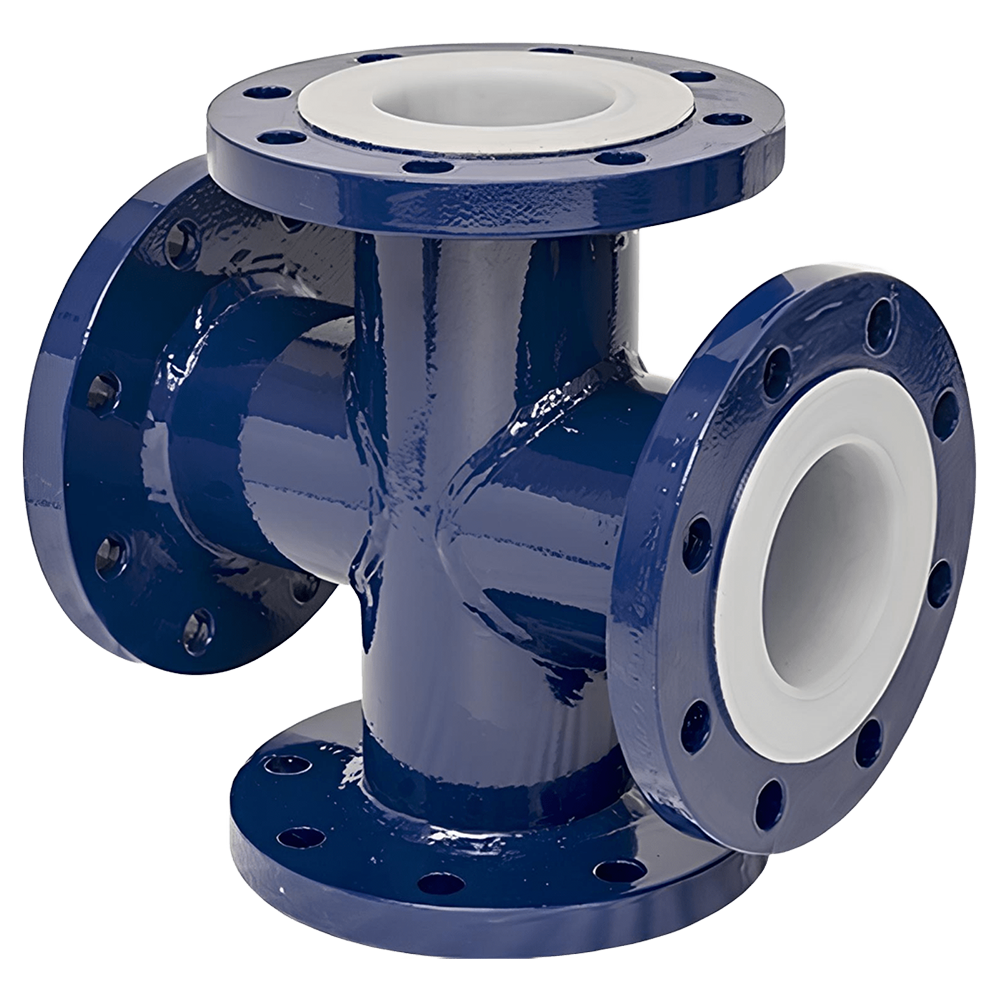

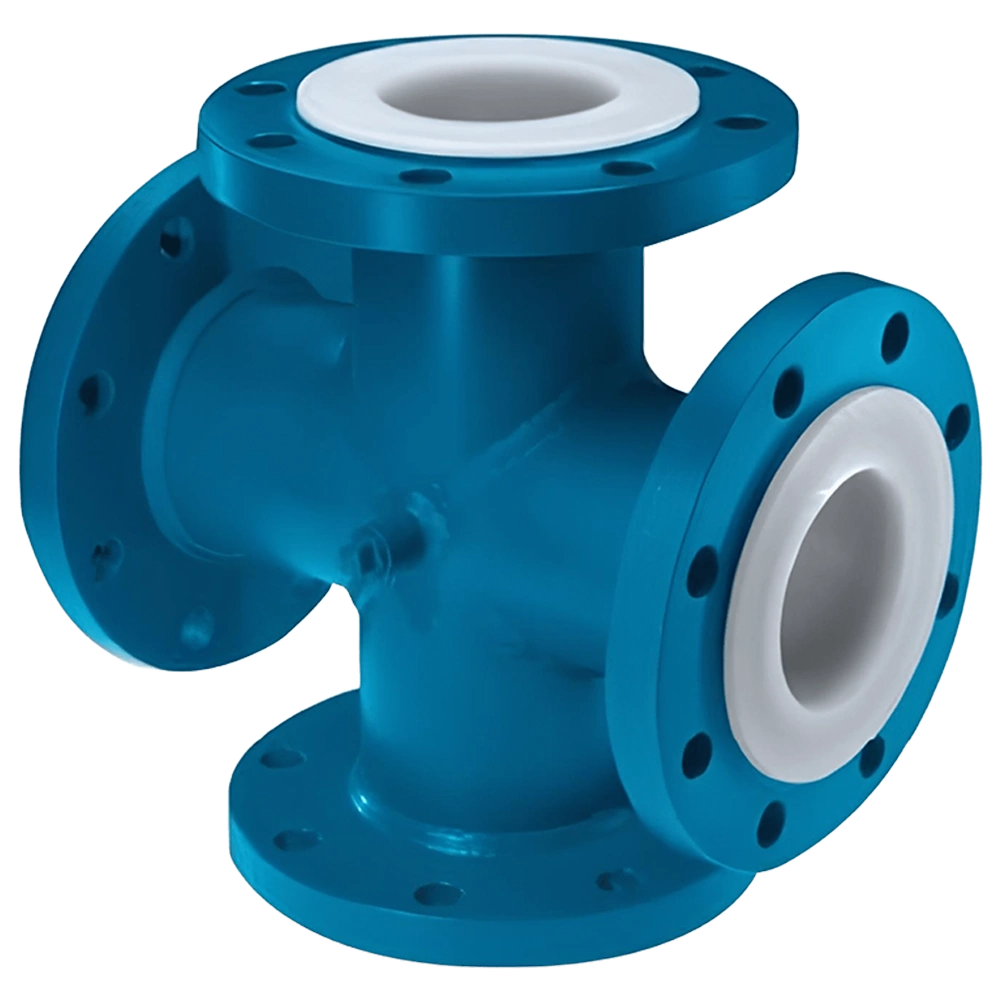

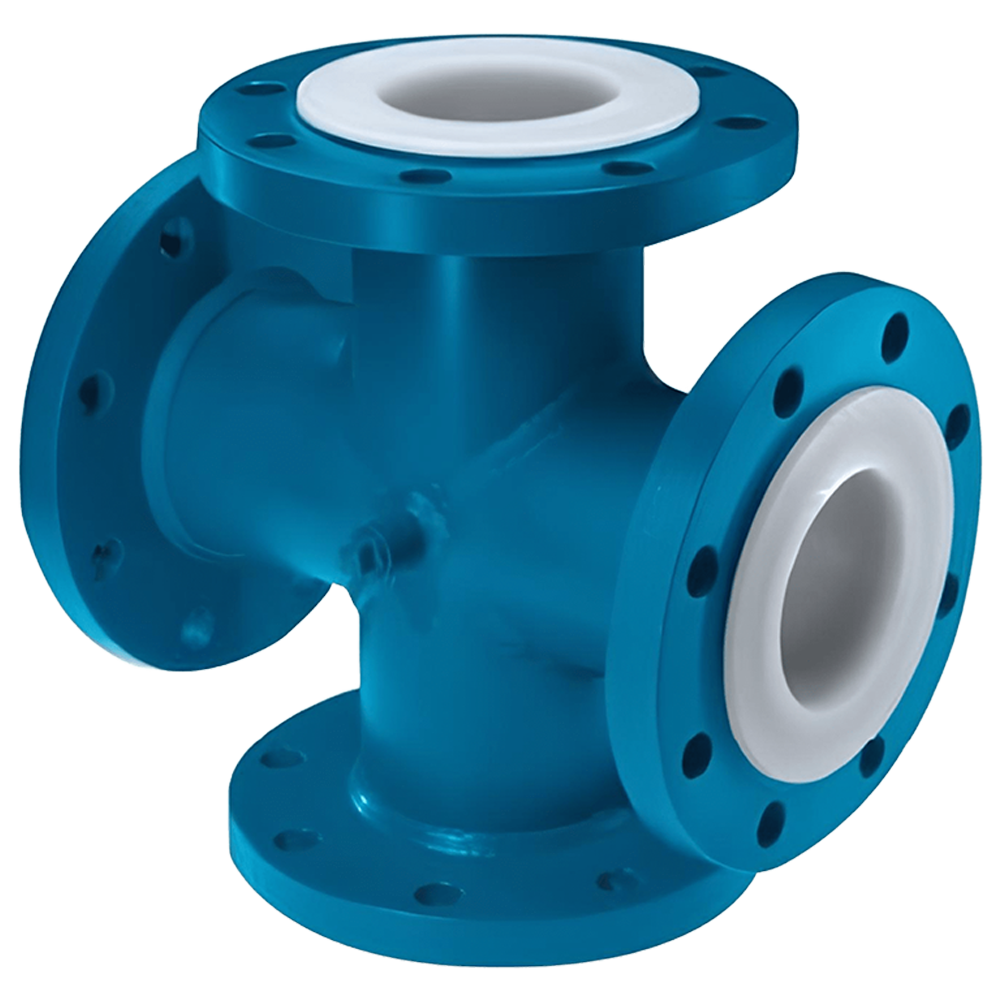

PTFE Lined Equal Cross
PTFE Lined Equal Cross Manufacturer
Mayur (Valves) System Private Limited, an ISO 9001:2015-certified company, has been a trusted PTFE Lined Equal Cross manufacturer and exporter since 1978. We export to 40+ countries worldwide, focusing on consistent quality, timely delivery, and a smooth customer experience. Our PTFE Lined Equal Crosses are engineered for efficient flow distribution, corrosion resistance, and dependable performance in demanding industrial applications. We serve clients across Europe, North America, the Middle East, Southeast Asia, Russia, and other international markets with reliable solutions and technical expertise. Our PTFE Lined Equal Cross is engineered to provide efficient four-way flow distribution in highly corrosive and high-purity piping systems. These fittings are internally lined with premium-grade PTFE or PFA, ensuring exceptional resistance to a wide range of aggressive chemicals and solvents. Designed for long-term performance in demanding industrial applications, they offer a leak-proof, maintenance-free solution in both vacuum and pressure-rated systems.
Manufactured using ductile iron, cast steel, or stainless steel, and available with PFA, FEP, PVDF, or PP linings, these crosses are built to handle critical process conditions without compromising structural strength. They are suitable for use in chemical plants, pharmaceutical industries, petrochemical pipelines, and acid handling systems, where precise multi-directional flow control is essential. With a standard size range of ½″ to 24″ (DN 15–600) and pressure ratings up to ANSI Class 150/300 or PN 10–25, these fittings can operate at temperatures between –40 °C and +230 °C.
Each PTFE Lined Equal Cross conforms to ASTM F1545, ASME B16.9, and ISO standards, ensuring high mechanical integrity, dimensional consistency, and global compatibility. These fittings are available with flanged end connections as per ASME B16.5 Class 150 or DIN standards, making them easy to install into new or existing lined piping systems. They can also be supplied with virgin unpigmented liners for ultra-pure media or anti-static liners for volatile applications to prevent electrostatic discharge. Whether used for distributing aggressive fluids or controlling flow across multiple process branches, MVS PTFE Lined Equal Cross fittings offer a safe, durable, and highly chemical-resistant solution for complex industrial piping networks.
Specification
| Specification | Details |
|---|---|
| Size Range | 25 mm to 300 mm |
| Types | Equal Cross |
| End Connection | Both Sides fixed flanges – Rotating – Fixed On / Off Centres |
| Material | Steel Fabrication – ASTM A234 Gr. WPB, Flanges as per ASTM A105, IS 2062, Ductile Iron GGG40.3, ASTM A395, Cast Steel ASTM A216 Gr. WCB, ASTM A312 TP 304 / 316 : SCH.-40 |
| Flanges | Made from IS 2062 Plates, ASTM A105, CF8 (SS 304), CF8M (SS 316) |
| Flange Dimensions | DIN PN10/16, BS 10, ASME 150 / 300, Mixed |
| Lining | Moulded FEP, PFA |
| Lining Options | PVDF, PP, HDPE |
| Lining Thickness | Minimum 3.5 mm / 6.0 overall (±1.0 Lining Tolerance) |
| Lining Spark Test | 20 KVDC After lining |
| Hydraulic Test | 29 Kg/Cm2 After Lining |
| Flange Standard | As per ANSI B 16.5 / B 16.42, DIN PN 10, DIN PN 16 |
| Face to Face | As per ANSI B 16.5 # 150 |
| Other Drilling Standards | DIN 2632 / 2633, BS 10 Table D, E, F available on request. Sizes above 6″ fabricated from pipe |
Material of Construction
| Flange | Rotating, Fixed On / Off centre DIN PN 10 / 16, BS 10, ASME 300, Mixed |
| Extras | Earthing Studs / Lugs, Vent Extensions |
| Geometry | Non-Standard Dimensions |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
PTFE Lined Equal Cross
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a PTFE lined equal cross and where is it used?
A four-way fitting with all branches the same nominal bore, lined throughout with moulded FEP or PFA. It is used where two lines intersect or where a header needs opposed branches from a single point — distribution manifolds, ring mains and reactor feed headers. Using one cross instead of two tees removes a spool and a flange pair from the run.
Which body, flange and lining materials are available?
Body in steel fabrication to ASTM A234 Gr. WPB, with flanges per ASTM A105 or IS 2062 plate, CF8 (SS 304) or CF8M (SS 316). Lining in moulded FEP or PFA with PVDF, PP and HDPE options, at a minimum 3.5 mm, 6.0 mm overall (±1.0 mm tolerance). Flange standard per ANSI B16.5 / B16.42, DIN PN 10 or PN 16, with face-to-face per ANSI B16.5 #150.
What sizes and test standards apply?
25 mm to 300 mm; sizes above 6″ are fabricated rather than cast. Flange dimensions DIN PN10/16, BS 10, ASME 150/300 or mixed, with rotating and fixed on/off centre options, and DIN 2632/2633 or BS 10 Table D, E, F drilling on request. Spark tested at 20 KVDC and hydraulically tested at 29 kg/cm² after lining.
Equal or unequal cross — which do I order?
Order an equal cross where all four branches carry the same bore. Where one or two branches are smaller, an unequal reducing cross is made with the reduced bores built in, saving the reducers and their flange joints. On a lined system that matters — fewer joints means fewer liner flares to be crushed during assembly.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS manufactures at its own works — since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. Non-standard dimensions, rotating and off-centre flanges, alternative drilling standards, earthing studs and vent extensions are built to order.
