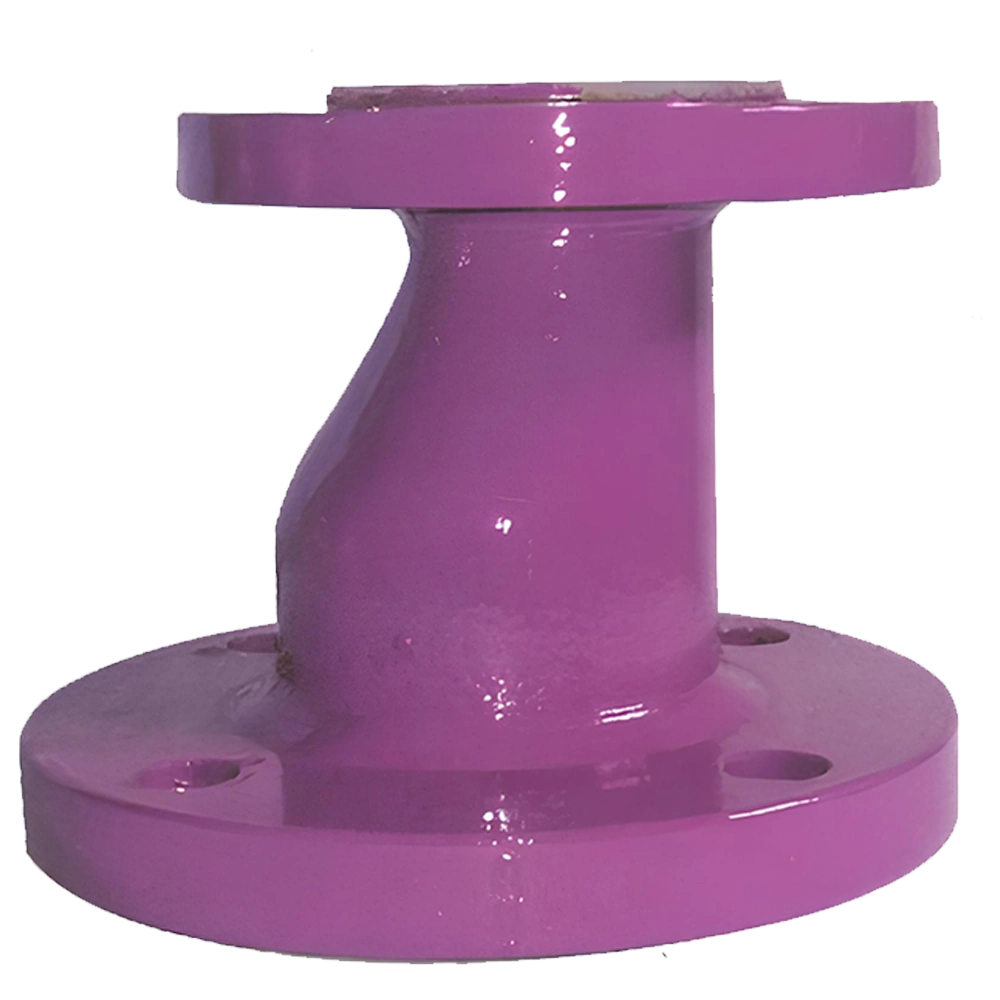

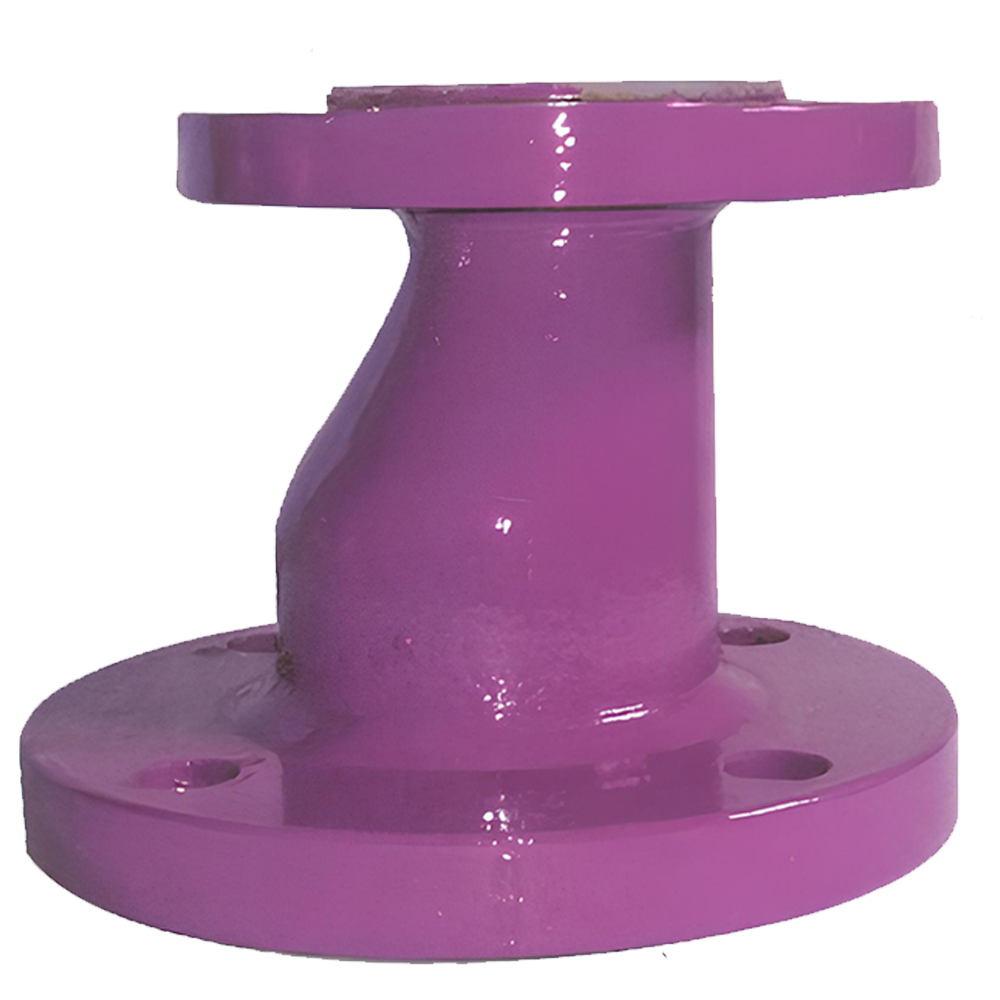

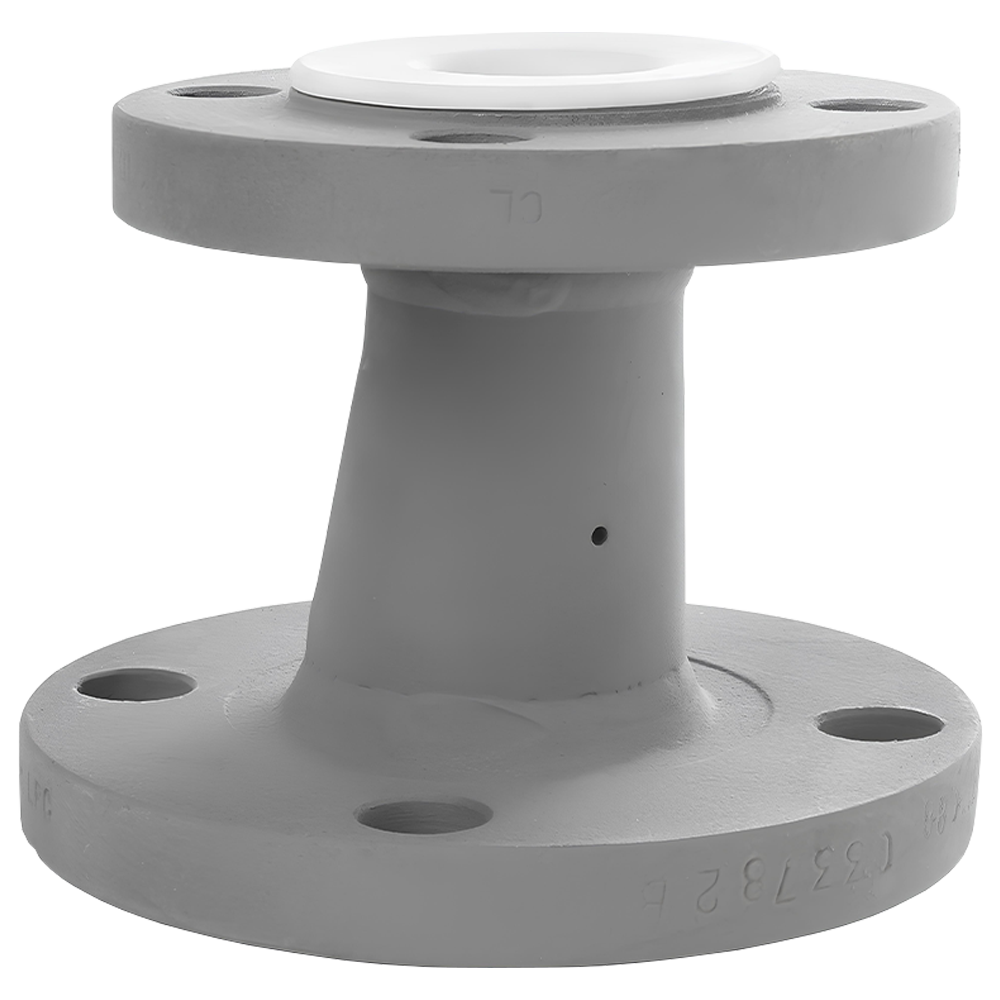

PTFE Lined Eccentric Reducers
PTFE Lined Eccentric Reducers Manufacturer
Mayur (Valves) System Private Limited, an ISO 9001:2015-certified company, has been a trusted PTFE Lined Eccentric Reducers manufacturer and exporter since 1978. Our PTFE Lined Eccentric Reducers are engineered for smooth transitions between different pipe diameters, particularly in horizontal piping where effective drainage is essential. Their offset centerline supports proper flow while helping prevent the buildup of corrosive or hazardous fluids. A seamless lining of high-purity PTFE or PFA provides excellent chemical resistance and long-term protection against aggressive acids, solvents, and high-purity media. We export to 40+ countries across Europe, North America, the Middle East, Southeast Asia, Russia, and other international markets, ensuring timely delivery and a smooth customer experience.
Manufactured in strong materials such as ductile iron, cast steel, and stainless steel, these reducers combine mechanical strength with corrosion protection. The internal lining is available in PFA, FEP, PVDF, and PP, making them suitable for a wide range of industrial applications including chemical processing, pharmaceuticals, water treatment, and petrochemical installations. Available in sizes from ½″ to 24″ (DN 15–600), and pressure ratings of ANSI Class 150/300 or PN 10–25, they support operation in demanding environments with temperatures ranging from –40 °C to +230 °C.
Each PTFE Lined Eccentric Reducer is designed to conform to ASTM F1545, ASME B16.9, and ISO standards, ensuring consistent quality and safety. The reducers are vacuum-rated and can be supplied with virgin unpigmented liners for high-purity applications or anti-static liners to eliminate the risk of static discharge in volatile media systems. The flanged end connections comply with ASME B16.5 Class 150 and DIN dimensions, offering seamless integration into existing pipelines. Whether used in corrosive chemical lines or critical process systems, MVS PTFE Lined Eccentric Reducers ensure a leak-free, durable, and low-maintenance solution for smooth flow transitions and pipeline integrity.
Specification
| Specification | Details |
|---|---|
| Size Range | 15 mm X 25 mm to 200 mm X 250 mm (above sizes on request) |
| Type | Eccentric Reducer |
| End Connection | Both Sides fixed flanges – Rotating – Fixed On / Off Centres |
| Material | Ductile Iron GGG40.3 / ASTM A395, Cast Steel ASTM A216 Gr. WCB, ASTM A312 TP 304 / 316 : SCH.-40 |
| Flanges | Made from IS 2062 Plates, ASTM A105, CF8 (SS 304), CF8M (SS 316) |
| Flange Dimensions | DIN PN10/16, BS 10, ASME 150 / 300, Mixed |
| Lining | Moulded FEP, PFA |
| Lining Options | PVDF, PP, HDPE |
| Lining Thickness | Minimum 3.5 mm / 6.0 overall (±1.0 Lining Tolerance) |
| Lining Spark Test | 20 KVDC After lining |
| Hydraulic Test | 29 Kg/Cm2 After Lining |
| Flange Standard | As per ANSI B 16.5 / B 16.42 |
| Face to Face | As per ANSI B 16.5 # 150 |
| Other Drilling Standards | DIN 2632 / 2633, BS 10 Table D, E, F available on request |
Material of Construction
| Flange | Rotating DIN PN 10/16, BS10, ASME 300, Mixed |
| Extras | Earthing Studs/Lugs, Vent Extensions |
| Geometry | Non Standard Dimensions |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
PTFE Lined Eccentric Reducers
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a PTFE lined eccentric reducer and where is it used?
A reducer that changes line size while keeping one side flat, so the two bores share a tangent rather than a centreline. It is the reducer for horizontal runs: fitted flat-side-up it prevents gas or vapour pockets forming at the top of the line, and flat-side-down it lets the line drain completely instead of leaving liquid trapped at the step.
Which body, flange and lining materials are available?
Body in Ductile Iron GGG40.3 / ASTM A395, Cast Steel ASTM A216 Gr. WCB or ASTM A312 stainless. Flanges from IS 2062 plate, ASTM A105, CF8 (SS 304) or CF8M (SS 316). Lining in moulded FEP or PFA, with PVDF, PP and HDPE options, at a minimum 3.5 mm, 6.0 mm overall (±1.0 mm tolerance).
What sizes, flange standards and tests apply?
15 mm × 25 mm up to 200 mm × 250 mm, with larger sizes on request. Flange standard ANSI B16.5 / B16.42, face-to-face per ANSI B16.5 #150, dimensions in DIN PN10/16, BS 10, ASME 150/300 or mixed, with DIN 2632/2633 and BS 10 Table D, E, F drilling on request. Spark tested at 20 KVDC and hydraulically tested at 29 kg/cm² after lining.
Which way up should it be installed?
Flat side up on pump suction lines and anywhere vapour must not collect — this is the common case, and fitting it the wrong way round is a classic cause of pump cavitation. Flat side down where the line must drain fully, such as batch transfer lines that are emptied between runs. Mark the required orientation on the isometric, because once lagged the fitting is impossible to check.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS manufactures at its own works — since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. Stainless bodies, PVDF, PP and HDPE liners, rotating flanges, non-standard dimensions, earthing studs and vent extensions are built to order.
