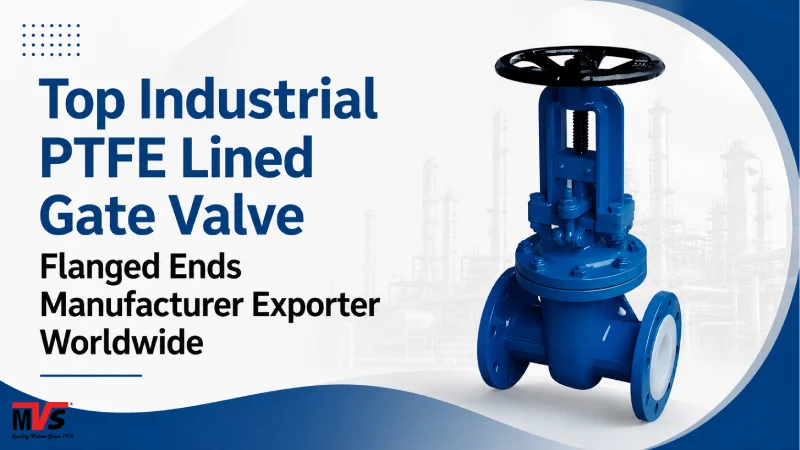

Top Industrial PTFE Lined Gate Valve Flanged Ends Manufacturer Exporter Worldwide

Mayur (Valves) System Private Limited is a leading PTFE Lined Gate Valve Manufacturer — focused on delivering industrial-grade fluoropolymer lined gate valves engineered for the most demanding corrosive chemical applications across India and global markets.

In aggressive chemical industries, the gate valve is one of the most relied-upon components for full-bore isolation and shut-off duty. But when the fluid passing through is highly corrosive — sulphuric acid, hydrochloric acid, chlorine, caustic, or other aggressive media — a standard metal gate valve simply cannot survive. Corrosion attacks the body and gate, pitting forms, seals fail, and the entire valve becomes a maintenance nightmare in a matter of months.

This is exactly where a properly engineered PTFE Lined Gate Valve quietly outperforms ordinary valves. By lining the wetted parts with high-performance PTFE, the valve gets all the mechanical strength of a robust metal body combined with the outstanding chemical resistance of fluoropolymer. At Mayur (Valves) System Private Limited, we manufacture lined gate valves built specifically for serious global chemical processing duty.

What Is a PTFE Lined Gate Valve

A PTFE Lined Gate Valve is a full-bore isolation valve where every part exposed to the fluid — the body interior, gate, and stem area — is lined with PTFE (Polytetrafluoroethylene). PTFE is widely used in chemical processing because of its near-universal chemical inertness, excellent thermal stability, and low friction properties.

In a lined gate valve, the PTFE layer acts as a physical and chemical barrier between the aggressive fluid and the metal body. The result is a valve that:

• Resists nearly all aggressive acids, alkalis, and solvents
• Offers full-bore flow with minimal pressure drop
• Provides reliable shut-off in corrosive service
• Protects the metal body from chemical attack
• Delivers long, dependable service life with minimal maintenance

This is exactly why PTFE lined gate valves have become a preferred choice in chemical, petrochemical, pharmaceutical, and specialty chemical industries worldwide.

Lining Material Options

While PTFE is the most commonly used lining, different applications sometimes call for different fluoropolymer linings. We manufacture lined gate valves in a range of lining materials:

• PTFE lined gate valves — for general aggressive chemical service
• PFA lined gate valves — for high-temperature and high-purity duty
• FEP lined gate valves — for transparent, smooth, corrosion-resistant lining
• Fluoropolymer lined gate valve options across various engineering grades
• Fluoroplastic lined gate valve designs for specialty chemical applications

This flexibility allows project teams to select the right lining based on chemical compatibility, temperature, pressure, and purity requirements. As a focused PTFE Lined Gate Valve Manufacturer, we treat lining selection as a serious engineering decision, not just a checkbox.

Rising Stem vs Non-Rising Stem Designs

Our gate valves are available in both rising stem and non-rising stem configurations, giving plant teams the flexibility to match the valve to their installation space, operating preference, and visual indication requirements.

Rising Stem (OS&Y) Design

In a rising stem design, the stem visibly rises and lowers as the valve is operated — offering a clear visual indication of whether the valve is open or closed. We manufacture this style as a trusted OS&Y type lined gate valve manufacturer, supplying these valves to facilities that prioritise clear position indication and easy maintenance.

Non-Rising Stem Design

In a non-rising stem design, the stem rotates in place without rising, which makes the valve more compact — ideal for installations with limited vertical space or where overhead clearance is restricted.

Both designs deliver the same reliable shut-off and chemical resistance, with the choice depending entirely on installation conditions and operational preference.

Key Features of Mayur PTFE Lined Gate Valves

Our PTFE Lined Gate Valves are engineered around features that genuinely matter in serious chemical service:

• Robust metal outer body for mechanical strength
• Precision PTFE lining for excellent chemical resistance
• Full-bore design for minimal pressure drop
• Available in rising stem and non-rising stem configurations
• Flanged end connections for global piping standards
• Multiple lining material options including PTFE, PFA, and FEP
• Compatible with manual handwheel, gear box, and actuator operation
• Long service life with simple maintenance

A lined gate valve is sometimes also referred to as a fluorine lined gate valve or fluorocarbon resin lined gate valves — all describing the same family of corrosion-resistant lined valves designed for tough chemical duty.

Common Industrial Applications

Our lined gate valves are widely used across industries where chemical aggressiveness pushes ordinary valves beyond their limits. Common applications include:

• Chemical and petrochemical plants
• Sulphuric acid, hydrochloric acid, and nitric acid handling
• Chlor alkali and bromine processing
• Pharmaceutical and fine chemical manufacturing
• Pigment, paint, and coatings industries
• Specialty chemical and intermediate plants
• Fertiliser and agrochemical facilities
• Effluent treatment and acid recovery systems
• High-purity and ultra-pure chemical processing lines

In each of these environments, the corrosion resistance and full-bore performance of a properly engineered lined gate valve quietly support safe, continuous, leak-free operation.

Major Valve Body Materials, Compositions & Applications

Choosing the right valve body material is just as important as selecting the right lining. The body decides how well the lined gate valve handles temperature, pressure, mechanical stress, and environmental exposure across different plant conditions.

Common Valve Body Materials

ASTM A351 gr. CF8M – 316 Stainless Steel Molybdenum steel with strong resistance to pitting in chloride solutions, plus excellent strength at elevated temperatures.

ASTM A216 gr. WCB – Carbon Steel Standard service material, usually supplied with CR13SS, stellite, or 316SS trim, with external coating for weather protection.

ASTM A216 gr. LCB Same corrosion properties as WCB, but preferred for low temperature ratings down to -46°C.

ASTM A351 gr. CF3M – 316L Low Carbon Stainless Steel Carbon content of 0.03% or less — ideal where annealing after welding is not practical.

ASTM A351 gr. CF8 – 304 Stainless Steel General-purpose, low-carbon, non-magnetic corrosion-resistant alloy. May be susceptible to chloride stress corrosion cracking.

ASTM A351 gr. CF3 – 304L Low Carbon Stainless Steel Can be used in as-welded condition without inter-granular corrosion concerns. Commonly used where field working is involved.

ASTM A351 gr. CN7M – Alloy 20 Superior resistance in 20–40% sulphuric acid service, with excellent corrosion resistance, mechanical properties, and fabricability.

ASTM A296 gr. CW-12M – Hastelloy C Outstanding performance in oxidising environments with strong resistance to pitting and stress corrosion cracking — even in weld joints.

ASTM A296 gr. M-35 – Monel Excellent resistance to many chemical applications and superior performance in saltwater environments.

Available Valve Body Material Categories

We supply lined gate valves in a wide range of body materials including Carbon Steel, Low Temperature Carbon Steel, Low Alloys, 13% Cr Stainless Steel, Austenitic Stainless Steel, Precipitation Hardening Stainless Steel, Duplex & Super Duplex Stainless Steel, Bronze, Nickel Alloys (825, 625, 718), and Titanium — allowing us to match every valve to the exact service condition for reliable long-term performance.

Global Reach Across Multiple Industries and Regions

Our PTFE lined gate valves serve a wide global market across multiple continents and chemical processing sectors.

In North America, our valves are supplied to the United States, Canada, and Mexico. Across Europe, we serve customers in Belgium, Germany, the European Union, the Netherlands, Spain, France, the United Kingdom, Denmark, Sweden, Finland, Poland, Austria, the Czech Republic, Romania, and Italy.

In the Middle East, our valves reach the United Arab Emirates, Qatar, Saudi Arabia, Oman, Bahrain, and Kuwait. Across Africa, we serve Egypt, Nigeria, Kenya, South Africa, Morocco, Tunisia, Ethiopia, Uganda, Tanzania, and many other markets.

In Asia and nearby regions, we supply to Indonesia, Vietnam, Malaysia, Thailand, the Philippines, Singapore, Kazakhstan, Sri Lanka, Japan, South Korea, and others. Our valves also reach Australia, New Zealand, Costa Rica, Colombia, Argentina, Chile, Guyana, Brazil, Panama, Azerbaijan, Turkey, Israel, Ireland, Greece, Jordan, Lebanon, Trinidad and Tobago, the Kyrgyz Republic, and Uzbekistan.

This wide global use clearly shows that our PTFE Lined Gate Valve designs perform reliably across many international standards, plant conditions, and aggressive chemical processing environments — making us a trusted PTFE Lined Gate Valve Manufacturer and exporter worldwide.

Why Choose Us

Here at Mayur (Valves) System Private Limited, PTFE lined gate valves are treated as serious chemical process components, not just standard isolation valves. Our valves are engineered using high-quality body materials, precision-applied PTFE, PFA, or FEP lining, and strict quality control protocols to deliver consistent corrosion resistance and reliable shut-off performance across continuous aggressive chemical service.

We focus heavily on lining integrity, dimensional accuracy, sealing performance, and compatibility with both rising stem and non-rising stem configurations, so every valve installed on your line meets demanding, project-grade requirements. We offer customisation across lining materials, stem designs, end connections, and actuation systems. From the first technical discussion to delivery and after-sales support, our team stays involved at every step — which is exactly why customers across India and global markets continue to choose Mayur (Valves) System Private Limited as their trusted PTFE Lined Gate Valve Manufacturer and exporter.

Conclusion

In aggressive chemical environments, gate valve selection directly decides plant safety, productivity, and long-term operating cost. A well-engineered PTFE Lined Gate Valve delivers exactly the combination of mechanical strength, chemical resistance, and reliable full-bore isolation that modern chemical plants demand. At Mayur (Valves) System Private Limited, we are committed to delivering precision-engineered lined gate valves trusted by chemical processing customers worldwide — backed by strong engineering, reliable supply, and dedicated technical support.

Looking for high-quality PTFE, PFA, or FEP lined gate valves with flanged ends for your chemical processing needs? Talk to our team at Mayur (Valves) System Private Limited today. Call +91 9998920298 or email mayurvalves@gmail.com for tailored valve solutions.
