3 Way Ball Valve
3 Way Ball Valve Manufacturer

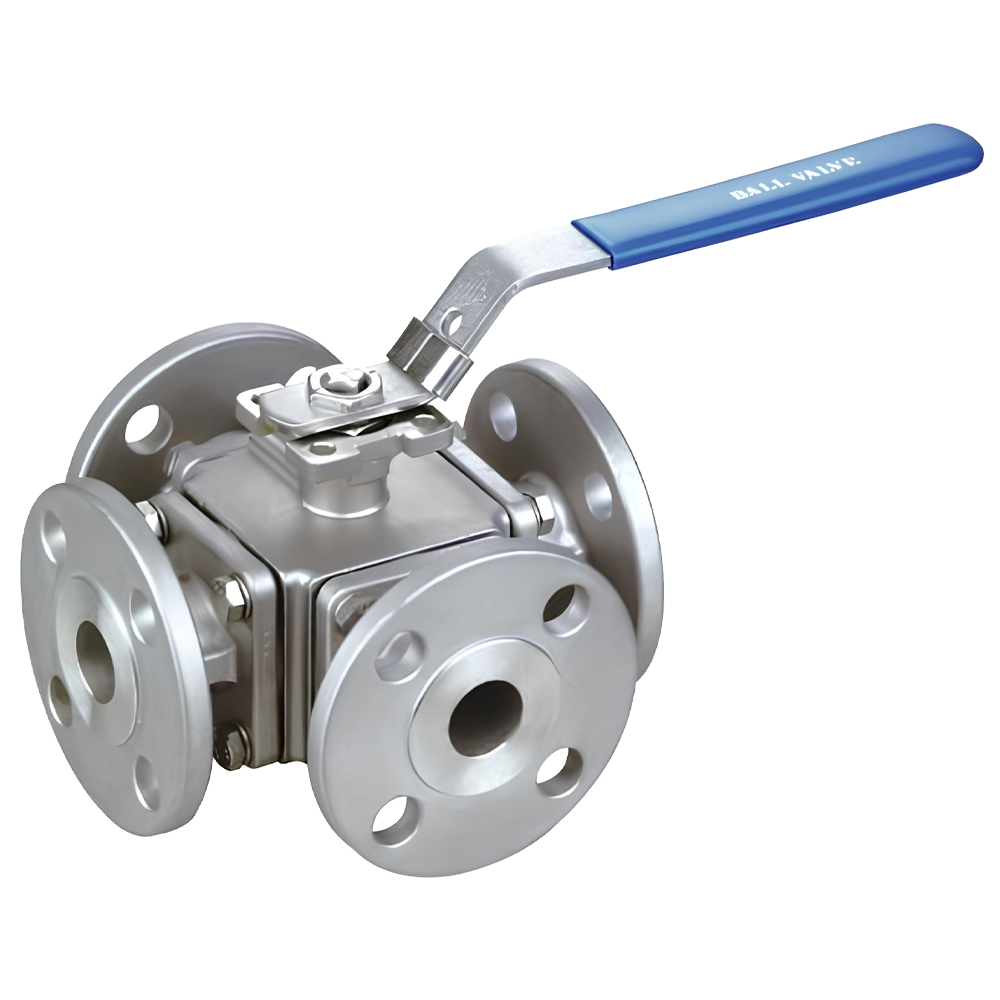

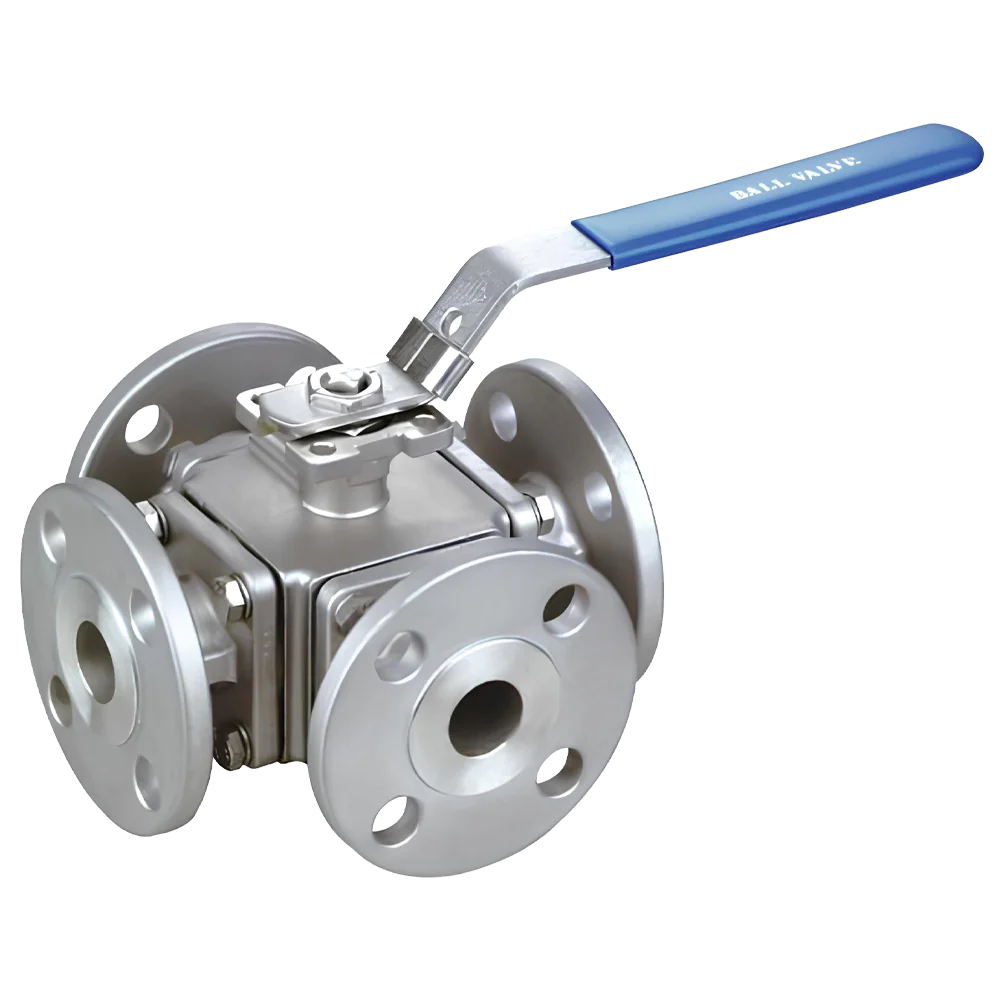

MVS Valves offers a highly reliable and precision-engineered 3 Way Ball Valve designed to handle complex flow control and diversion tasks in modern industrial systems. This valve is available in both L Port and T Port configurations, making it ideal for directing flow in multiple pathways depending on process requirements. Whether you require flow mixing, splitting, or diverting, the MVS 3 Way Ball Valve delivers optimal performance with minimal pressure loss.
Built to support flanged, screwed, and socket weld end connections, our 3 Way Ball Valve lineup is versatile and adaptable across a range of industries. The design is based on advanced floating ball valve technology and is offered in full bore options under ASME Class 150 and Class 300 pressure ratings.
Engineered for durability and smooth operation, our Carbon Steel Multiport Full Port Three Way Flanged Ball Valve Class 150 model is specifically built to withstand challenging applications involving chemicals, solvents, and industrial fluids. For operations where hygiene, corrosion resistance, and mechanical strength are critical, our Stainless Steel Multiport Full Port Three Way Flanged Ball Valve Class 150 stands out as the preferred choice across sectors like food processing, pharmaceutical, and water treatment.

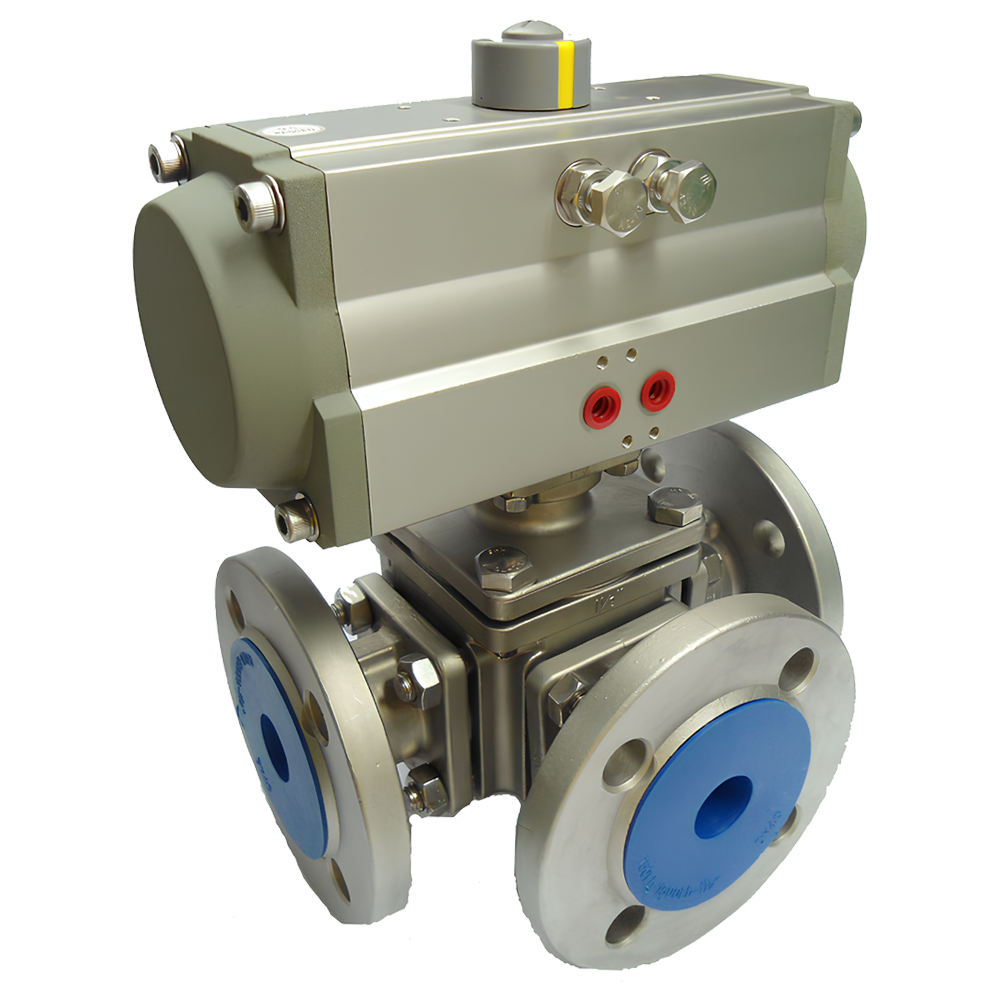

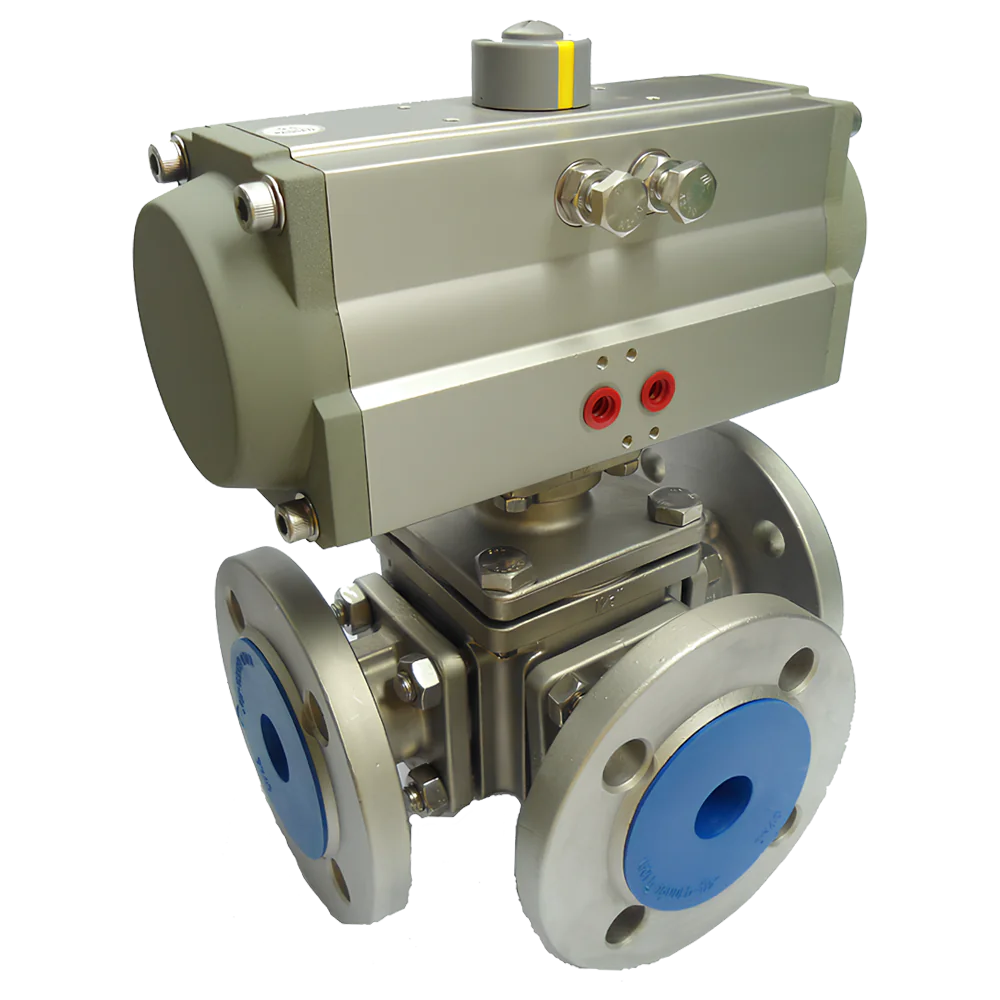

For automated and remote-controlled installations, the Pneumatic Multiport Full Port Three Way Flanged Ball Valve Class 150 option allows integration with pneumatic actuators, offering faster and more reliable control over fluid direction. Additionally, all MVS 3 Way Ball Valves can be equipped with Fire Safe Design and ISO 5211 actuator mounting pads, giving you the flexibility to use them with manual levers, gear operators, electric actuators, or pneumatic systems depending on the application’s automation level.
With its strong multiport body, bubble-tight shutoff capabilities, and long operating life, the MVS 3 Way Ball Valve is ideal for use in oil and gas refineries, petrochemical plants, power generation facilities, and general fluid control applications. Every valve is tested and manufactured to international standards, making sure consistent quality and exceptional performance across a wide spectrum of industrial operations.
Specification
| Specification | Details |
|---|---|
| Design Standard | BS EN ISO 17292 / ASME B16.34 |
| Inspection & Testing | BS EN ISO 12266–1 / BS 6755–1 |
| Face-to-Face Dimensions | ASME B16.10 / Manufacturer Standard |
| End Connections | Flanged: ASME B16.5 |
| Valve Size Range | 1" (DN25) to 6" (DN150) |
| Pressure Rating | 150# / 300# |
| Flow Port Options | L Port / T Port |
| Operation Type | Manual Handle / Pneumatic Actuator / Electric Actuator |
Material of Construction
| Valve Body | ASTM A216 WCB, ASTM A351 CF8 / CF8M / Duplex Steel / Exotic Alloys |
| Ball | ASTM A351 CF8 / CF8M, A182 F304 / F316 |
| Stem | ASTM A276 Type 304 / 316 Stainless Steel |
| Seats | PTFE, CFT, GFT, PEEK (as per application) |
| Gland Packing | PTFE / Graphite (Leak-proof Sealing) |
| Fasteners | ASTM A193 Gr. B7 / A194 2H, SS 304 / SS 316 |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
3 Way Ball Valve
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a 3 way ball valve and how does it work?
A 3 way ball valve has three ports and a ball drilled with an L or T shaped passage. Rotating the ball diverts flow from one outlet to another, mixes two inlets, or shuts the line off — replacing two or three separate two-way valves and the pipework between them. One quarter-turn actuator then operates the whole arrangement instead of several.
L port or T port — which should I specify?
An L port connects the inlet to one of two outlets, so it diverts: A to B, or A to C, and in some positions shuts off entirely. A T port connects all three ports or any two of them, so it can also mix two streams or feed both outlets at once. Choose L port for straightforward diverting between two destinations, T port where you need mixing or a both-ways position. State which you need at enquiry, because the ball is machined differently.
What size, pressure class and standards apply?
1″ (DN 25) to 6″ (DN 150) at Class 150# / 300#, with flanged ends to ASME B16.5 and face-to-face per ASME B16.10 or manufacturer standard. Designed to BS EN ISO 17292 / ASME B16.34 and inspected and tested to BS EN ISO 12266-1 / BS 6755-1. Body in ASTM A216 WCB, A351 CF8 or CF8M, duplex or exotic alloys; seats in PTFE, CFT, GFT or PEEK; gland packing PTFE or graphite.
How does a 3 way valve compare with using two separate valves?
One 3 way valve replaces two two-way valves plus the tee and the spool between them — fewer joints to leak, less space, less weight and one actuator instead of two. The trade-off is that a single failure takes out both flow paths, and the ball has a more complex passage that is harder to clean. For simple diverting duty the 3 way valve almost always wins on cost and footprint.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS manufactures at its own works — since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. L and T port configurations, exotic alloy bodies, and manual, pneumatic or electric actuated assemblies are built to order.
