Three Piece Ball Valve
Three Piece Ball Valve Manufacturer
MVS Valve brings you a high-performance Three Piece Ball Valve, engineered to offer precision flow control, long operational life, and simplified maintenance across industrial applications. Designed with a rugged three-piece body, this valve makes sure secure and leak-proof sealing under high-pressure conditions, making it a reliable choice for industries such as chemical processing, petrochemical plants, oil and gas installations, and power generation units.
Each Three Piece Ball Valve is manufactured with strong construction materials such as Carbon Steel, Stainless Steel, and Duplex Stainless Steel, and is available with Full Port Flanged End Connections as per Cl 150 and Cl 300 standards. The Carbon Steel Three Piece Ball Valve Full Port Flanged CL 150 is ideal for high-temperature and high-pressure fluid systems requiring strength and durability. For corrosion resistance and hygienic processing, the Stainless Steel Three Piece Ball Valve Full Port Flanged CL 150 delivers consistent and safe shutoff, especially in food-grade and chemical applications. The Duplex SS Three Piece Ball Valve Full Port Flanged CL 150 offers superior resistance to chlorides and harsh environments, making it suitable for offshore and high-stress environments.

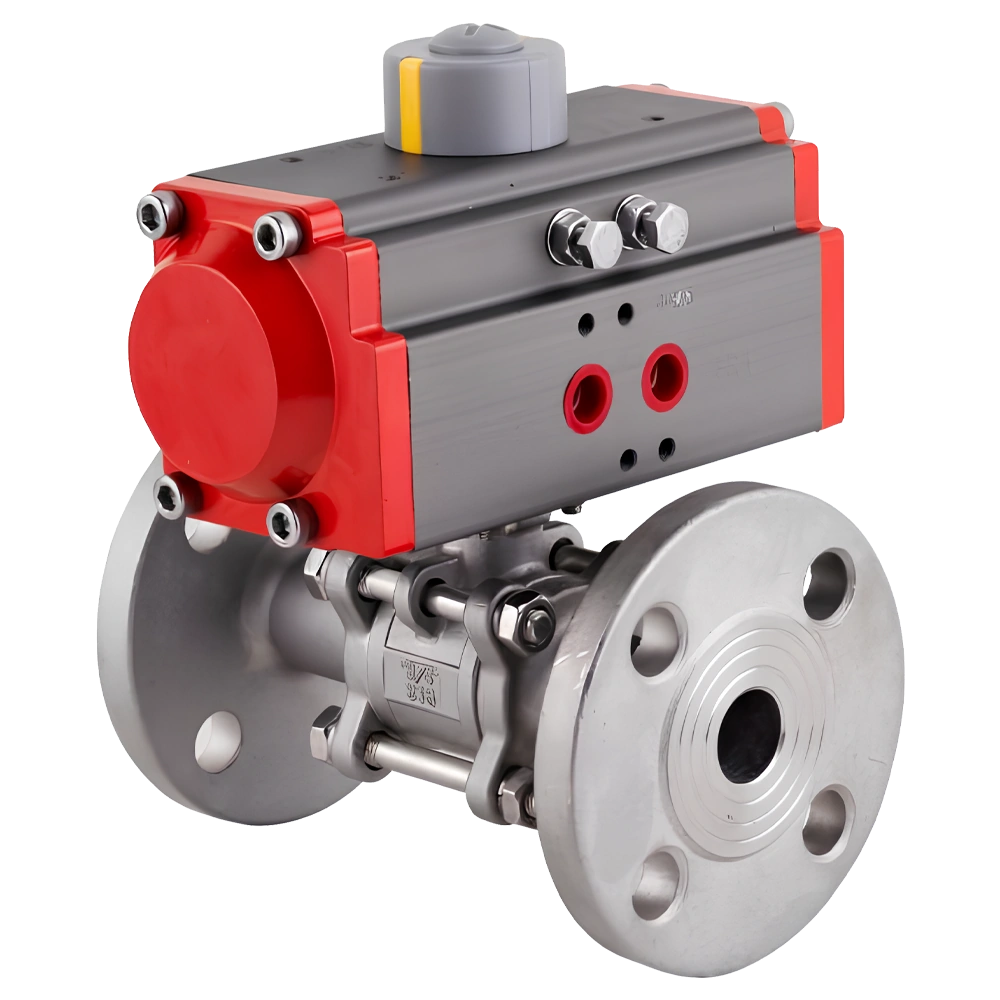

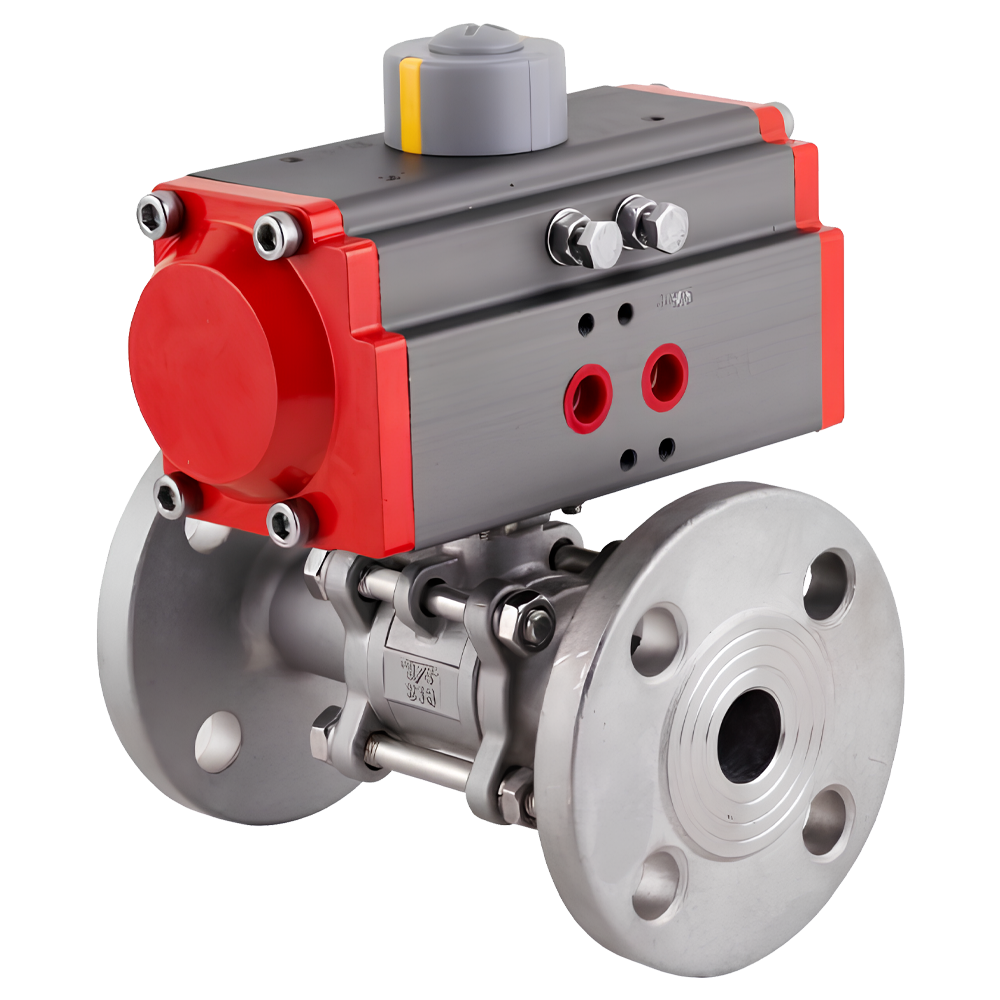

Our Pneumatic Three Piece Ball Valve Full Port Flanged CL 150 variant provides the benefits of rapid actuation and consistent shutoff performance in automated industrial setups. For enhanced safety and control, we also offer the SS ISO Mount Pad Fire Safe 3 Piece Ball Valve Full Port Flanged CL 150 – CL 300, which includes ISO 5211 actuator mounting pads, anti-static devices, and a certified fire-safe design that meets international safety regulations.
Key operational benefits include low torque requirements, quick response times, and a positive shut-off mechanism that ensures leak-free service. These valves feature gland type sealing arrangements for dependable sealing and can be provided with locking provisions for open/close positions upon request. Known for their longer smooth life and maintenance-friendly design, MVS Three Piece Ball Valves are a trusted choice where performance, safety, and longevity matter most. Whether it’s a manual or automated solution, our three-piece ball valves deliver exceptional reliability across a range of fluid types and working conditions. We make sure compatibility with your existing infrastructure, making installation and servicing easier and more efficient.
Specification
| Specification | Details |
|---|---|
| Valve Size Range | 1/2" to 12" |
| Pressure Rating (Class) | 150#, 300#, 600#, 900#, 1500# |
| End Connection Types | Flanged |
| Valve Body Design | Three-Piece Construction for Easy Maintenance |
| Operation Methods | Manual, Pneumatic, Electric Actuation |
| Operating Temperature Range | -20°C to 200°C (Suitable for Various Industrial Fluids) |
| Seal Materials | PTFE and Reinforced PTFE for Leak Tight Sealing |
Material of Construction
| Valve Body | Carbon Steel, Stainless Steel (Corrosion Resistant), Duplex Steel, Exotic Alloys |
| Ball | High-Quality Stainless Steel for Durability |
| Valve Seats | PTFE and Reinforced PTFE for Excellent Sealing |
| Stem | Stainless Steel |
| Handle | Carbon Steel with PVC Grip for Comfortable Operation |
| Seals & Gaskets | PTFE and Graphite |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
Three Piece Ball Valve
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a three piece ball valve and how does it work?
The body is made in three parts: two end caps that bolt to the pipework and a removable centre section holding the ball and seats. A quarter turn of the handle opens or closes the bore. Because the centre lifts out while the end caps stay flanged or welded in place, seats and seals can be replaced in situ without cutting the valve out or disturbing pipe alignment — which is the whole point of the design.
Which body, ball and seat materials are available?
Body in carbon steel, stainless steel, duplex steel or exotic alloys. Ball and stem in stainless steel. Seats and seals in PTFE and reinforced PTFE for leak-tight sealing, with PTFE and graphite gaskets. Handle in carbon steel with a PVC grip. Specify reinforced PTFE where the duty cycles frequently or the temperature runs toward the top of the range.
What size, pressure class and temperature range apply?
½″ to 12″ with flanged ends, in Class 150#, 300#, 600#, 900# and 1500# — a considerably wider pressure range than the one and two piece designs. Operating temperature is −20 °C to 200 °C, suitable for most industrial fluids. Operation is manual, pneumatic or electric.
When is a three piece valve worth the extra cost over a two piece?
Whenever taking the line out of service is expensive, or the media wears seats quickly — slurries, sticky process fluids, steam and high-cycle automated points. A seat change on a three piece valve is a bolt-off, drop-in job; on a two piece valve it usually means removing the valve entirely. It also carries higher pressure classes, so it may be the only option above Class 300.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS is a manufacturer — valves built at its own works since 1978, ISO 9001:2015 certified — exporting across several continents. The minimum order quantity is 20 pieces. Manual, pneumatic and electric actuated assemblies, exotic alloy bodies and special seat materials are built to order.
