Disc Check Valve
Disc Check Valve Manufacturer

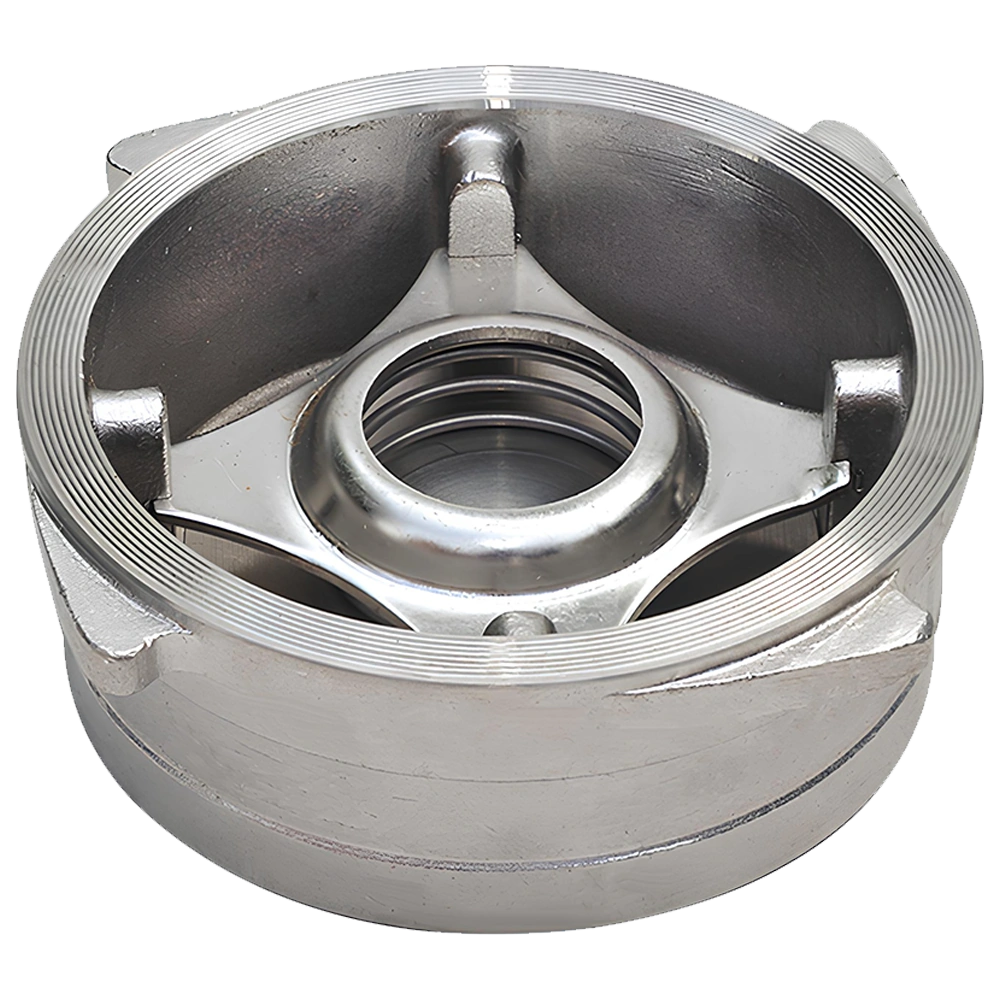

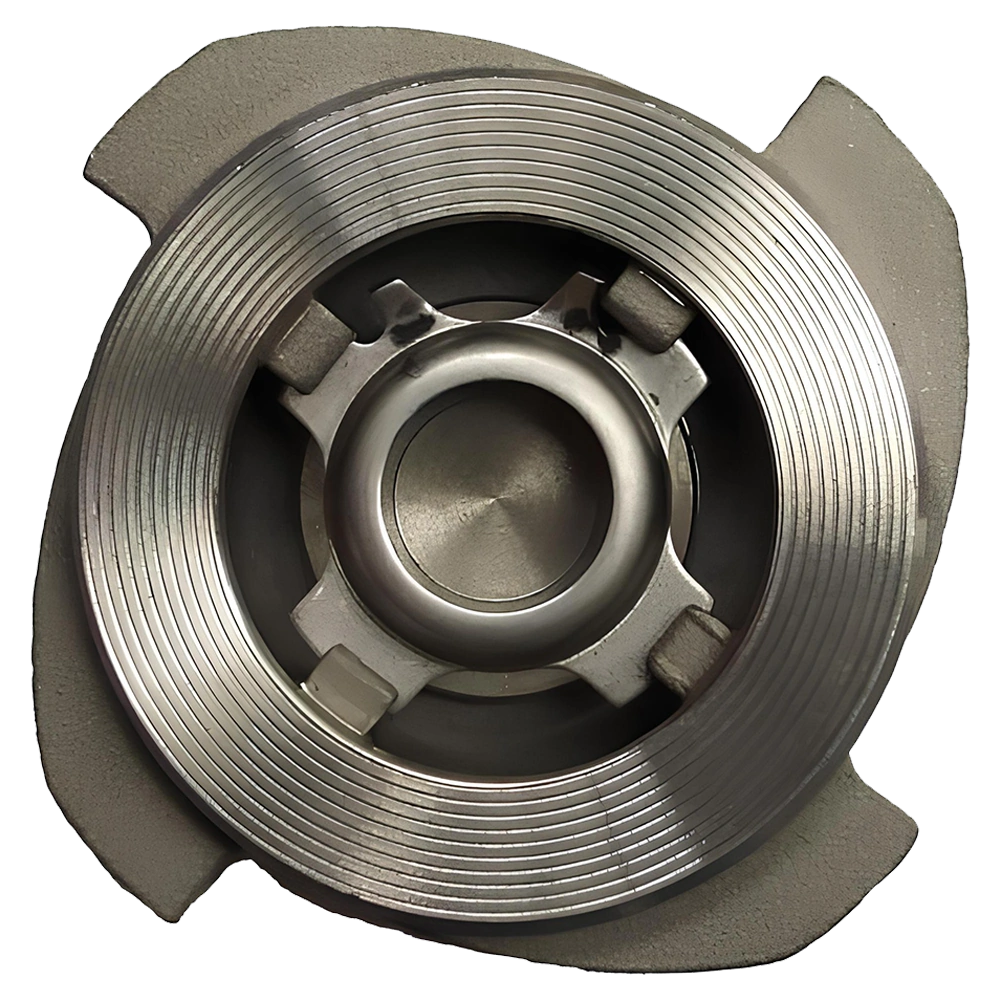

MVS Valves manufactures precision-engineered Disc Check Valves that offer compact design, reliable performance, and effective backflow prevention in demanding industrial systems. Designed for easy installation between flanges, these wafer flangeless sandwich type disco check valves are ideal for applications handling water, steam, gases, and various process fluids. Built as a stainless steel disc check valve wafer pattern, they are engineered to suit both vertical and horizontal pipelines, including downward flow conditions.
The design includes a spring-loaded disc mechanism that ensures quick closure upon flow reversal, minimizing pressure loss and eliminating the risk of system contamination. We offer configurations such as the Stainless Steel Spring Loaded Disc Check Valves and the SS 316 Spring Loaded Disc Check Valve Wafer Style, all constructed to deliver optimal performance under varying pressure and temperature conditions.
Available in Stainless Steel SS 316 wafer type non-return valve disc check valve options, our valves are offered with either metal seat or soft seat sealing, giving you flexibility based on your media and application. The wafer type stainless steel body spring tensioned disc check valve with metal sealing is especially suited for high-temperature applications, while soft seat options provide enhanced sealing for sensitive fluids.
MVS also provides DIN flange stainless steel disco check valves and ANSI flange stainless steel disco check valves, expanding compatibility across international pipeline standards. Every valve is tested as per API/ASME standards to ensure consistent quality, strength, and performance across all use cases.
For systems that require compact, low-maintenance, and dependable non-return solutions, our Stainless Steel Wafer Spring Assisted Disc Check Non-Return Valves, available in both metal and soft seat variants, provide long-term service with minimal wear. Whether it’s power plants, chemical lines, or fluid distribution systems, MVS Disc Check Valves ensure a secure and leak-proof experience without compromising on efficiency or reliability.
Specification
| Specification | Details |
|---|---|
| Valve Type | Wafer-style Disc Check Valve, spring-loaded |
| Size Range | DN 15 – DN 150 (½″ – 6″) |
| Pressure Rating | Up to 20 bar (300 psi) |
| Connection | Wafer (sandwich) between ANSI/PN flanges |
| Operating Media | Water, steam, condensate, oil, gases |
| Operating Temperature | Typically –10 °C to +200 °C (depending on seal) |
| Standards | API 598 tested; EN 12266‑1/D/E per request |
| Flow Characteristic | Low pressure drop; quick spring-assisted closure |
Material of Construction
| Body | Stainless Steel 304/316 (AISI 316) | Duplex SS; Soft-seated bodies |
| Disc | Stainless Steel 316 (metal/metal seat) | PTFE-lined disc, calibrated spring |
| Seat/Seal | Metal‑to‑metal standard | PTFE, EPDM, NBR, soft-seat options |
| Spring | Stainless Steel spring | Calibrated for service; alloys on request |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
Disc Check Valve
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a disc check valve and how does it work?
A wafer-style spring-loaded check valve in which a single disc moves along the axis of the bore, guided centrally, and is closed by a calibrated spring. There is no hinge and no swinging mass. It is the most compact check valve of all — sandwiched between two flanges — and its short, axial travel gives fast closure and a tight seal on small and medium clean lines.
Which body, disc, seat and spring materials are available?
Body in stainless steel 304/316, with duplex and soft-seated bodies available. Disc in 316 stainless for metal-to-metal seating, or PTFE-lined with a calibrated spring. Seat metal-to-metal as standard, with PTFE, EPDM and NBR soft-seat options. Spring in stainless steel, calibrated for the service, with alloy springs on request.
What size, pressure rating and temperature range apply?
DN 15 to DN 150 (½″–6″), rated up to 20 bar (300 psi), at approximately −10 °C to +200 °C depending on the seal. Wafer connection, sandwiched between ANSI or PN flanges. Tested to API 598, with EN 12266-1 rate D or E testing on request. Suitable media include water, steam, condensate, oil and gases.
Disc check or wafer check — which should I specify?
A disc check is the tighter and faster of the two on small clean lines up to 6″ — spring-assisted, axially guided and available with a metal-to-metal seat for steam and condensate. A wafer check valve covers a much wider size range, from 2″ up to 42″, and is the economical choice on larger bores. Below 6″ on clean service choose the disc check; above that, the wafer design.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS manufactures at its own works — since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. Soft-seated bodies, PTFE-lined discs, alloy springs and specific cracking pressures are built to order; state the available differential when you enquire.
