PTFE Sleeved Plug Valve
PTFE Sleeved Plug Valve Manufacturer
MVS Valve designs and manufactures precision-engineered PTFE Sleeved Plug Valves, offering a non-lubricated, quarter-turn solution for shut-off applications across corrosive and critical flow processes. These valves are lined internally with a chemically inert PTFE sleeve, which provides a bubble-tight seal around the plug while ensuring resistance to a wide range of aggressive fluids. The compact design and full port construction allow for unobstructed flow and minimal pressure drop, making them ideal for applications that demand cleanliness, durability, and consistent performance.
Built to meet stringent API 6D and API 599 standards, the PTFE Sleeved Plug Valve is available in Class 150 and Class 300 pressure ratings and size ranges from ½” to 16″. Whether used in chemical processing, petrochemicals, pharmaceuticals, or power plants, these valves deliver long service life with minimal maintenance thanks to their non-lubricated construction.

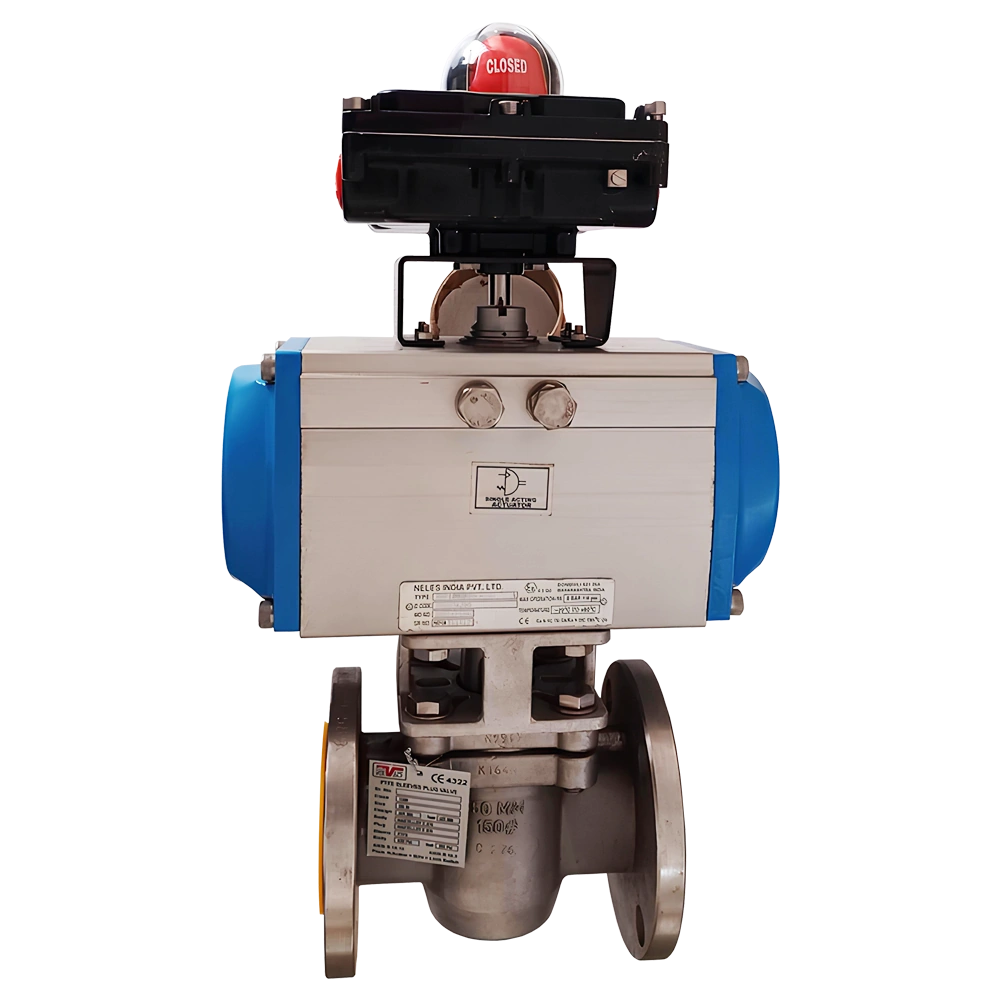

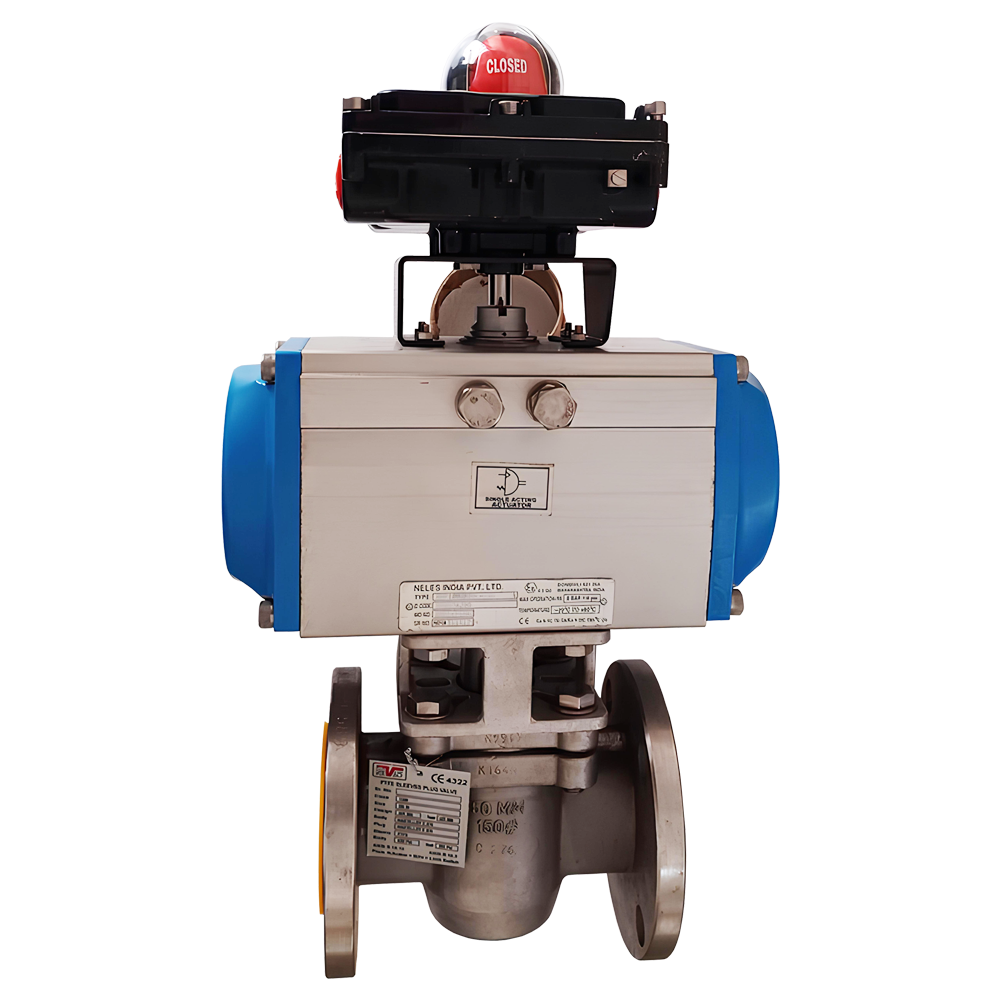

Material flexibility is a key advantage, and we offer specialized configurations such as carbon steel two-way plug valves with PTFE Sleeve class 150, stainless steel two way sleeved plug valve class 300, and super duplex Sleeved plug valve with gear box class 150 for highly corrosive and abrasive media. for automated solutions, our Hastelloy Sleeved plug valve with pneumatic actuator offers excellent flow control with high corrosion resistance. we also offer niche variants including Nickel Monel full port Sleeved plug valve class 300 and alloy steel jacketed sleeved plug valve class 150, catering to applications involving extreme temperatures or media requiring insulation.
each Sleeved male valve class 150 class 300 is tested to ensure tight shut-off and long-term reliability, even in fluctuating operating conditions. these valves operate smoothly without the need for continuous lubrication and are suited for both manual and automated actuations. mvs’s PTFE Sleeved plug valves class 150 and PTFE Sleeved plug valve class 300 reflect a commitment to innovation, quality, and customer-specific engineering, providing robust solutions to meet today’s industrial challenges.
Specification
| Specification | Details |
|---|---|
| Standards | API 6D, API 599 face‑to‑face ASME B16.10, flange ASME B16.5 |
| Testing Standard | API 598 |
| Size Range | ½″–16″ (15 mm–400 mm) |
| Pressure Class | Class 150#, 300# |
| Temperature Range | –29 °C to +180 °C |
| End Connections | Flanged (ASME B16.5 / DIN), Screwed or Threaded, Socket‑weld optional |
| Operation Modes | Manual (lever/handwheel), worm‑gear, pneumatic, electric |
| Flow Direction | Bidirectional |
| Features | 360° metal‑edge sleeve retention, no body cavity, self‑cleaning |
| Customization | Materials, flange size, trims tailored per project need |
Material of Construction
| Body & Bonnet | Gmonite, Nickel, Inconel, Hastelloy, Monel, Super Duplex, Alloy Steel, Stainless Steel, Carbon Steel |
| Plug / Cartridge | Gmonite, Nickel, Inconel, Hastelloy, Monel, Super Duplex, Alloy Steel, Stainless Steel, Carbon Steel |
| Sleeve | PTFE, Glass PTFE, Carbon PTFE, Graphite PTFE, RBC 006, TFM |
| Stem Packing | PTFE or Graphite |
| Seals & Diaphragms | PTFE, PTFE/Graphite blends, flexible metal/PTFE diaphragms |
| Fasteners | SS bolts, nuts (e.g. A4‑70), washers, adjustment screws |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry

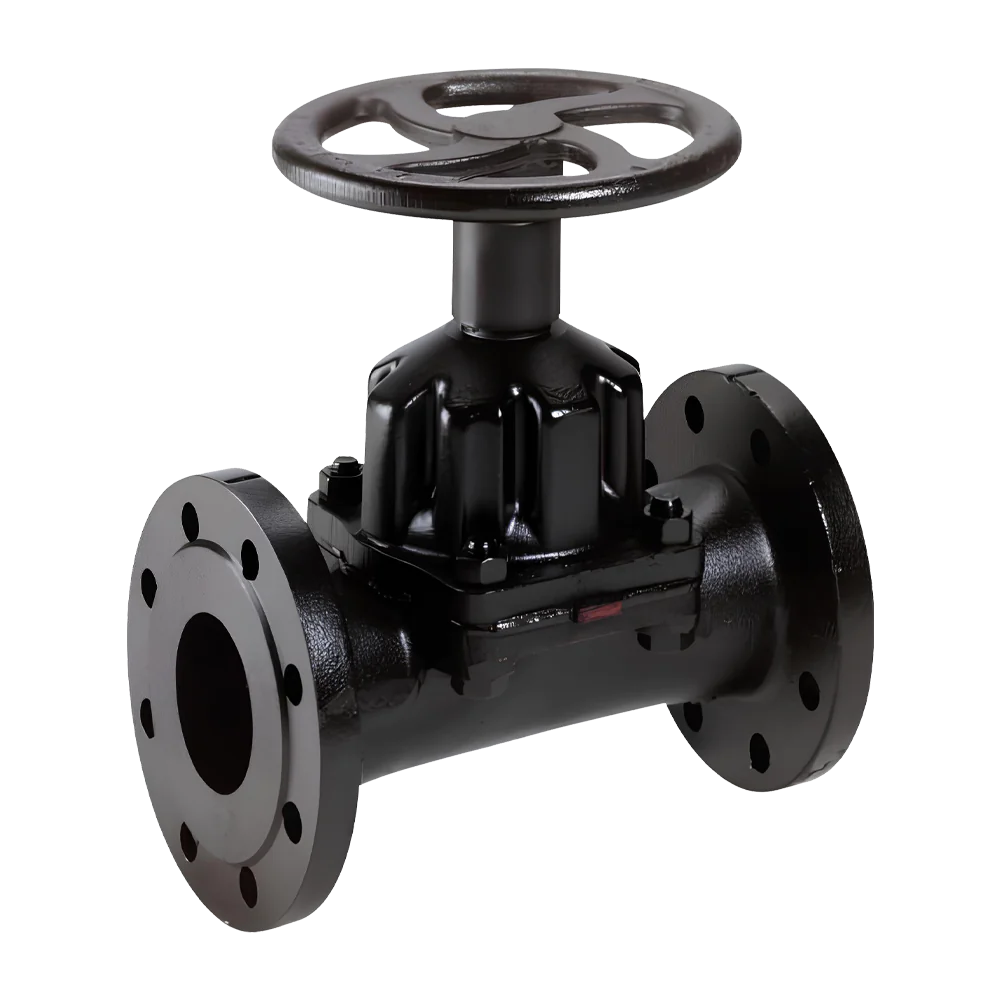

Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
PTFE Sleeved Plug Valve
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a PTFE sleeved plug valve and how does it work?
A quarter-turn plug valve in which a replaceable PTFE sleeve sits between the tapered plug and the body, doing the sealing instead of injected sealant. The plug turns against PTFE rather than metal, so torque stays low and constant and there is nothing to re-lubricate. The sleeve is retained by a 360° metal edge, and the design has no body cavity — so there is nowhere for media to collect, and the turning action is self-cleaning.
Which body, plug and sleeve materials are available?
Body, bonnet and plug in carbon steel, stainless steel, Gmonite, Nickel, Inconel, Hastelloy, Monel, super duplex or alloy steel. Sleeve in PTFE, glass-filled PTFE, carbon PTFE, graphite PTFE, RBC 006 or TFM. Stem packing PTFE or graphite; seals and diaphragms in PTFE, PTFE/graphite blends or flexible metal/PTFE; fasteners stainless (A4-70). The sleeve compound is selected for the media and temperature, so state both.
What size, pressure class, temperature and standards apply?
½″ to 16″ (15–400 mm) at Class 150# and 300#, over a temperature range of −29 °C to +180 °C. Built to API 6D and API 599, with face-to-face per ASME B16.10 and flanges per ASME B16.5, and tested to API 598. Flow is bidirectional. End connections flanged (ASME B16.5 / DIN), screwed or threaded, with socket-weld optional. Operation manual by lever or handwheel, worm-gear, pneumatic or electric.
Why is a sleeved plug valve preferred in chlorine and aggressive chemical service?
Because there is no sealant to be attacked or washed away, no body cavity where media can collect and concentrate, and the only wetted non-metallic is PTFE, which resists almost everything. Torque also stays constant instead of rising as sealant dries out, so an actuator sized on day one is still correctly sized years later. Where a lubricated plug valve would need a compatible sealant and a maintenance routine, the sleeved design needs neither.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS is a manufacturer — valves built at its own works since 1978, ISO 9001:2015 certified — exporting across several continents. The minimum order quantity is 20 pieces. Materials, flange sizes and trims are tailored per project, including Hastelloy, Monel, Inconel and super duplex bodies and the full range of sleeve compounds.
