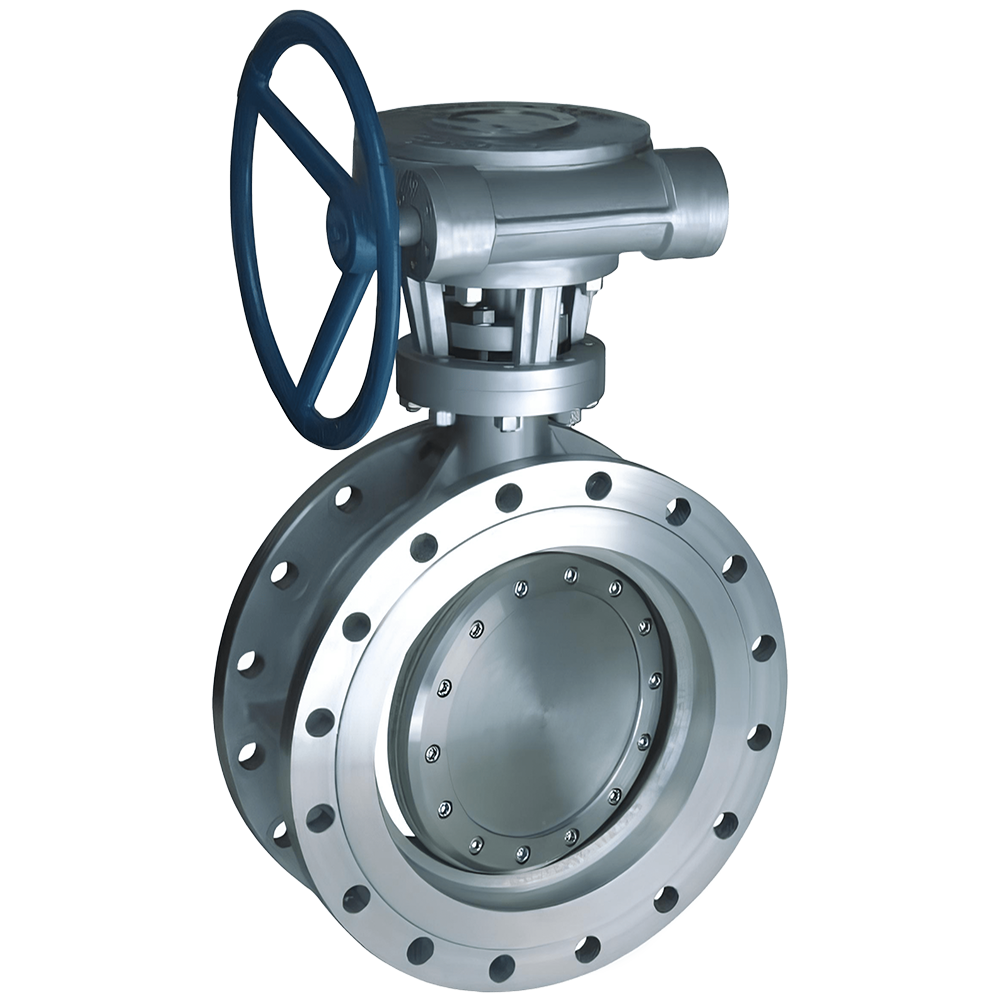

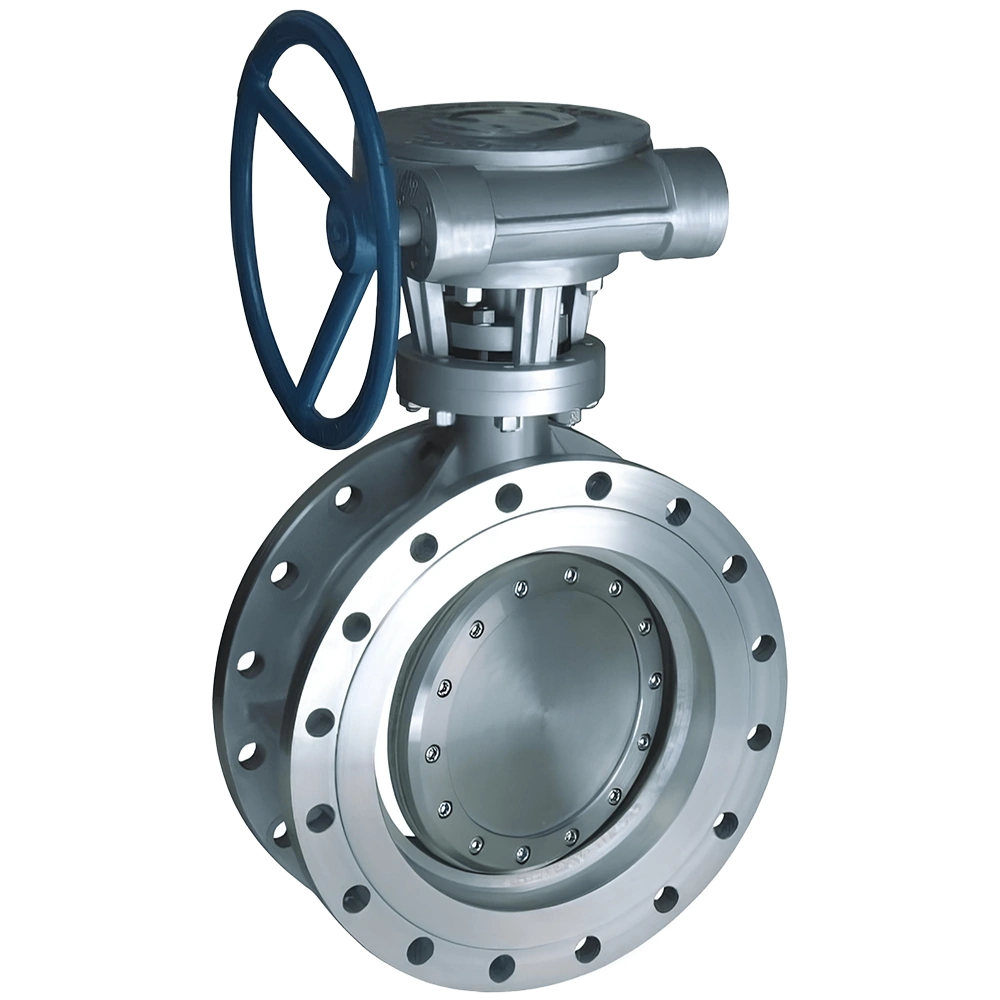

High Performance Offset Disc Butterfly Valve
High Performance Offset Disc Butterfly Valve Manufacturer
MVS Valves’ High Performance Offset Disc Butterfly Valve is meticulously engineered to offer precise control, reliable shut-off, and extended operational life in critical flow applications. Designed with a double offset disc, this valve significantly reduces seat contact during operation, which minimizes wear and enhances long-term sealing performance. This advanced design makes it particularly suitable for high-pressure and high-temperature pipelines across various sectors, including oil & gas, chemical, and power industries.
Mayur (Valves) System Private Limited, an ISO 9001:2015-certified company, has been a trusted Offset Disc Butterfly Valve manufacturer and exporter since 1978. With exports to 40+ countries worldwide, we focus on timely delivery, consistent quality, and a smooth customer experience. Our valves serve clients across Europe, North America, the Middle East, Southeast Asia, Russia, and other international markets, supporting diverse industrial applications.
Our High Performance Butterfly Valve is available in different construction types such as Double Flanged Short Pattern, Wafer Butterfly Valve, and Lug Style Butterfly Valve, providing installation flexibility for both new systems and retrofit projects. Whether you’re managing aggressive media, elevated temperatures, or fluctuating pressures, this valve offers exceptional resilience and adaptability. Offered with options like high-performance metal seated butterfly valve for extreme conditions or soft-seated PTFE versions for chemical compatibility, it serves a wide spectrum of industrial needs.
MVS makes sure every valve complies with international standards and offers options for manual, pneumatic, or electric actuation to meet specific operational demands. With robust fire-safe configurations and tight shut-off capabilities, this valve excels in both safety and efficiency. The double offset geometry not only delivers enhanced torque characteristics but also ensures smooth cycling, which is essential for automated operations.
Specification
| Specification | Details |
|---|---|
| Valve Type | Double Offset Disc High Performance Butterfly Valve |
| Design Standard | API 609 Category B |
| Pressure Rating | ANSI B16.34 / ANSI 300 |
| Face to Face | ANSI B 16.10 / ISO 5752 TAB-4 / AWWA C504 |
| Top Flange | ISO 5211 |
| Testing Standard | API 598 / ANSI / FCI 70-2 / EN 12266 PT-1 / BS 6755 / AWWA C504 |
| Flange Standard | ANSI B 16.5, EN 1092-1&2, IS6392, BS4504, AWWA C207 |
| Fire Safe Testing | API 607 |
| Size Range | DN 80 to DN 1800 (Wafer, Lug, Flanged) |
| Seat Leakage | Tight Shut Off |
| Operation | Handlever, Gear Box, Pneumatic/Electric Actuator |
Material of Construction
| Body Type | Wafer, Lug, Double Flanged Short Pattern |
| Body MOC | SGI / WCB / CF8 / CF8M |
| Seat Material | EPDM, Viton, Nitrile, Neoprene, Hypalon, PTFE, Glass-Filled PTFE (Up to 600 mm) |
| Disc Material | SS 304 / SS 316 / SS 410 |
| Shafts | Solid Stub Shafts, AISI 410 / 17-4 PH / SS316 |
| Bearings | Self Lubricating (Steel+PTFE), Optional Bronze / Al. Bronze |
| Clamping Ring | Carbon Steel IS 2062 / A 516 Gr. 70 / SS 304 / SS 316 |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
High Performance Offset Disc Butterfly Valve
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a high performance offset disc butterfly valve and how does it work?
A double offset design: the shaft sits behind the disc face and off the bore centreline, so the disc cams away from the seat the instant it starts to open instead of rubbing across it. That removes the wear that limits a concentric valve and allows far higher pressure and temperature. It gives tight shut-off with the compactness of a butterfly valve, in duties that would otherwise need a ball or gate valve.
Which body, disc and seat materials are available?
Body in SGI, WCB, CF8 or CF8M. Disc in SS 304, SS 316 or SS 410. Seat materials EPDM, Viton, Nitrile, Neoprene, Hypalon, PTFE and glass-filled PTFE up to 600 mm. Body styles are wafer, lug or double flanged short pattern, so the same valve can be specified for in-line, end-of-line or load-carrying service.
What size, pressure rating and standards apply?
DN 80 to DN 1800 in wafer, lug and double flanged bodies, rated to ANSI B16.34 / ANSI 300. Designed to API 609 Category B and tested to API 598, FCI 70-2, EN 12266 PT-1, BS 6755 and AWWA C504, with tight shut-off. Operation by handlever, gearbox, or pneumatic and electric actuator.
How does it compare with a concentric butterfly valve?
A concentric valve such as the wafer or double flanged design is limited to about PN 10–16 and its disc rubs the liner through the whole stroke, so it wears in high-cycle or high-differential service. The double offset design runs to ANSI 300, tolerates higher temperature, and lasts far longer where the valve is cycled often. It costs more, and for low-pressure water or HVAC duty a concentric valve remains the sensible choice.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS manufactures at its own works — since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. Wafer, lug and double flanged bodies, glass-filled PTFE seats, large diameters and gear or actuated assemblies are built to order.
