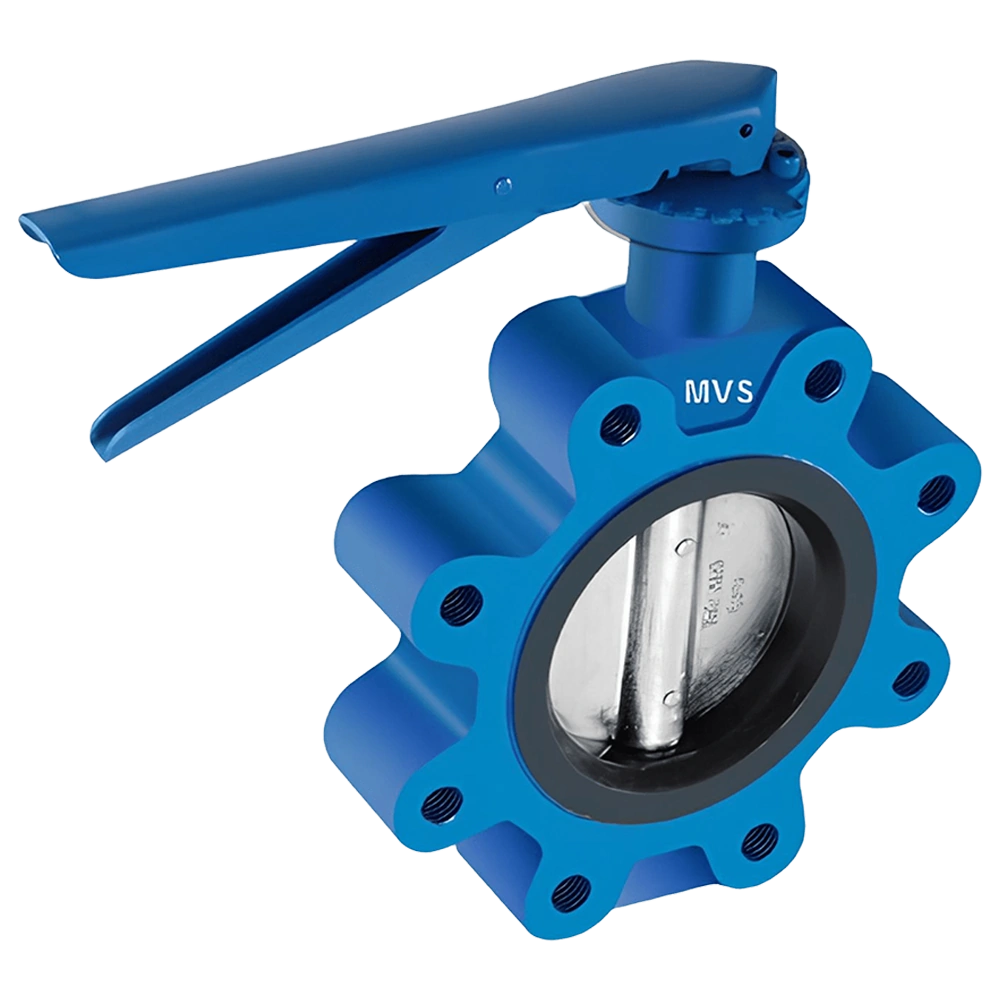

Lug Style Butterfly Valve
Lug Style Butterfly Valve Manufacturer
MVS Valves Lug Style Butterfly Valve is engineered for high performance and reliability across diverse pipeline systems, ensuring uninterrupted flow control in industrial, commercial, and utility-grade applications. Designed in compliance with API 609 and MSS-SP-67 standards, this lug type butterfly valve features a durable cast-body with precision-threaded lugs, allowing secure installation and dead-end service without the need for downstream flanging. Its compact body fits seamlessly in tight piping layouts, while the centrally mounted disc guarantees optimal sealing with minimal torque.
Available in a wide size range from DN 50 to DN 1200, the valve supports working pressures up to 150 psi and can be operated manually or automatically through lever, gearbox, pneumatic, or electric actuation methods. It is ideally suited for water distribution, HVAC systems, chemical processing, and low-pressure gas pipelines. What sets MVS apart is the integrally moulded body with exceptional seat retention and sealing integrity.
Every Lug Style Butterfly Valve is manufactured with the industry’s most trusted materials including Carbon Steel, SG Iron, and Stainless Steel (CF8 and CF8M). These options provide excellent corrosion resistance, mechanical strength, and compatibility with aggressive media. For enhanced sealing reliability, the valve comes with a variety of resilient rubber liner seat options like Black Nitrile, EPDM, Viton, Hypalon, and Silicon, ensuring performance across a wide range of temperatures and fluids.
In addition, the valve is equipped with a stainless steel pad per ISO 5211, allowing easy integration with standardized actuators and mounting systems. This makes it highly versatile for automated flow control operations in demanding industries. Whether it’s in municipal water projects, thermal fluid systems, or light chemical applications, the lug type butterfly valve from MVS Valves is designed to deliver exceptional flow control, resistance to wear, and long-term durability.
MVS Valves is committed to delivering superior butterfly valve technology by combining expert engineering, precision manufacturing, and strict quality testing. Each valve is carefully checked for leak-tight performance and durability, ensuring that customers receive only the best in flow management solutions.
Specification
| Specification | Details |
|---|---|
| Valve Type | Lug-style concentric butterfly valve |
| Size Range | 2″–50″ (DN 50–DN 1200) |
| Pressure Rating | Up to 150 psi (10 bar); dead-end service approx. 75 psi |
| Standards | API 609 (Class A/B), MSS‑SP‑67, ISO 5211 mounting pad; tested to API 598, EN 12266‑1, ISO 5208 |
| Face‑to‑Face | API 609 / EN 558‑1 Series 20 per ISO standards |
| Face Connections | Lugged ends per ANSI/BS/DIN/JIS flanges |
| Shut-off Rating | Class VI bubble-tight performance |
| Actuation | Manual lever or gear; pneumatic/electric actuation optional |
| Flow Media | Water, HVAC fluids, gases, light chemicals |
| Operating Temp | –29 °C to +200 °C (depends on seal material) |
Material of Construction
| Body | Ductile Iron (ASTM A536); Carbon Steel (WCB); CF8/CF8M SS | CF3/CF3M, Alloy 20, Duplex/Super Duplex, Hastelloy C-276, Titanium |
| Disc | Ductile Iron, Aluminum Bronze, 316 SS | Hastelloy, special alloys |
| Seat / Liner | EPDM, NBR, Viton | PTFE, silicone, Hypalon, metal seat liners |
| Stem / Shaft | Stainless Steel (e.g., 410/316, A276‑410) | Duplex SS or Monel |
| Bushings & Seals | PTFE bushings; NBR/EPDM O‑rings | Graphite, high-temp elastomers |
| ISO Mounting Pad | Stainless steel pad per ISO 5211 | Enhanced alloy or reinforced pad |
| Coating | Epoxy powder on ductile iron | Special linings for potable or aggressive media |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
Lug Style Butterfly Valve
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a lug style butterfly valve and how does it work?
A concentric butterfly valve whose body carries threaded lugs around its rim, so each pipe flange bolts to the valve independently rather than through it. A quarter turn swings the disc into or across the flow. Because each side is bolted separately, downstream pipework can be removed while the valve still holds line pressure — which is what makes it the standard choice for end-of-line service and maintenance isolation points.
Which body, disc and seat materials are available?
Body in Ductile Iron (ASTM A536), Carbon Steel (WCB) or CF8/CF8M stainless, with CF3/CF3M, Alloy 20, duplex and super duplex on request. Disc in ductile iron, aluminium bronze or 316 stainless, with Hastelloy and special alloys available. Seat and liner in EPDM, NBR, Viton, PTFE, silicone, Hypalon or metal. Stem in 410/316 stainless, duplex or Monel, with PTFE bushings and NBR/EPDM O-rings, or graphite and high-temperature elastomers.
What size, pressure rating and temperature range apply?
DN 50 to DN 1200 (2″–50″), rated up to 150 psi (10 bar), with dead-end service to approximately 75 psi. Operating temperature −29 °C to +200 °C depending on seal material. Shut-off is Class VI bubble-tight. Built to API 609 (Class A/B) and MSS-SP-67 with an ISO 5211 mounting pad, tested to API 598, EN 12266-1 and ISO 5208. Bodies carry an epoxy powder coating, with special linings available for potable water or aggressive media.
Why is the dead-end pressure rating lower than the line rating?
With downstream pipework removed, the seat alone holds the full line pressure and there is no opposing flange to support the liner. That is why dead-end service is limited to about 75 psi against 150 psi in-line. If your isolation point will regularly sit open-ended at higher pressure, say so at enquiry — a double flanged body or a different valve type may be the safer specification.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS is a manufacturer — building valves at its own works since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. Special alloys, seat materials, potable-water linings and pneumatic or electric actuated assemblies are built to order.
