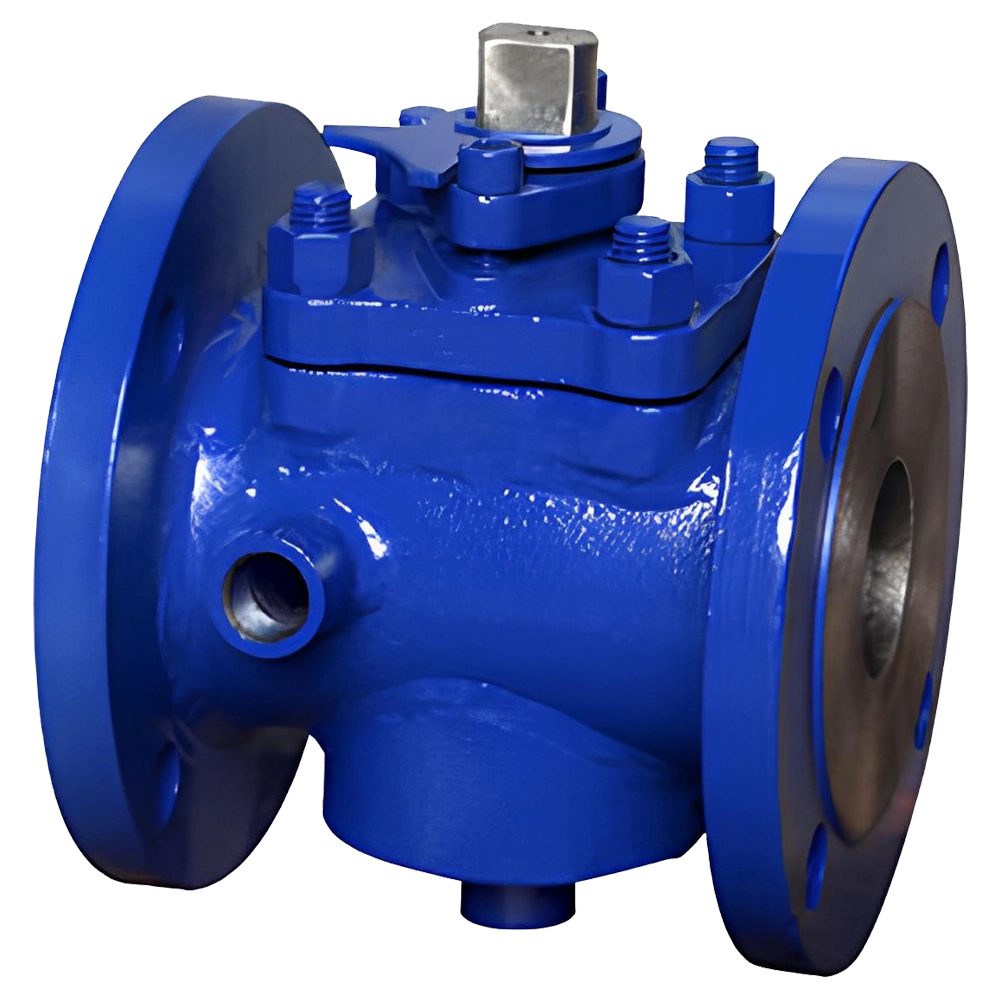

Lubricated Plug Valve
Lubricated Plug Valve Manufacturer
MVS Valve offers a high-performance Lubricated Plug Valve engineered for reliable shut-off in critical industrial systems. Designed for use in petroleum refining, chemical processing, water treatment, and gas handling, our lubricated plug valves are built with a tapered plug mechanism that enables precise flow control and long-term sealing performance. With full metal-to-metal seating and a built-in lubrication system, the valve ensures smooth operation even under extreme pressure and temperature conditions.
The internal design features a single moving component—the plug—which, along with a continuous lubricating film between the plug and the body, ensures minimal wear and prevents contamination. This configuration is highly effective in resisting corrosion and avoiding leakage, especially in processes involving slurries or corrosive media. Manufactured in compliance with API 6D, ISO, and BS standards, these valves meet international performance expectations and are available with flanged ends in a wide range of materials and pressure classes.
we manufacture various options to meet demanding operational needs, including the API 6d industrial inverted high pressure balanced lubricated plug valve, suitable for heavy-duty applications. clients can also opt for high-grade variants such as the duplex API 6d industrial inverted high pressure balanced lubricated plug valve class 300 and nickel alloy API 6d industrial inverted high pressure balanced lubricated plug valve class 600, both engineered for enhanced corrosion resistance. for higher-pressure systems, we offer the stainless steel API 6d industrial inverted high pressure balanced lubricated plug valve 6d industrial inverted high pressure balanced lubricated plug valve class 1500, super duplex API 6d industrial inverted high pressure balanced lubricated plug valve 6d industrial inverted high pressure balanced lubricated plug valve class 2500, and carbon steel API 6d industrial inverted high pressure balanced lubricated plug valve 6d industrial inverted high pressure balanced lubricated plug valve class 900.
Every valve is manufactured with precision machining and stringent quality checks to ensure zero leakage and consistent performance. Whether operated manually or fitted with actuators, our lubricated plug valves guarantee strength, reliability, and long service life, making them a smart choice for industries that cannot compromise on flow control integrity.
Specification
| Specification | Details |
|---|---|
| Size Range | Flanged ends: 15 mm to 300 mm |
| Design Standards | BS 5158, API 6D, ISO 14313, API 599, BS 5353 |
| Face‑to‑Face | BS EN 558‑1 |
| Testing Standard | EN 12266‑1 / BS 6755‑1 |
| Pressure Rating | Class 150 |
| Port Type | Two‑Way |
| End Connections | Flanges per BS 10 Table D, F; ANSI/ASME B16.10 Cl 125; DIN 2532 PN 10/16; BS 4504 PN 10 |
| Lubrication | Integrated system with Lub‑Seal for LPG, ammonia, high‑temp; optional service‑specific sealant |
Material of Construction
| Body / Cover / Gland | Cast Iron, Cast Steel (WCB), SS304 (CF8), SS316 (CF8M) |
| Plug | Cast Iron, Cast Steel (WCB), SS304 (CF8), SS316 (CF8M) |
| Shim | Mild Steel, Nickel Plated |
| Gland Packing | Rubberized Asbestos |
| Gasket | Compressed Asbestos |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
Lubricated Plug Valve
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a lubricated plug valve and how does it work?
A quarter-turn valve with a tapered plug seated in the body, sealed by a sealant injected through a fitting in the stem. The sealant fills the clearance between plug and body, forming the seal and lubricating the turn. Because the seal can be renewed by injecting more sealant without taking the valve out of the line, it holds up well in dirty hydrocarbon service and at pressures where an unlubricated plug would be very hard to turn.
Which body and trim materials are available?
Body, cover and gland in Cast Iron, Cast Steel (ASTM A216 Gr. WCB), SS 304 (CF8) or SS 316 (CF8M). The sealant must be compatible with the process fluid — that compatibility, not the body material, is usually the deciding factor, so tell us the media when you enquire.
What size, pressure class, end connections and standards apply?
15 mm to 300 mm with flanged ends at Class 150. Flanges to BS 10 Table D and F, ANSI/ASME B16.10 Class 125, DIN 2532 PN 10/16 or BS 4504 PN 10. Designed to BS 5158, API 6D, ISO 14313, API 599 and BS 5353, and tested to EN 12266-1 / BS 6755-1. MVS is ISO 9001:2015 certified.
Lubricated or sleeved — which should I choose?
A lubricated valve suits higher pressure, larger sizes and dirty hydrocarbon service, and its seal can be restored in the line — but it must be re-lubricated on schedule and the sealant has to suit the media. A PTFE sleeved plug valve needs no lubrication at all, keeps torque low and stable, and is the right choice for chemical service and wherever maintenance access is poor. In chlorine service sealant compatibility usually rules the lubricated design out.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS has manufactured valves at its own works since 1978, is ISO 9001:2015 certified and exports across several continents. The minimum order quantity is 20 pieces. Stainless bodies, gear operators and specific flange standards are built to order.
