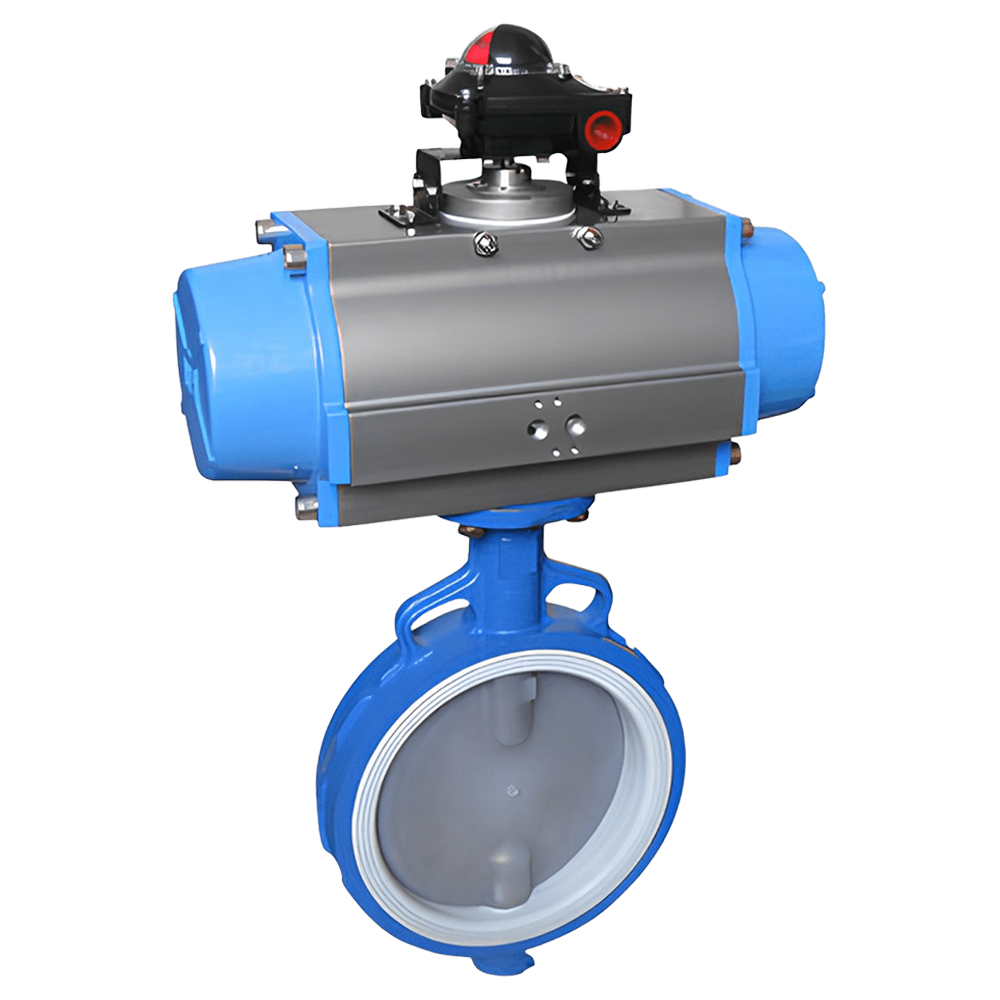

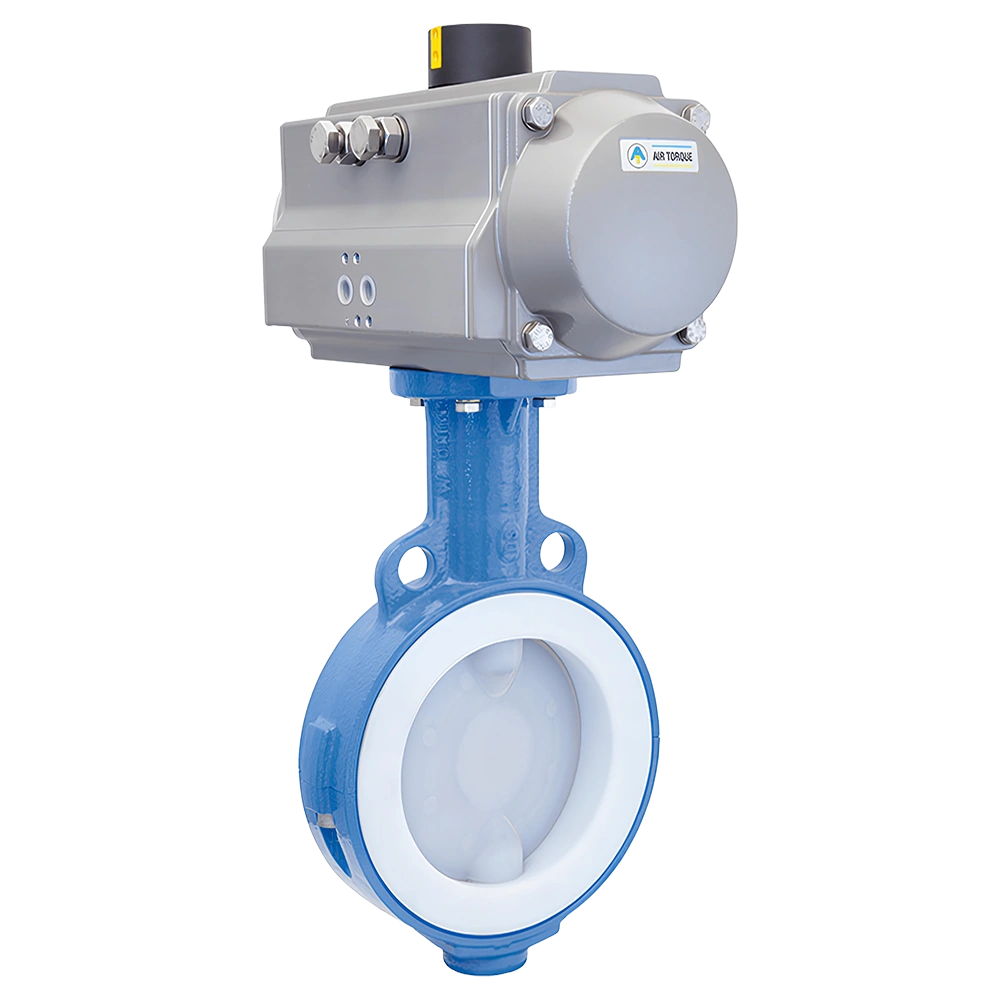

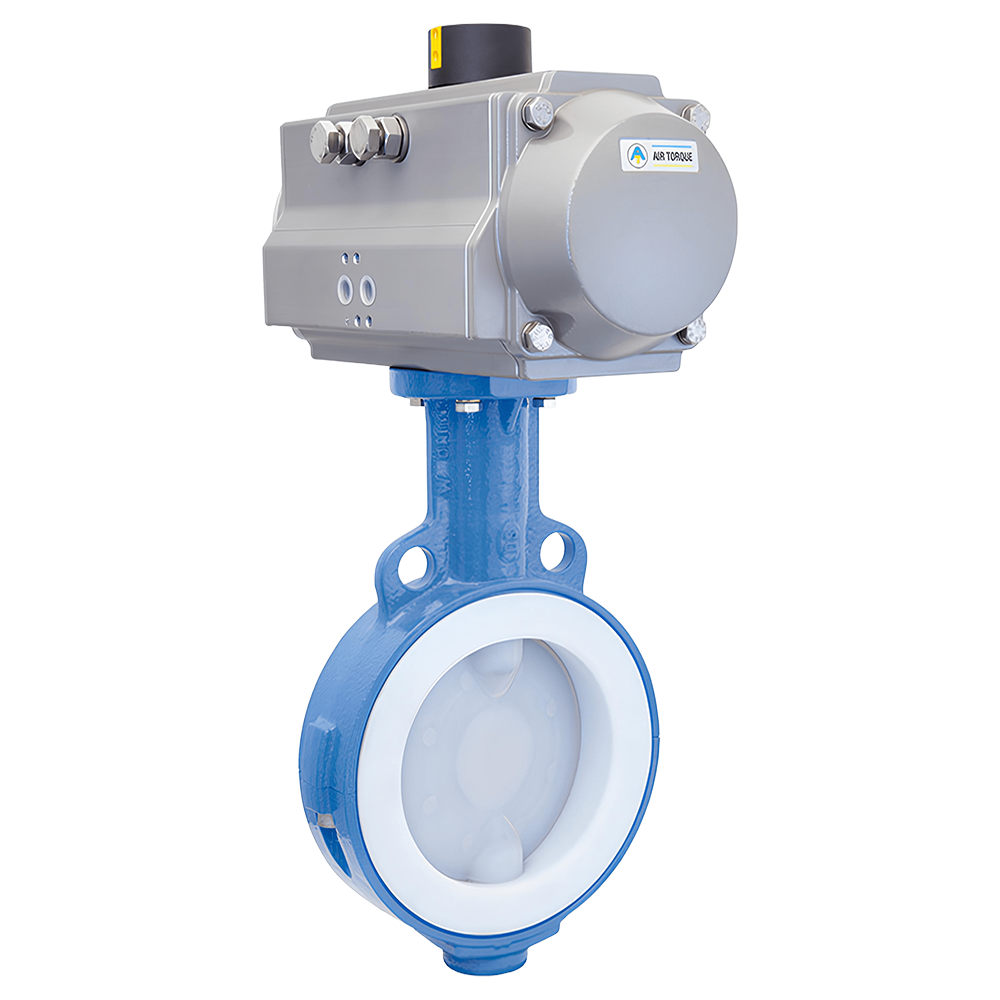

PTFE Seated Butterfly Valve
PTFE Seated Butterfly Valve Manufacturer
MVS Valves is a trusted name in the manufacturing and export of PTFE Seated Butterfly Valve, delivering reliable sealing performance in highly corrosive flow applications. Engineered for precision control, these valves are widely preferred in chemical, pharmaceutical, and municipal water systems, where resistance to aggressive media and tight shut-off are essential. Our PTFE-seated butterfly valve design integrates a durable stainless steel disc stemmed through a resilient PTFE-lined seat, ensuring a long service life even under fluctuating pressure and temperature ranges. These valves are tested to API 598 and EN 12266 standards and designed as per API 609, making them suitable for demanding process conditions from –20 °C to +200 °C.
Built for compatibility and ease of automation, the valves come with an ISO 5211 actuation mounting pad and are available in both wafer and lug-style body configurations. MVS manufactures concentric PTFE-seated butterfly valve options with replaceable seat design, providing easy maintenance and superior resistance to wear and corrosion. These valves are available in PN 10 pressure rating and are offered in cast iron, ductile iron, carbon steel, and stainless steel body materials, including CF8 and CF8M grades. Whether installed in vertical or horizontal lines, each carbon steel PTFE seated butterfly valve or ductile iron PTFE seated butterfly valve provides bubble-tight sealing performance in applications involving vacuum, steam, acids, or process fluids.
The MVS product range includes stainless steel PTFE seated butterfly valve variants that offer a perfect blend of mechanical strength and chemical stability, particularly beneficial in pharmaceutical and clean utility systems. Every PTFE seat is carefully selected and designed to provide excellent resistance to chemical attack, ensuring minimal torque, smooth operation, and long-term performance. Being a reputed API 609 PTFE seated butterfly valve manufacturer and exporter, MVS Valves delivers quality solutions with a focus on performance, durability, and global compliance, making our valves the first choice for industries that demand corrosion resistance without compromise.
Specification
| Specification | Details |
|---|---|
| Valve Type | Concentric PTFE-seated butterfly valve |
| Body Styles | Wafer Style |
| Size Range | DN 50–DN 600 (2″– 24″) |
| Pressure Rating | Up to 10 bar |
| Standards | API 609, ISO 5752/558; tested per API 598, EN 12266‑1, ISO 5208 |
| Temperature Range | –20 °C to +200 °C (seat dependent) |
| Seat Leakage | Bubble-tight (Class VI) |
| Actuation | ISO 5211 pad for lever, gearbox, pneumatic/electric actuator |
Material of Construction
| Body | Ductile Iron (ASTM A536) | Carbon Steel (WCB), 316SS, CF3/CF3M, Duplex, Hastelloy C‑276, Titanium |
| Disc & Stem | 316SS (ASTM A351 CF8M) | PTFE-coated SS, PFA lined, Hastelloy, Duplex |
| Seat / Liner | Virgin PTFE (>3 mm thick) | PTFE |
| Bushings & Seals | PTFE stem bushings, NBR/EPDM O-rings | FEP/FKM double-shaft seals, graphite bushings |
| Coatings | Epoxy/polyurethane standard on iron bodies | Chemically resistant linings for aggressive media |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Related products
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
PTFE Seated Butterfly Valve
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a PTFE seated butterfly valve and how does it work?
A concentric wafer-style butterfly valve whose liner is virgin PTFE more than 3 mm thick rather than an elastomer. A quarter turn swings the disc into the seat to seal. Replacing rubber with PTFE widens the chemical range enormously — PTFE resists acids, solvents and oxidisers that would swell or attack EPDM, NBR or Viton — while keeping the compact, economical butterfly format.
Which body, disc and seat materials are available?
Body in Ductile Iron (ASTM A536), Carbon Steel (WCB), 316 stainless, CF3/CF3M, duplex, Hastelloy C-276 or titanium. Disc and stem in 316 stainless (ASTM A351 CF8M), with PTFE-coated stainless, PFA lined, Hastelloy and duplex options. Seat and liner in virgin PTFE over 3 mm thick. PTFE stem bushings with NBR/EPDM O-rings, or FEP/FKM double shaft seals and graphite bushings. Iron bodies carry epoxy or polyurethane coating.
What size, pressure rating and temperature range apply?
DN 50 to DN 600 (2″–24″) in wafer body style, rated up to 10 bar, at −20 °C to +200 °C depending on seat. Shut-off is bubble-tight Class VI. Built to API 609 and ISO 5752/558, tested to API 598, EN 12266-1 and ISO 5208. An ISO 5211 pad takes lever, gearbox, pneumatic or electric actuation.
PTFE seated or fully lined — which do I need?
A PTFE seated valve has a PTFE liner but a metal disc and shaft in contact with the media, so it suits chemically aggressive service that a rubber seat could not take. A fully lined butterfly valve has PTFE over every wetted surface including the disc, which is what severe acid and solvent duty needs. Choose PTFE seated for chemical resistance with metal trim; choose fully lined when nothing metallic may touch the media.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS is a manufacturer — valves built at its own works since 1978, ISO 9001:2015 certified — exporting across several continents. The minimum order quantity is 20 pieces. Hastelloy and titanium bodies, PFA lined discs, high-temperature seals and actuated assemblies are built to order.
