Rubber Lined Diaphragm Valve
Rubber Lined Diaphragm Valve Manufacturer
MVS Valve is a leading manufacturer of Rubber Lined Diaphragm Valves, we are manufactured in accordance with best quality standards and are specifically designed to offer reliable and efficient fluid control in the most demanding industrial environments. These valves are suitable for handling corrosive, abrasive, and viscous fluids across various process industries.

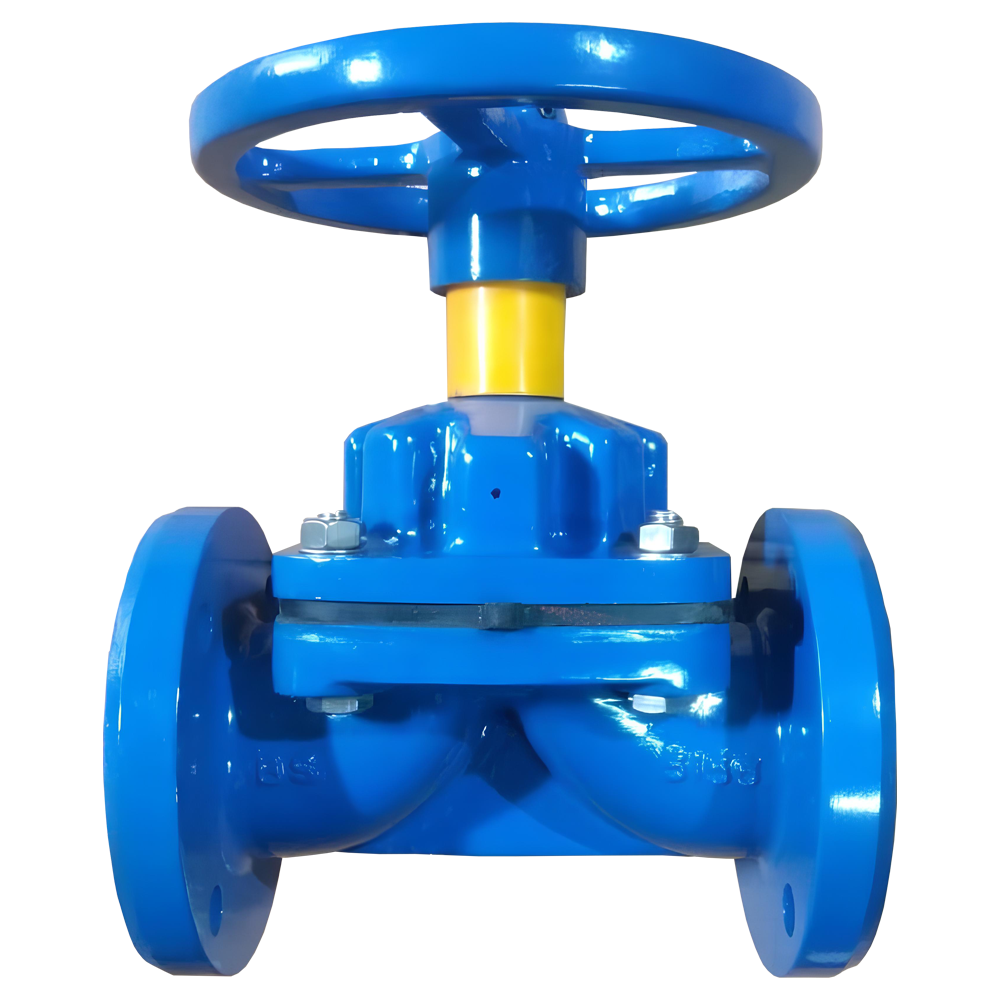

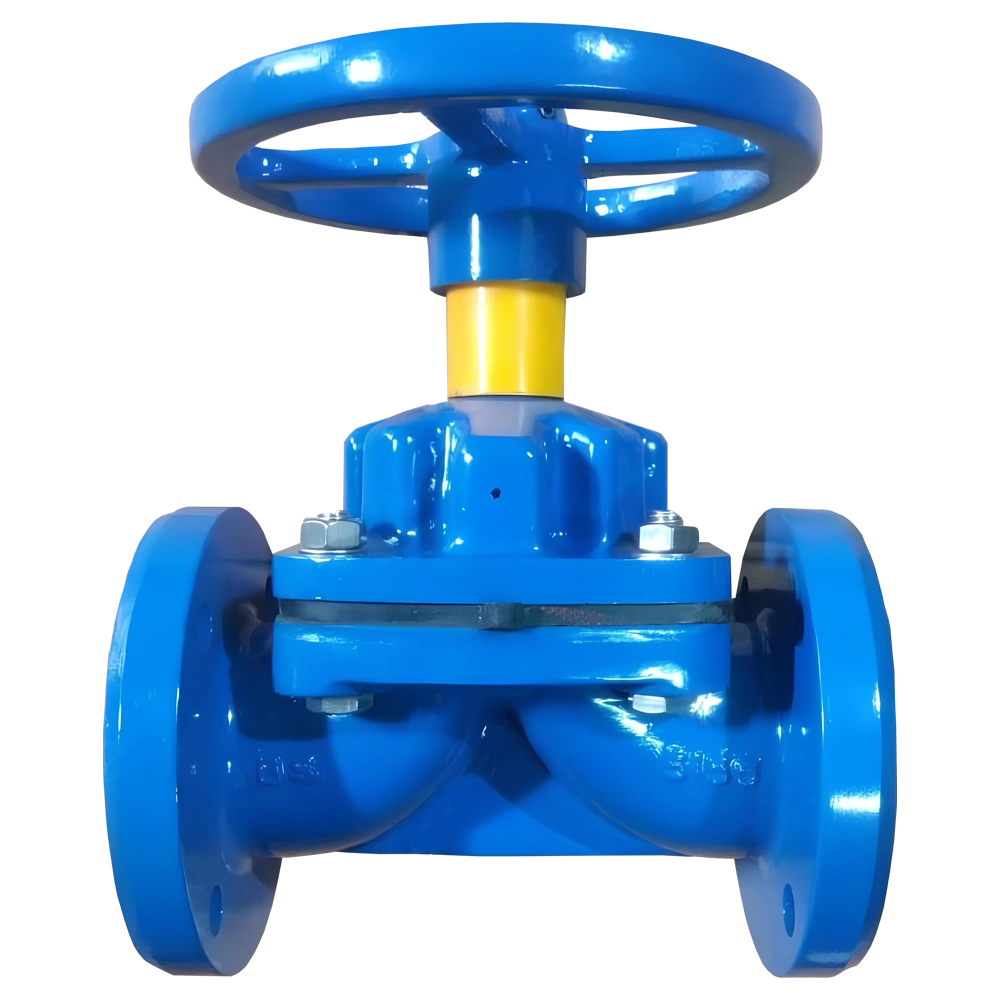

Weir Type Rubber Lined Diaphragm Valves, are engineered to deliver exceptional durability and performance under harsh conditions. These valves are designed in compliance with international quality standards, making them a preferred choice for flow control in chemical, mining, wastewater, and other corrosive fluid environments.
Our valves are available with various lining and diaphragm combinations to make sure that compatibility with aggressive chemicals and process conditions. Whether you need Weir butyl rubber lined diaphragm valves for chemical resistance, or weir soft natural rubber lined diaphragm valves for gentle fluid handling, we have tailored solutions for every industry requirement.
MVS also offers options such as weir hard ebonite rubber lined diaphragm valves, weir neoprene rubber lined diaphragm valves, and weir epdm rubber lined diaphragm valves, which cater to specific media handling and temperature needs. For industries that demand enhanced chemical resistance, our weir hypalon rubber lined diaphragm valves provide a reliable choice.
A long side lined versions, we manufacture weir unlined diaphragm valves, including weir unlined stainless steel diaphragm valves, weir unlined carbon steel diaphragm valves, and weir unlined ductile iron diaphragm valves to serve general-purpose flow control requirements. We also offer configurations built to international specifications such as weir din standard unlined diaphragm valves and weir din standard rubber lined diaphragm valves. With the versatility of material choices, lining options, and compliance with DIN and ANSI standards, our WEIR-type diaphragm valves are the preferred solution for industries like chemical processing, mining, water treatment, and power generation. Their compact structure, robust sealing mechanism, and long service life ensure optimal performance with minimal maintenance.
Specification
| Valve Type | Weir Type Rubber Lined Diaphragm Valve |
|---|---|
| Size Range | 15 mm to 300 mm |
| Design Standard | BS EN 13397:2002 (BS 5156) |
| Testing Standard | BS EN 12266-1 (BS 6755 Part 1) |
| Face-to-Face Dimensions | EN 558-1 Series 7 (BS 5156), EN 558-1 Series 1 (DIN 3202 Series F1) |
| End Connections | Flanged (BS 10, DIN PN10/16, ANSI B16.5), Butt Weld |
| Spindle Material | AISI 410 / 304 / 316 |
Material of Construction

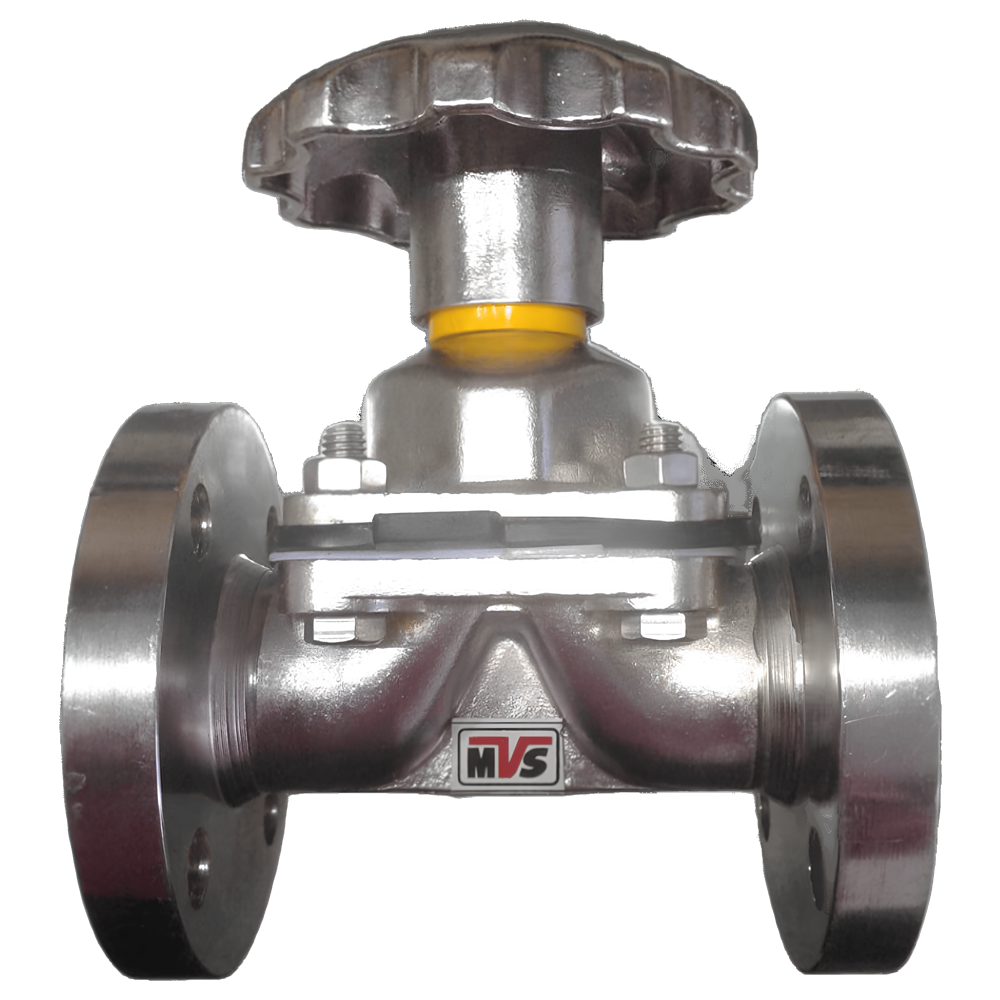

| Body Material | Cast Iron (IS 210 Gr. FG 200/220/260) Cast Carbon Steel (ASTM A216 Gr. WCB) Stainless Steel SS 304 / SS 316 (ASTM A351 Gr. CF8 / CF8M) Duplex Stainless Steel Grade 2205 |
|---|---|
| Body Lining | Ebonite, Natural, Neoprene, Hypalon, Butyl, EPDM FEP, PFA, PVDF |
| Diaphragm Options | Natural, Neoprene, Hypalon, Butyl, EPDM, Silicone, PTFE-backed Neoprene |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Related products
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
Rubber Lined Diaphragm Valve
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a rubber lined diaphragm valve and how does it work?
A weir type diaphragm valve in which the cast body is lined with rubber and a flexible diaphragm is pressed down onto a raised weir by the compressor to close the line. The diaphragm and lining together seal the process off completely from the stem, bonnet and handwheel, so there is no gland packing to leak and no metal in contact with the media. The weir shortens diaphragm travel, which gives longer diaphragm life and better throttling control.
Which body materials, linings and diaphragms are available?
Body in Cast Iron (IS 210 Gr. FG 200/220/260), Cast Carbon Steel (ASTM A216 Gr. WCB) or Stainless Steel SS 304. Body lining in Ebonite, Natural rubber, Neoprene, Hypalon, Butyl or EPDM for general and abrasive duty, or FEP, PFA and PVDF where chemical attack is severe. Diaphragms in matching elastomers and PTFE-faced construction. The lining and diaphragm should be selected together for the media and temperature.
What size, end connections and standards apply?
15 mm to 300 mm. Designed to BS EN 13397:2002 (formerly BS 5156) and tested to BS EN 12266-1 (BS 6755 Part 1). End connections flanged to BS 10, DIN PN10/16 or ANSI B16.5, with butt weld available. MVS is ISO 9001:2015 certified and supplies test certificates with each order.
Weir type or straight through — which do I need?
This weir type has a raised sill, so the diaphragm flexes less and lasts longer, throttles better and seals more tightly — the right choice for most clean and moderately loaded duty. A straight through diaphragm valve has a full unobstructed bore that drains completely and passes slurry, fibre and solids without a ledge to build on, at the cost of more diaphragm travel and shorter diaphragm life. Choose weir unless solids or full drainage force the other.
Are you a manufacturer, and what are your minimum order quantity and customization options?

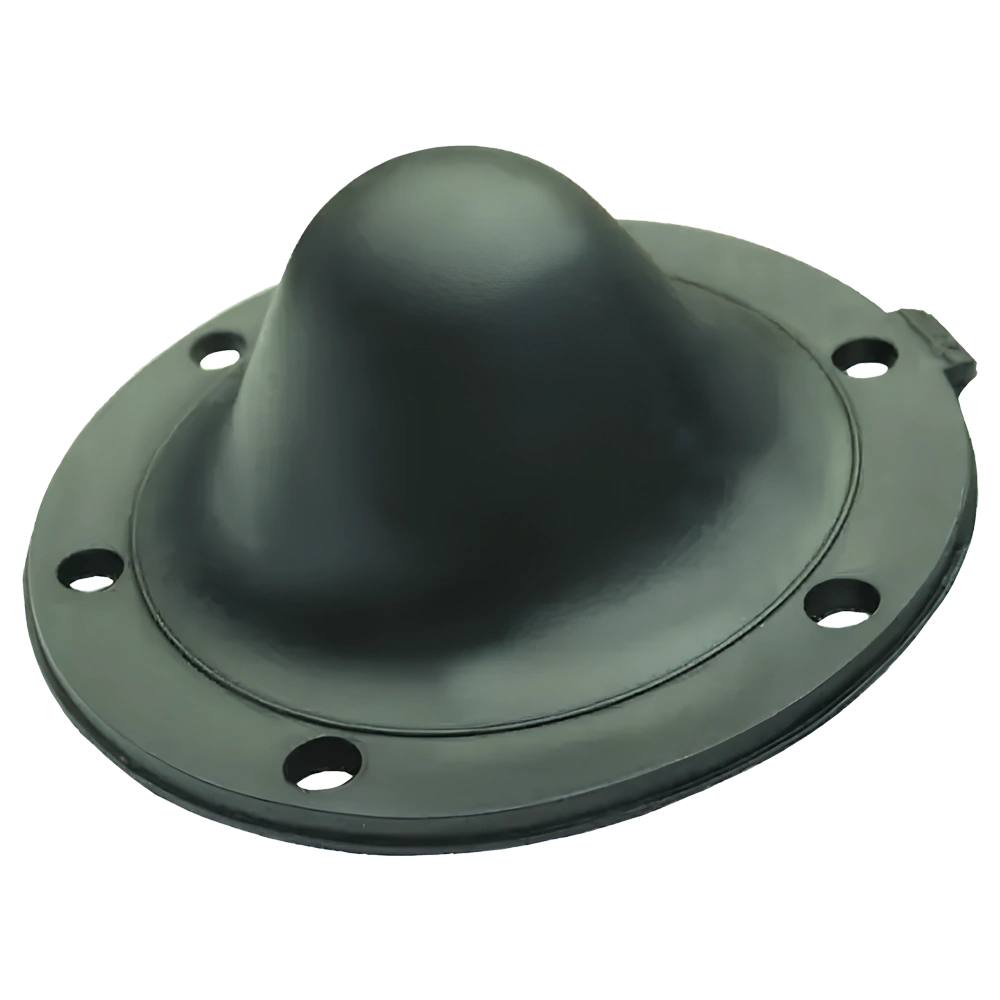

MVS is described as the largest diaphragm and ball valve exporter from India, manufacturing at its own works since 1978 and ISO 9001:2015 certified. The minimum order quantity is 20 pieces. Special linings, diaphragm materials, butt weld ends and pneumatic or electric actuated assemblies are built to order. Replacement diaphragms are stocked as spare weir type diaphragms.
