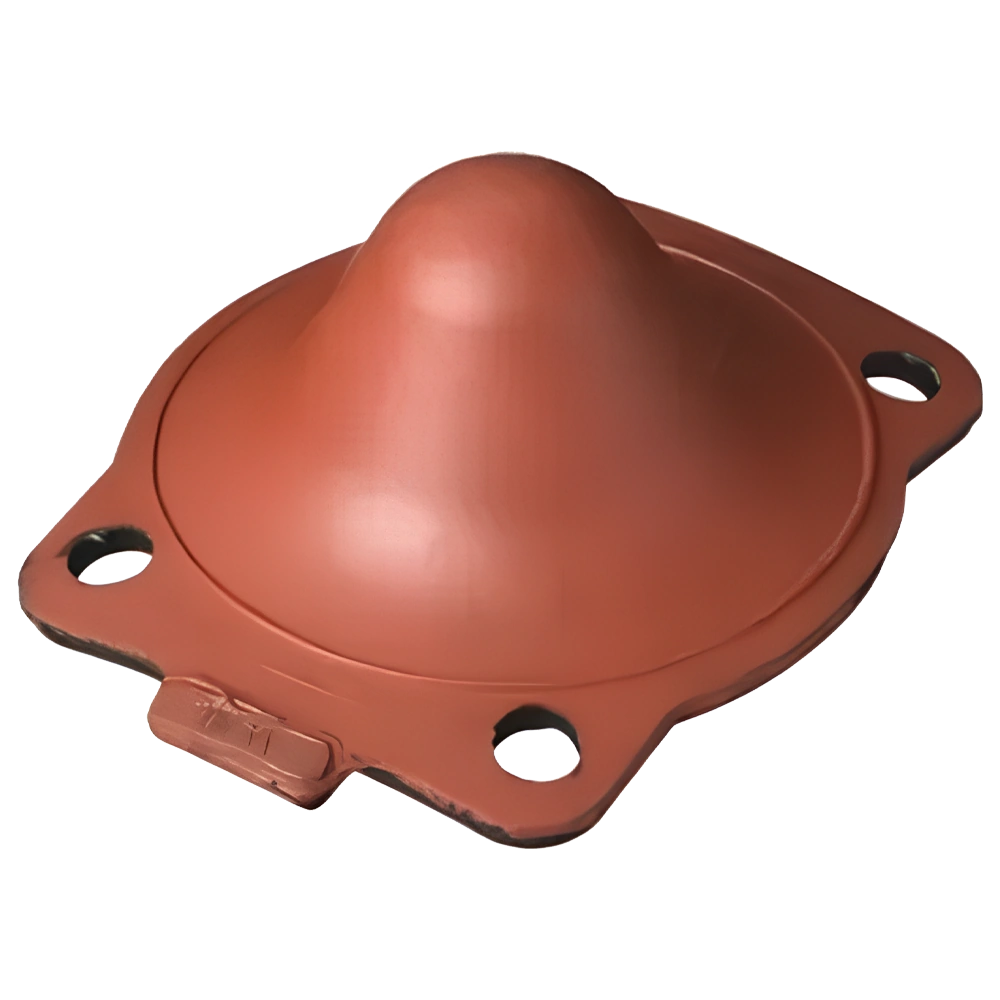

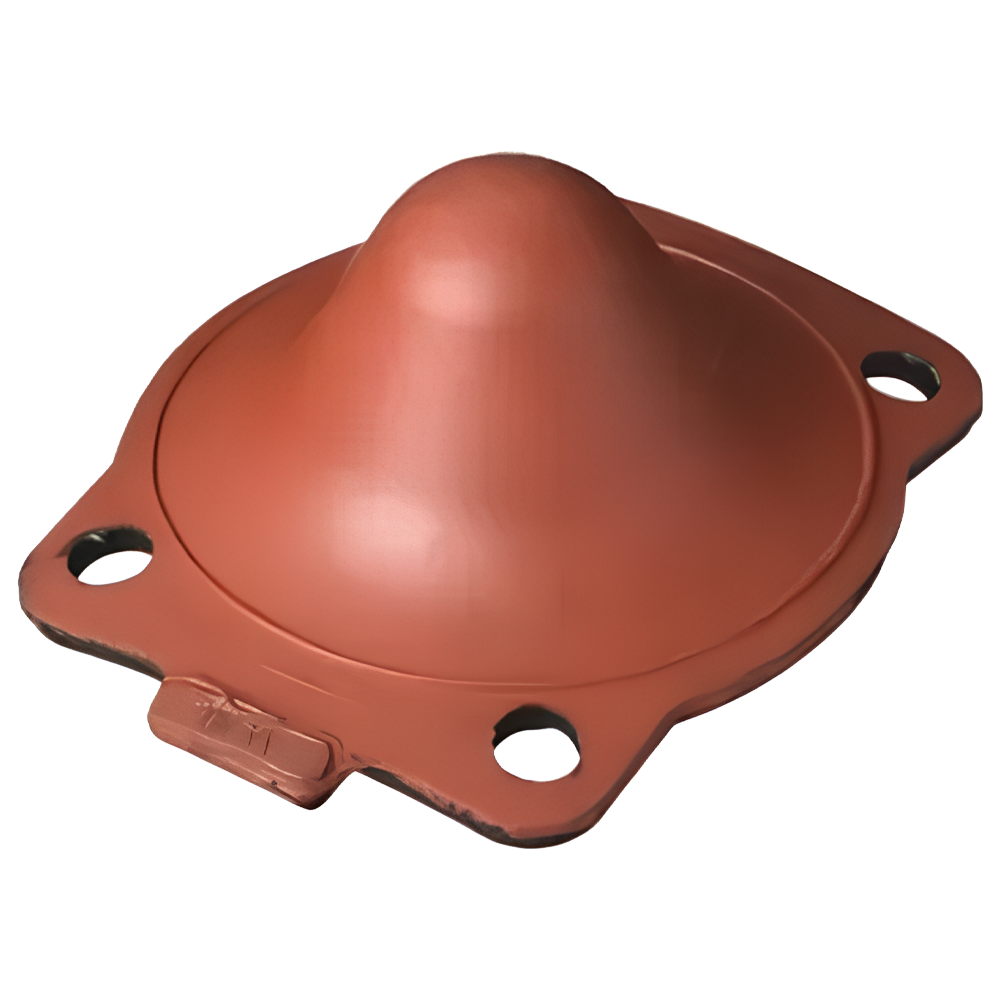

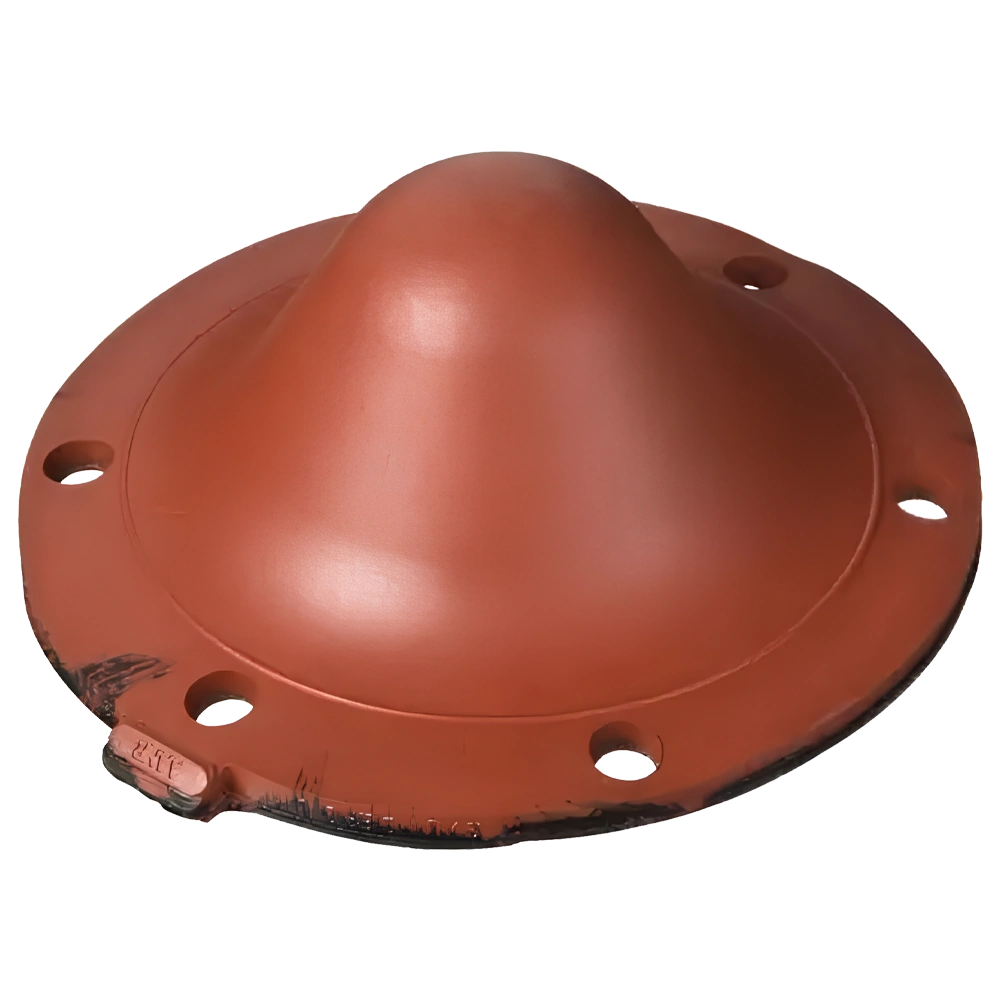

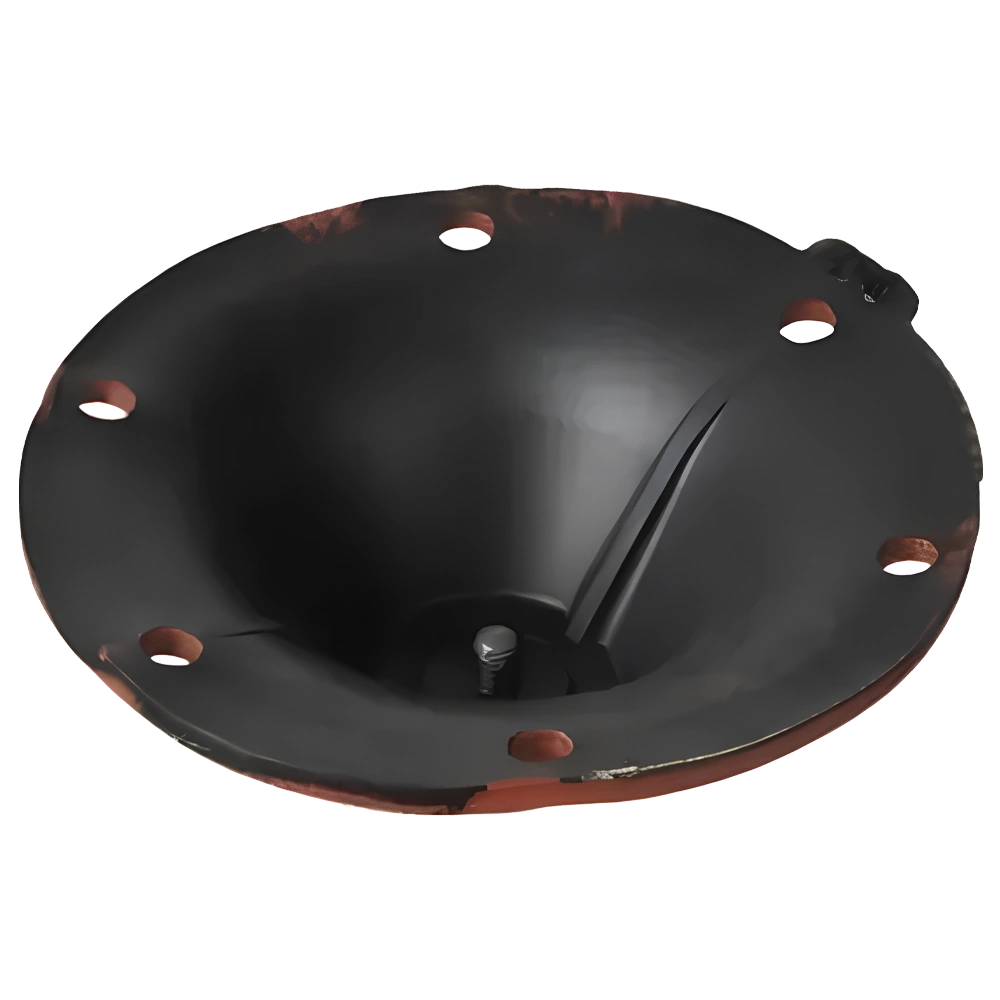

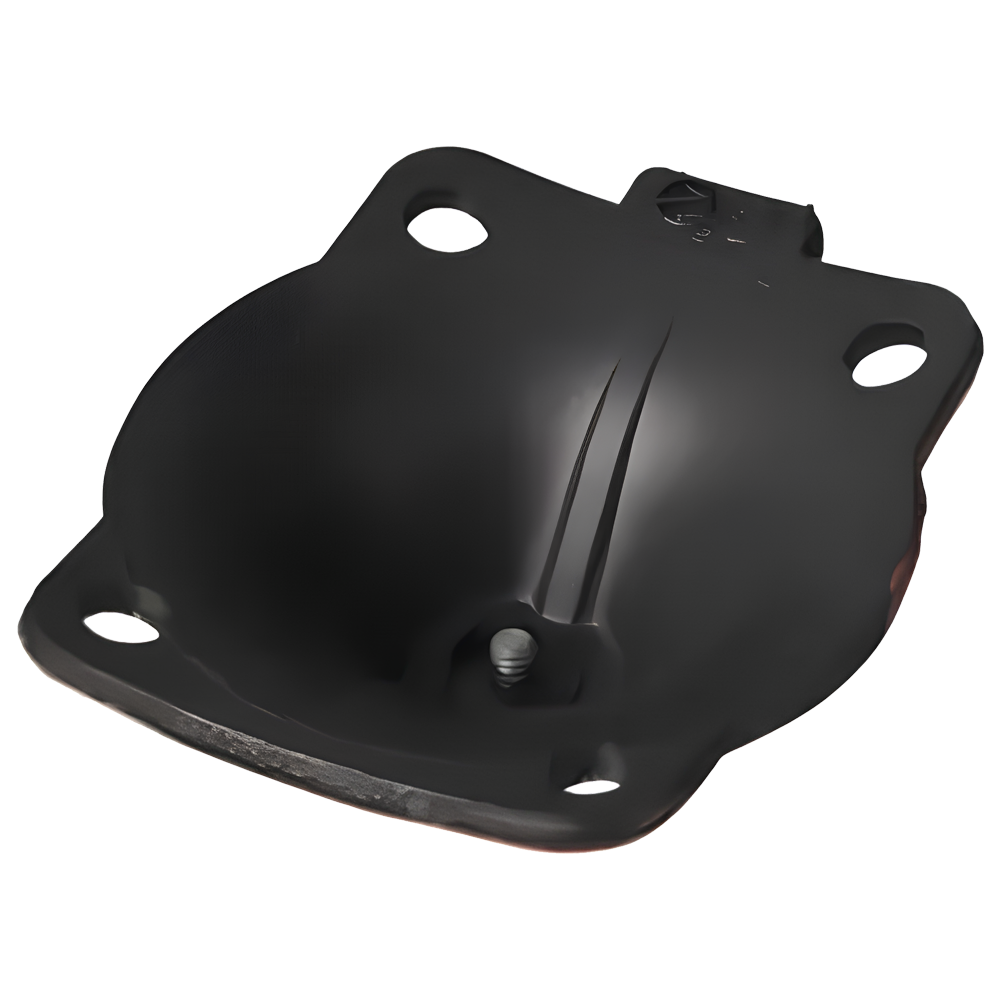

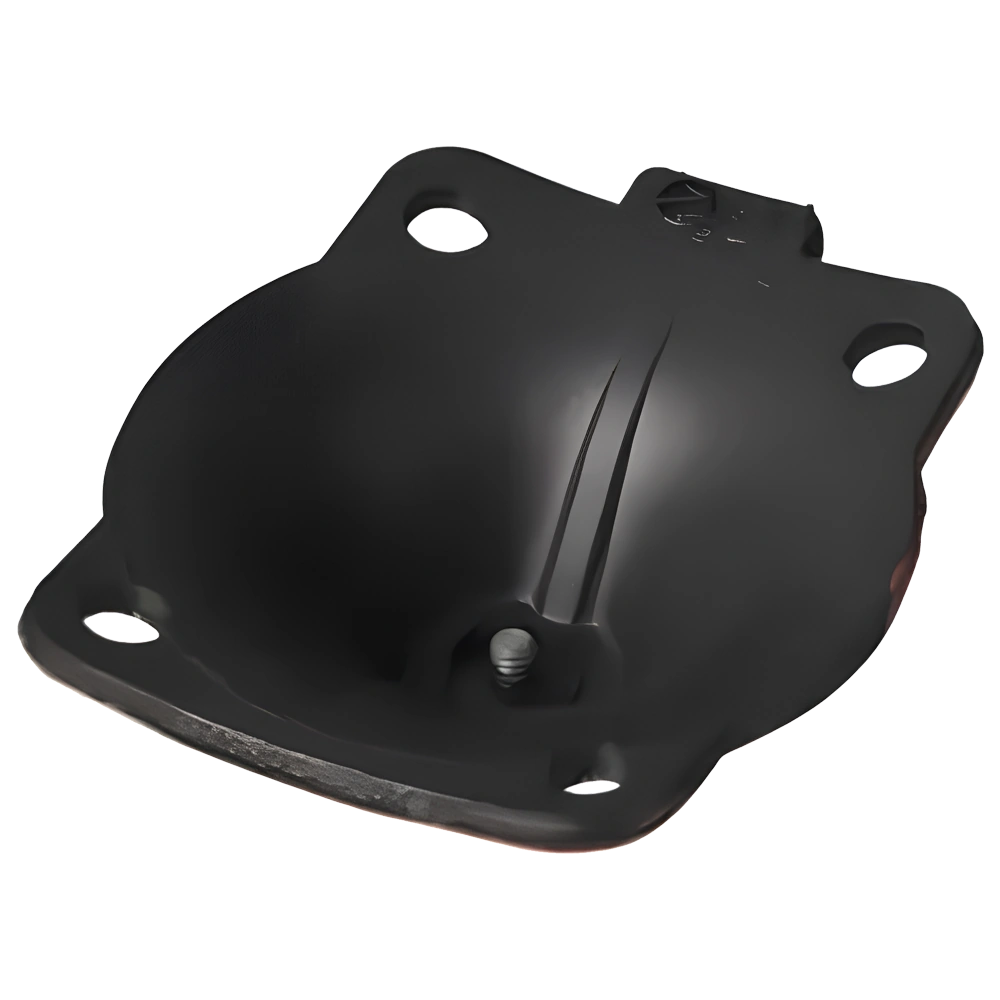

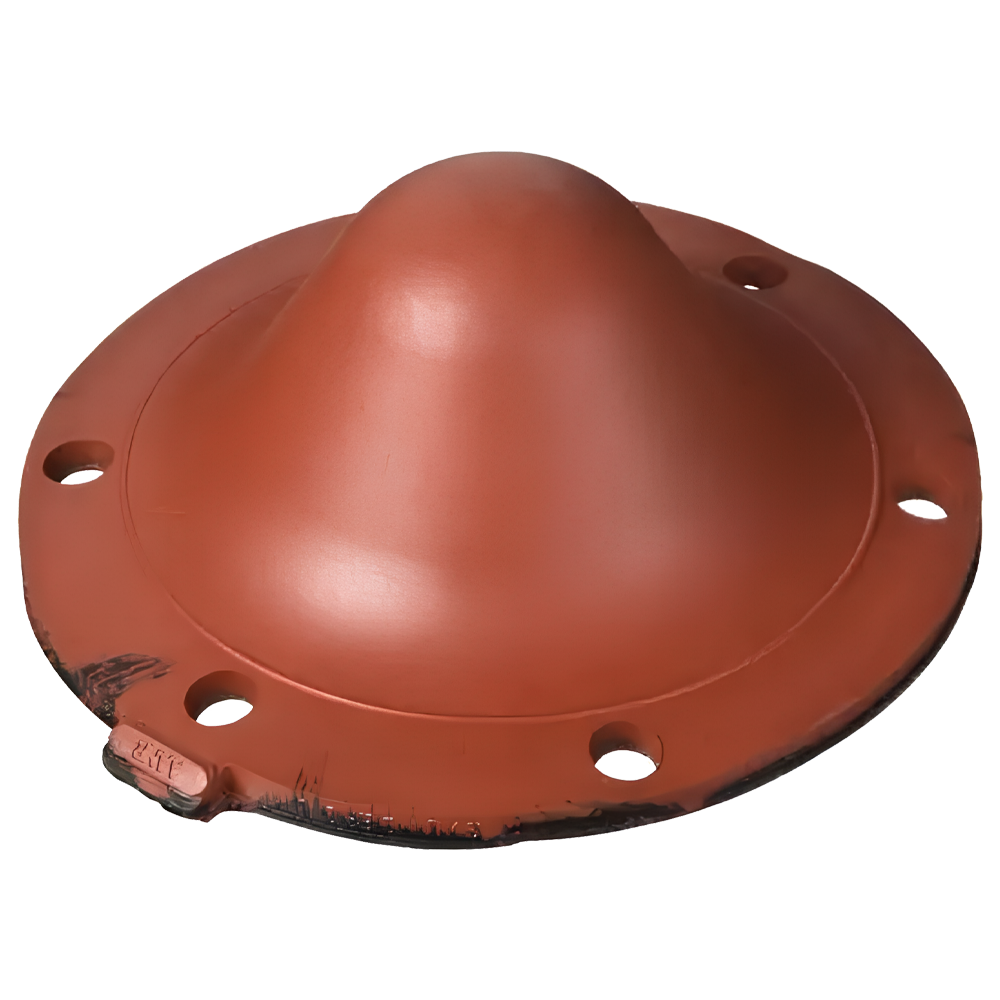

Spare Straight Through Diaphragms
Spare Straight Through Diaphragms Manufacturer
MVS Valve, we understand that industrial performance relies heavily on the durability and consistency of internal valve components. That’s why we manufacture and supply Spare Straight Through Diaphragms that are specifically engineered to match the demanding conditions of various industries. These diaphragms are essential components for maintaining peak valve performance in abrasive, corrosive, or high-pressure applications.
Our Spare Straight Through Diaphragms are available in multiple premium-quality elastomer materials to cater to diverse operational needs. These include Replacement Spare Natural Rubber Diaphragms Straight Type, Replacement Spare EPDM Rubber Diaphragms Straight Type, and Replacement Spare Neoprene Rubber Diaphragms Straight Type, all offering excellent flexibility and sealing integrity. Designed for use in Straight Through Diaphragm Valves, these diaphragms ensure reliable service, reduced maintenance downtime, and longer operating life.
We also offer high-performance options such as Replacement Spare Butyl Rubber Diaphragms Straight Type and Replacement Spare Nitrile Rubber Diaphragms Straight Type, which are ideal for chemical and oil-handling environments. For highly aggressive media, our Replacement Spare Hypalon Rubber Diaphragms Straight Type provide exceptional chemical and weather resistance, ensuring durability even in the harshest service conditions.
Each diaphragm is crafted with precision to fit perfectly into straight-through valve assemblies, enabling consistent performance without leakage or failure. With a focus on compatibility, safety, and performance, MVS diaphragms are a preferred choice across industries such as water treatment, chemical processing, pharmaceuticals, mining, and more. MVS provides cost-effective, high-quality diaphragm replacements that match or exceed original equipment specifications.
Specification
| Specification | Details |
|---|---|
| Product Type | Spare Rubber Diaphragm or Membranes |
| Valve Suitable Type | Straight Through KB Type Diaphragm Valve |
| Sizes Available | ½″ to 12″ (DN 15 to DN 300) |
| Connection Type | Screw Stud |
| Assembly Method | Threaded Stud |
| Reinforcement | Nylon Fabric Reinforced |
| Applications | Chemical, Water Treatment, Food, Pharma, and more |
Material of Construction
| Material | Type/Features |
|---|---|
| EPDM | Rubber, Screw Stud Type Connection |
| Neoprene | Rubber, Screw Stud Type Connection |
| Hypalon* | Rubber, Screw Stud Type Connection |
| Natural Rubber | Screw Stud Type Connection |
| Chlorobutyl | Rubber, Screw Stud Type Connection |
| Buna N (Nitrile) | Rubber, Screw Stud Type Connection |
| Viton* | Rubber, Screw Stud Type Connection |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Related products
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
Spare Straight Through Diaphragms
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What are spare straight through diaphragms and which valves do they fit?
They are replacement diaphragms for Straight Through KB type diaphragm valves. In a straight through body the diaphragm has to travel all the way to the valve floor rather than onto a weir, so it flexes further on every cycle and is the part that determines service life. Stocking spares turns a diaphragm failure into a planned change rather than a line outage.
Which diaphragm materials are available?
EPDM, Neoprene, Hypalon, Natural rubber, Chlorobutyl, Buna N (Nitrile) and Viton, in screw stud type connection, plus PTFE-faced diaphragms backed by EPDM, Neoprene or Viton. All are nylon fabric reinforced — which matters more here than on a weir valve, because of the greater travel.
What sizes and connection types do you supply?
½″ to 12″ (DN 15 to DN 300), with screw stud connection assembled by threaded stud. Quote the valve size, confirm it is a straight through KB type body, and state the media and temperature when ordering — weir and straight through diaphragms are not interchangeable.
How long does a straight through diaphragm last compared with a weir type?
Generally less, because it flexes further on every stroke. There is no fixed figure — life depends on cycle rate, temperature and media — but a straight through valve on frequent duty will need diaphragms sooner than a weir type valve doing the same job. That is the trade-off you accept for full drainage and solids handling, and it is the reason to keep spares on the shelf.
Are you a manufacturer, and what is your minimum order quantity?
MVS manufactures diaphragm valves and spares at its own works — since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. PTFE-faced construction and non-standard compounds are made to order.
