Three Piece Ball Valve Threaded Ends
Three Piece Ball Valve Threaded Ends Manufacturer
- Size
- ½” to 4”
- Standard
- BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34 / API 6D
- Pressure
- 150#
MVS Valve offers premium-grade Three Piece Ball Valve Threaded Ends designed for efficient flow control and secure shutoff in demanding industrial applications. Built in compliance with international standards including API 6D, ASME B 16.34, BS EN ISO 17292, and BS EN 1983, these valves deliver exceptional performance, even under high-pressure and high-temperature conditions. Mayur (Valves) System Private Limited, an ISO 9001:2015-certified company, has been a trusted Three Piece Ball Valve Threaded Ends manufacturer and exporter since 1978. We export to 40+ countries worldwide, with a strong focus on consistent quality, timely delivery, and a smooth customer experience. Our valves serve clients across Europe, North America, the Middle East, Southeast Asia, Russia, and other international markets, meeting diverse industrial requirements with dependable valve solutions and technical expertise.
Crafted with a three-piece full bore body, this valve design facilitates easy in-line maintenance and cleaning without removing the entire valve from the pipeline—making it a practical choice for systems that require regular servicing. The available sizes range from ½” to 4”, with a pressure rating of 150#, supporting various flow requirements.
Manufactured in Carbon Steel and Stainless Steel, MVS’s threaded ball valve range includes configurations for both BSPT and NPT threaded connections. Our Carbon Steel Three Piece Full Port BSPT Threaded Ball Valve and Stainless Steel Three Piece Full Port BSPT Threaded Ball Valve provide reliable sealing in systems using British thread standards. For American standards, we offer Carbon Steel Three Piece Full Port NPT Threaded Ball Valve and Stainless Steel Three Piece Full Port NPT Threaded Ball Valve, which deliver excellent corrosion resistance and durability in challenging fluid environments.

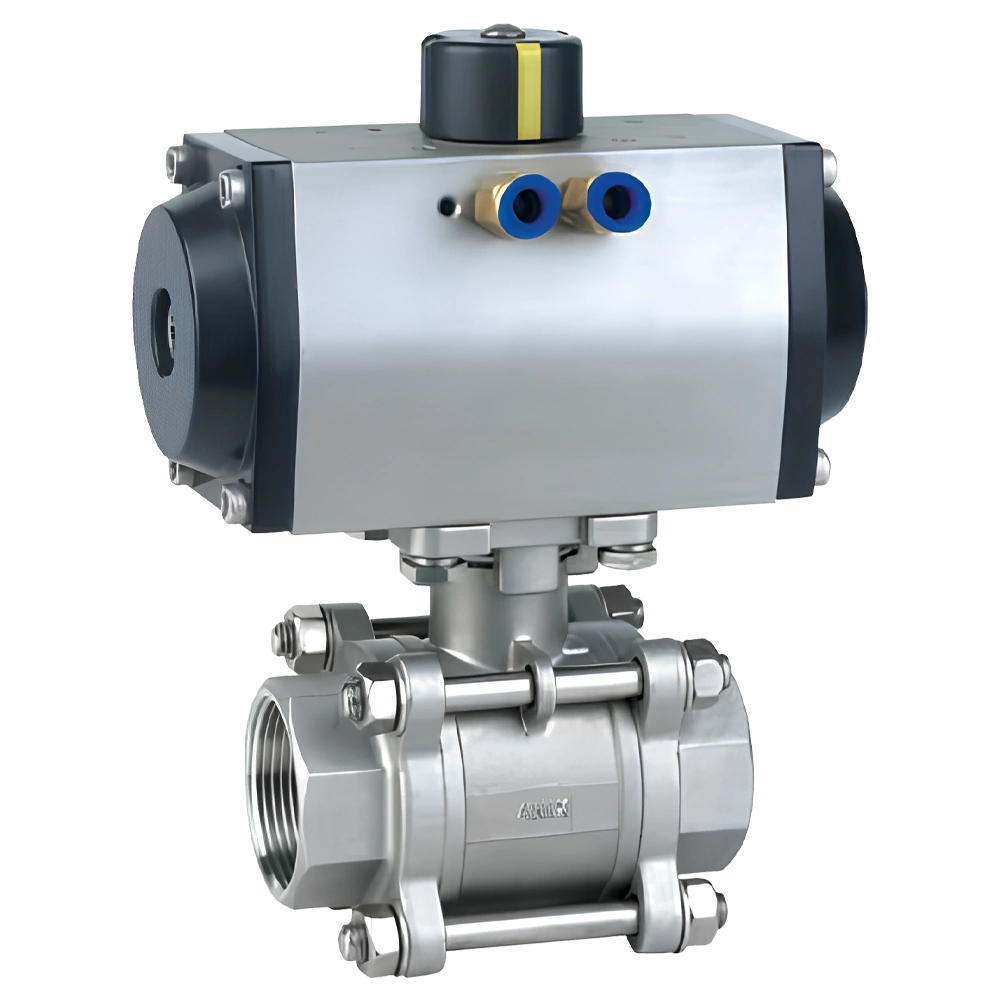

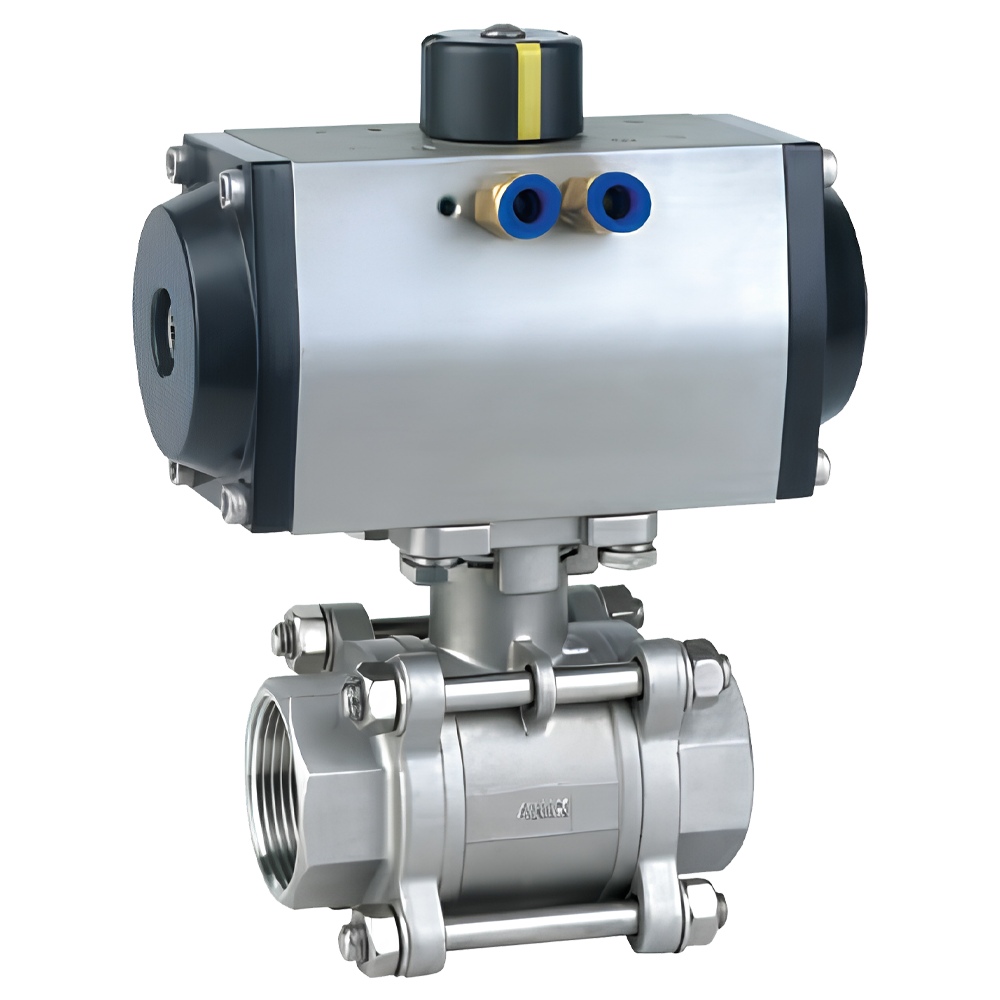

Each valve is equipped with fire-safe and anti-static features, ensuring operational integrity in hazardous settings. A blowout-proof stem and a secure sealing mechanism further reinforce system safety. Optional ISO mounting pads are also available for actuator installation, making them ideal for both manual and automated operations. Whether installed in chemical lines, oil & gas distribution, or water treatment systems, MVS Three Piece Ball Valve Threaded Ends offer an unmatched combination of flexibility, strength, and longevity.
Technical datasheetThree Piece Ball Valve Threaded Ends
Quote for this specification| Specification | Details |
|---|---|
| Design Standard | BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34 / API 6D |
| Size Range | ½” to 4” |
| Pressure Rating | 150# |
| End Connections | Screwed / Threaded End to ANSI B 1.20.1, Socket Weld End to ANSI B 16.11 |
| Testing Standard | API 598 |
| Fire Safe Design | As per API 607 / ISO 10497 |
| Bore Type | Full Bore |
| Body / End Piece | WCB / CF8 / CF8M / Duplex / Others |
| Ball | SS304 / SS316 / ENP Coated / Others |
| Stem | SS304 / SS316 / EN8 / ENP Coated |
| Seats | PTFE / RPTFE / CFT / PEEK / Metal |
| Seals | PTFE / Viton / Graphite |
| Fasteners | High Tensile / SS |
Application Industries
01Crude Oil & Natural Gas Industry
02Chemical & Petrochemical Industry
03Water & Wastewater Treatment
04Nuclear & Thermal Power Generation
05Food & Beverage Industry
06Pharmaceutical & Biotechnology
07Pulp & Paper Industry
08Mining & Mineral Processing
09Marine & Shipbuilding
10HVAC & Building Services
11Automotive & Paint Chemical Manufacturing
12Environmental & Bio Gas Renewable Energy
13Steel & Metal Processing
14Fertilizer Plants, Polymer Production
15Cosmetics & Personal Care
16Cement & Construction
17Chlor-Alkali Industry
18Mineral Acids Industry
Related Valves
Related products
01/03
02/03Two Piece Ball Valve
- Size
- ½” to 12”
- Standard
- BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34 / API 6D
- Pressure
- 150# to 300#
03/03
Exporting Reliable Valve Solutions Across Continents
40+Countries we
export to
- Argentina
- Australia
- Austria
- Bahrain
- Belgium
- Bulgaria
- Canada
- Chile
- China
- Colombia
- Czech Republic
- Denmark
- Egypt
- Finland
- France
- Germany
- Greece
- Hong Kong
- Hungary
- Indonesia
- Iran
- Ireland
- Israel
- Italy
- Japan
- Jordan
- Korea
- Kuwait
- Lebanon
- Lithuania
- Malaysia
- Mexico
- Netherlands
- New Zealand
- Nigeria
- Norway
- Oman
- Peru
- Philippines
- Poland
- Portugal
- Puerto Rico
- Qatar
- Romania
- Russia
- Saudi Arabia (KSA)
- Serbia
- South Africa
- South Korea
- Spain
- Sweden
- Switzerland
- Syria
- Taiwan
- Thailand
- Turkey
- Ukraine
- United Arab Emirates (UAE)
- United Kingdom (UK)
- United States of America (USA)
- Venezuela
- Vietnam
- Yemen
- Zambia
Three Piece Ball Valve Threaded Ends
Frequently Asked Questions
Ask our engineers
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a three piece threaded end ball valve and how does it work?
A three piece body — two end caps and a removable centre section — supplied with screwed or socket weld ends for small-bore pipework. A quarter turn opens or closes the full bore. The combination is particularly useful on welded small-bore lines: the end caps stay welded in place and the centre section lifts out for seat replacement, so you service the valve without cutting and re-welding pipe.
Which body, ball and seat materials are available?
Body and end piece in WCB, CF8 (SS 304), CF8M (SS 316), duplex and other alloys. Ball in SS 304, SS 316 or ENP coated; stem in SS 304, SS 316, EN8 or ENP coated. Seats in PTFE, RPTFE, carbon-filled PTFE, PEEK or metal; seals in PTFE, Viton or graphite; fasteners in high tensile steel or stainless.
What size, pressure class, end connections and standards apply?
½″ to 4″ at Class 150#, full bore. Screwed or threaded ends to ANSI B1.20.1, socket weld to ANSI B16.11. Designed to BS EN ISO 17292 (BS 5351), BS EN ISO 12516, BS EN 1983, ASME B16.34 and API 6D, tested to API 598, with fire safe design to API 607 / ISO 10497 available.
Why choose this over a two piece threaded valve?
Because of socket weld pipework. On a two piece threaded valve, replacing seats means unscrewing or cutting the valve out of the line. On the three piece version the welded end caps stay put and only the centre section comes out — turning a pipefitting job into a spanner job. If the valve will ever need servicing on a welded line, the three piece design pays for itself the first time.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS is a manufacturer — building valves at its own works since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. Fire safe construction, special alloys, seat materials and actuated assemblies are built to order.
