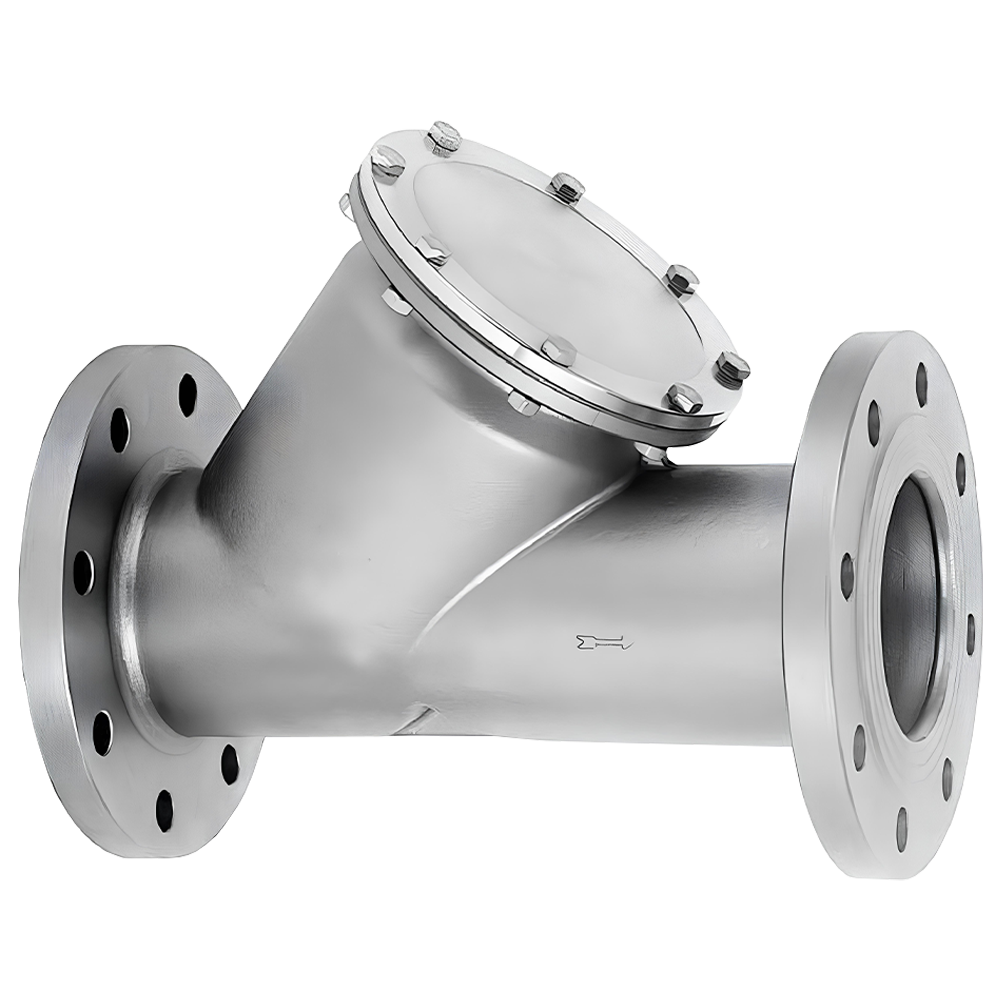

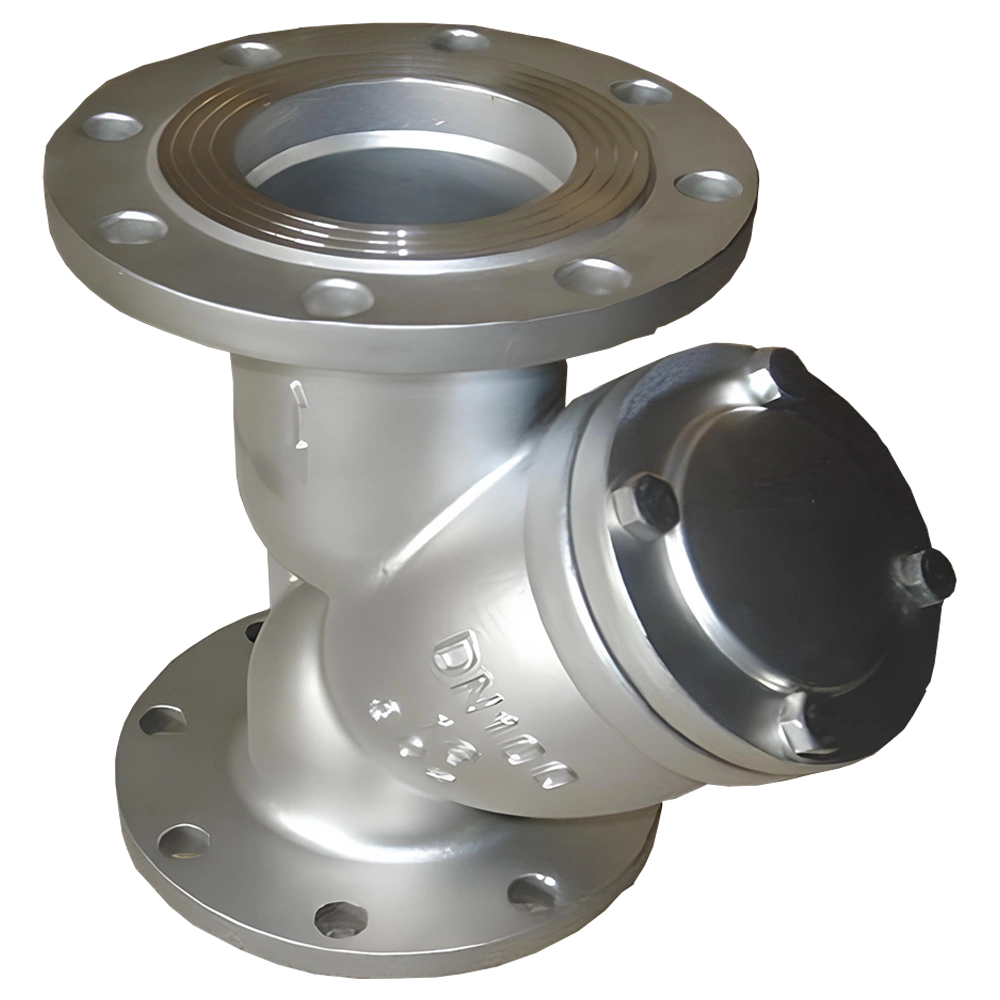

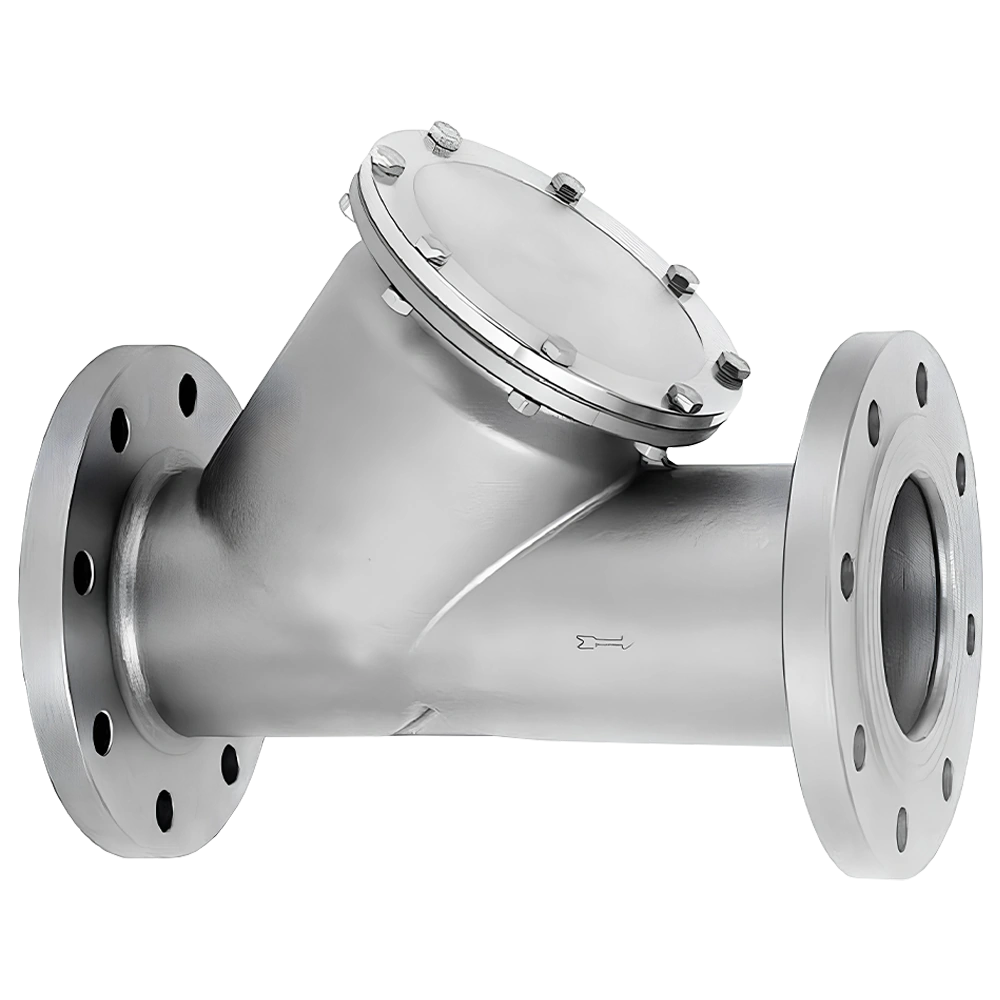

Y Strainer
Y Strainer Manufacturer
MVS Valves Y Strainer is engineered for effective debris removal and long-term protection of pipeline components in industrial fluid systems. Designed in a compact Y-shape, this strainer is ideal for coarse filtration, though it can also accommodate fine mesh when a larger filtration area is required. The internal screen captures solids from process media, which helps improve fluid clarity and extends the operational life of downstream equipment such as pumps, valves, meters, and regulators.

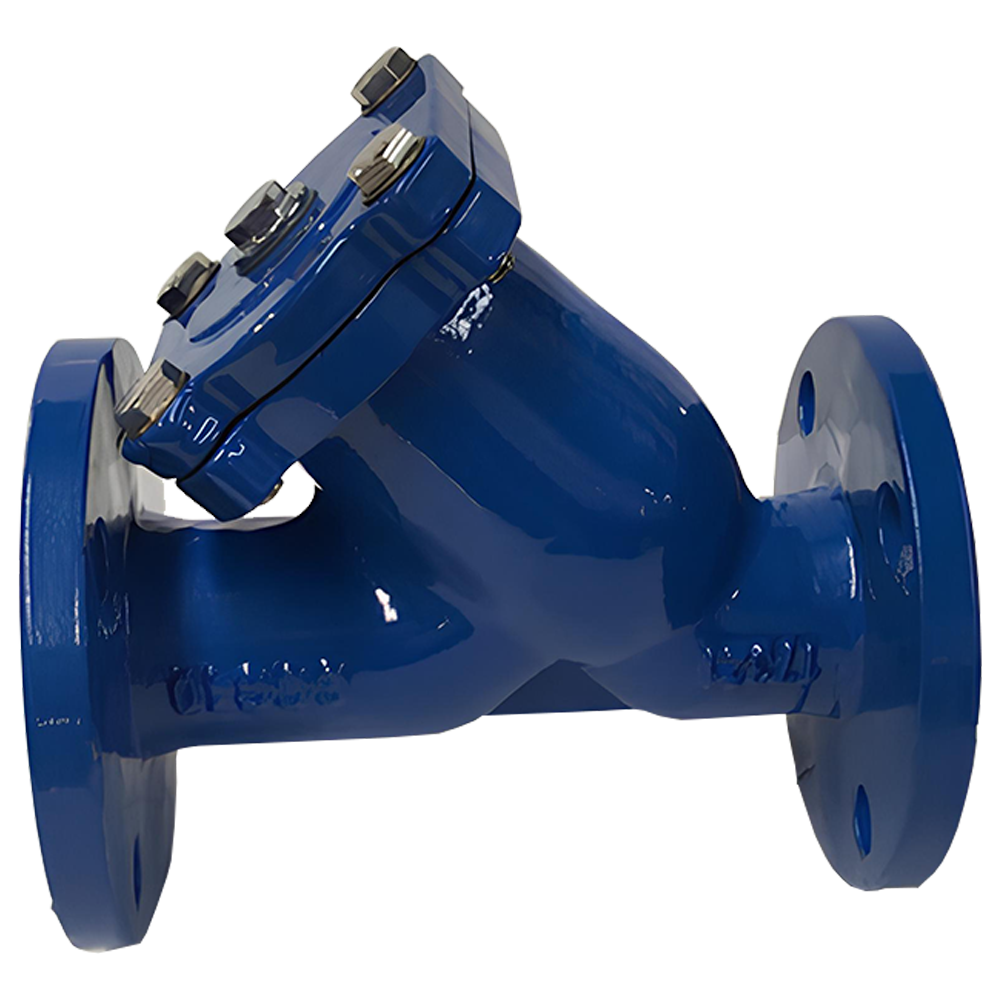

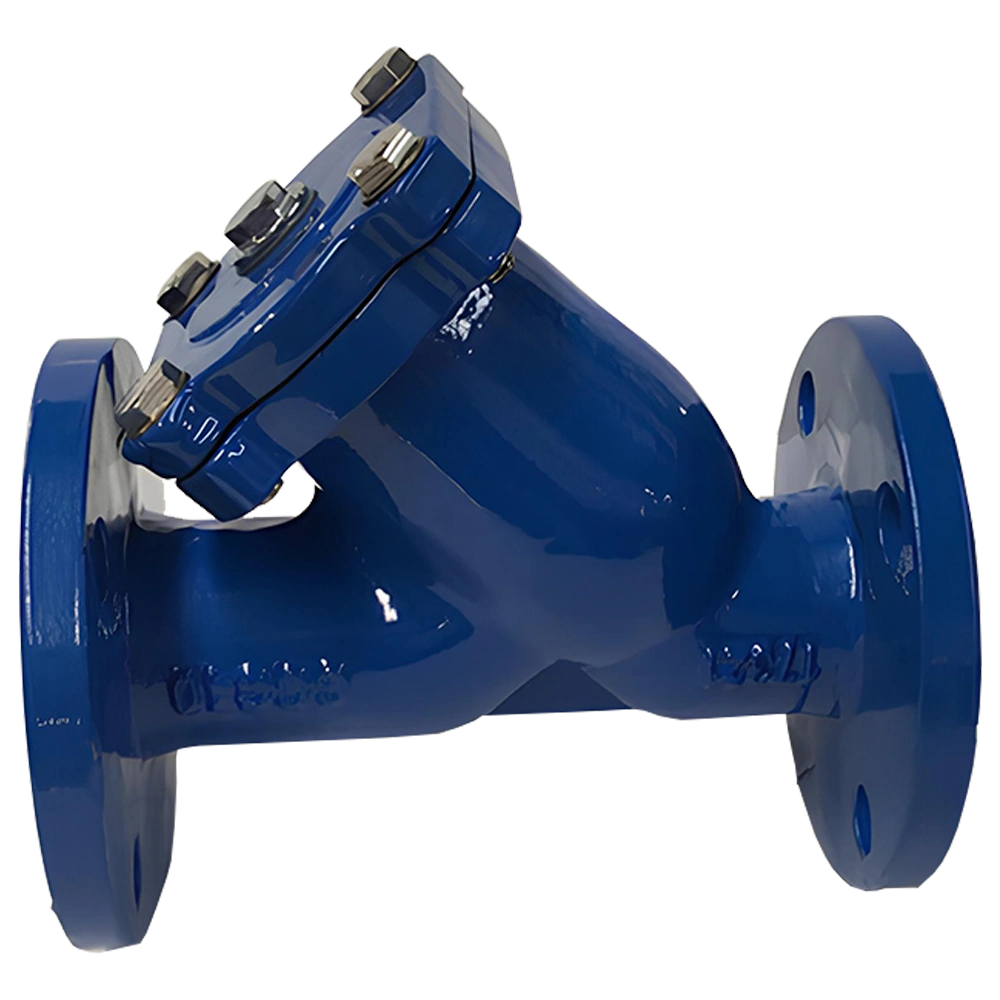

Manufactured to perform reliably under various temperature and pressure conditions, the cast iron Y Strainer and cast steel Y Strainer options are widely used in water, air, gas, steam, and petroleum lines. For highly corrosive environments, stainless steel Y Strainer provides chemical resistance and robust construction that stands up to aggressive fluids. Where higher pressure ratings are necessary, the ANSI Class 600 Y Strainer variant delivers secure filtration without compromising flow rate or sealing integrity. In demanding chemical and marine applications, the Duplex Y Strainer offers excellent durability and strength against corrosion and stress.

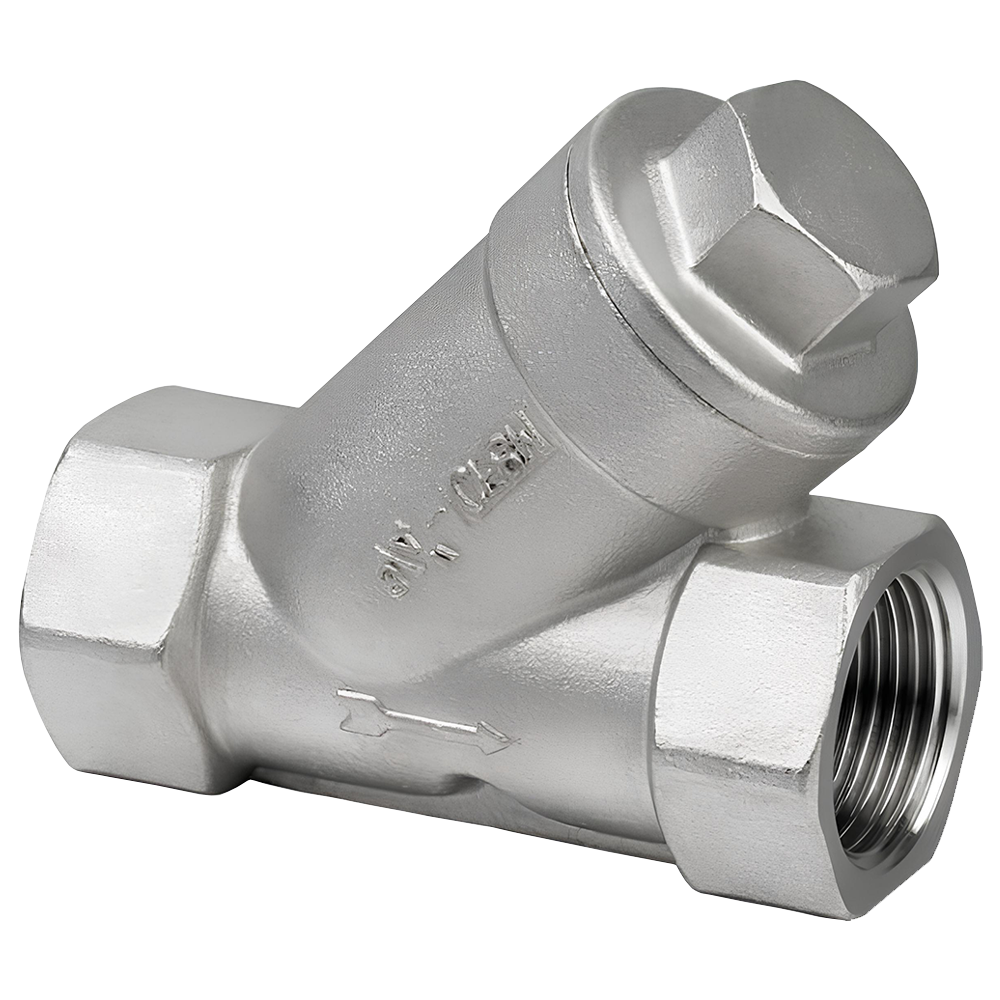

MVS Y Strainers are available in flanged, threaded, and socket-weld end connections, tailored for installation ease and minimal maintenance. Each unit is tested to ensure leak-tight performance, long service life, and compliance with relevant global quality standards.
Specification
| Specification | Details |
|---|---|
| Valve Type | Y‑Strainer, Wye Strainer Filter |
| Size Range | 1″– 12″ (DN 25–DN3600), Typical threaded, socket‑weld, flanged ends |
| Pressure Rating | ANSI 150#, ANSI 300# |
| Temperature Limit | Up to 800 °F (carbon steel), 1000 °F (stainless) |
| Standards Compliance | ASME B16.34, API 598 leak-tested, As per manufacturer standard |
| Screen Options | Stainless steel perforated/mesh; 40–mesh typical; cleanable via cover or blow-down |
| Orientation | Horizontal or vertical (screen leg down) |
| Cover | Screwed or bolted with gasket; blow-down port optional |
| Media | Steam, water, gas, oil, HVAC fluids, chemicals |
Material of Construction
| Body & Cover | Carbon Steel (WCB), 304/316 SS | Bronze, CF8M SS, Hastelloy C‑276, Duplex |
| Screen | Stainless Steel TIG‑welded perforated or mesh | Customized mesh, high-temp alloys |
| Gaskets & Seals | NBR/EPDM, spiral‑wound SS/PTFE for high-temp | Graphite, Viton, FKM |
| Fasteners | Carbon steel or 304 SS bolts/nuts | 316 SS, alloy steel, duplex bolts |
| Blow‑down Port | Threaded BSP or NPT plug | Full port socket-weld with valve |
| Coating | Epoxy powder (carbon/iron) | PFA/PTFE lining for corrosive fluids |
Application Industries
Crude Oil & Natural Gas Industry
Chemical & Petrochemical Industry
Water & Wastewater Treatment
Nuclear & Thermal Power Generation
Food & Beverage Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Mining & Mineral Processing
Marine & Shipbuilding
HVAC & Building Services
Automotive & Paint Chemical Manufacturing
Environmental & Bio Gas Renewable Energy
Steel & Metal Processing
Fertilizer Plants, Polymer Production
Cosmetics & Personal Care
Cement & Construction
Chlor-Alkali Industry
Mineral Acids Industry
Related Valves
Exporting Reliable Valve Solutions Across Continents
Australia | Argentina | Austria | Bahrain | Belgium | Bulgaria | Canada | Chile | China | Colombia | Czech Republic | Denmark | Egypt | Finland | France | Germany | Greece | Hong Kong | Hungary | Indonesia | Iran | Ireland | Israel | Italy | Japan | Jordan | Kuwait | Korea | Saudi Arabia (KSA) | Lebanon | Lithuania | Malaysia | Mexico | Netherlands | New Zealand | Nigeria | Norway | Oman | Peru | Philippines | Poland | Portugal | Puerto Rico | Qatar | Romania | Russia | Serbia | South Africa | South Korea | Spain | Sweden | Switzerland | Syria | Taiwan | Thailand | Turkey | Ukraine | United Arab Emirates (UAE) | United Kingdom (UK) | United States of America (USA) | Venezuela | Vietnam | Yemen | Zambia
Y Strainer
Frequently Asked Questions
Can’t find your duty condition here? Send us the media, size, pressure and temperature and we will specify the valve. Contact us
What is a Y strainer and how does it work?
A pipeline filter whose screen sits in a branch angled off the main bore, which gives the body its Y shape. Flow passes through the perforated or mesh screen, which traps scale, weld slag, rust and debris before they reach a pump, control valve, meter or nozzle downstream. The angled leg collects what it catches and can be blown down or unbolted for cleaning without dismantling the line.
Which body and screen materials are available?
Body and cover in Carbon Steel (WCB) or 304/316 stainless, with bronze, CF8M, Hastelloy C-276 and duplex on request. Screens in stainless perforated sheet or wire mesh, with the grade chosen for the duty. For corrosive service, lined versions are available as the PTFE Lined Y Strainer and PTFE Lined Basket Strainer Filter.
What size, end connections and pressure rating apply?
1″ to 12″ (DN 25 – DN 300) at ANSI 150# and ANSI 300#, with threaded, socket-weld or flanged ends. Larger sizes and higher classes are available on request. MVS is ISO 9001:2015 certified and supplies test certificates with each order.
How do I choose the mesh size and know when to clean it?
Work back from what you are protecting: pumps and general service usually need coarse perforation, while control valves, flow meters and nozzles need fine mesh matched to their smallest clearance. Finer is not automatically better — too fine blinds quickly, raises pressure drop and can collapse under differential. For cleaning, watch the differential pressure across the strainer; a rising drop is the only reliable indicator, which is why permanent installations carry gauges either side.
Are you a manufacturer, and what are your minimum order quantity and customization options?
MVS manufactures at its own works — since 1978, ISO 9001:2015 certified — and exports across several continents. The minimum order quantity is 20 pieces. Special mesh grades, Hastelloy and duplex bodies, blowdown connections and non-standard sizes are built to order.
